Outdoor DC UPS Power System Case Studies

Case 1 :

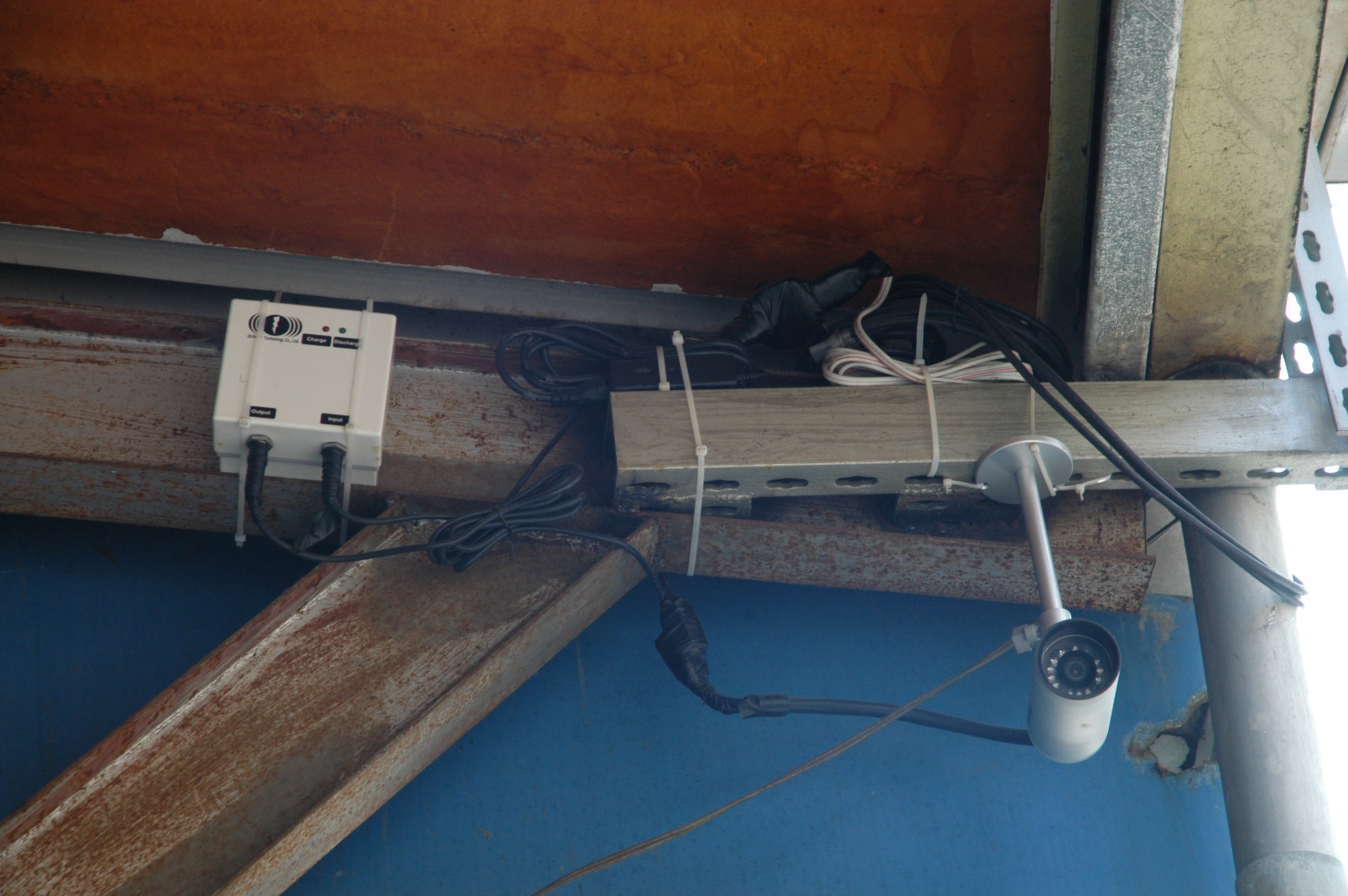

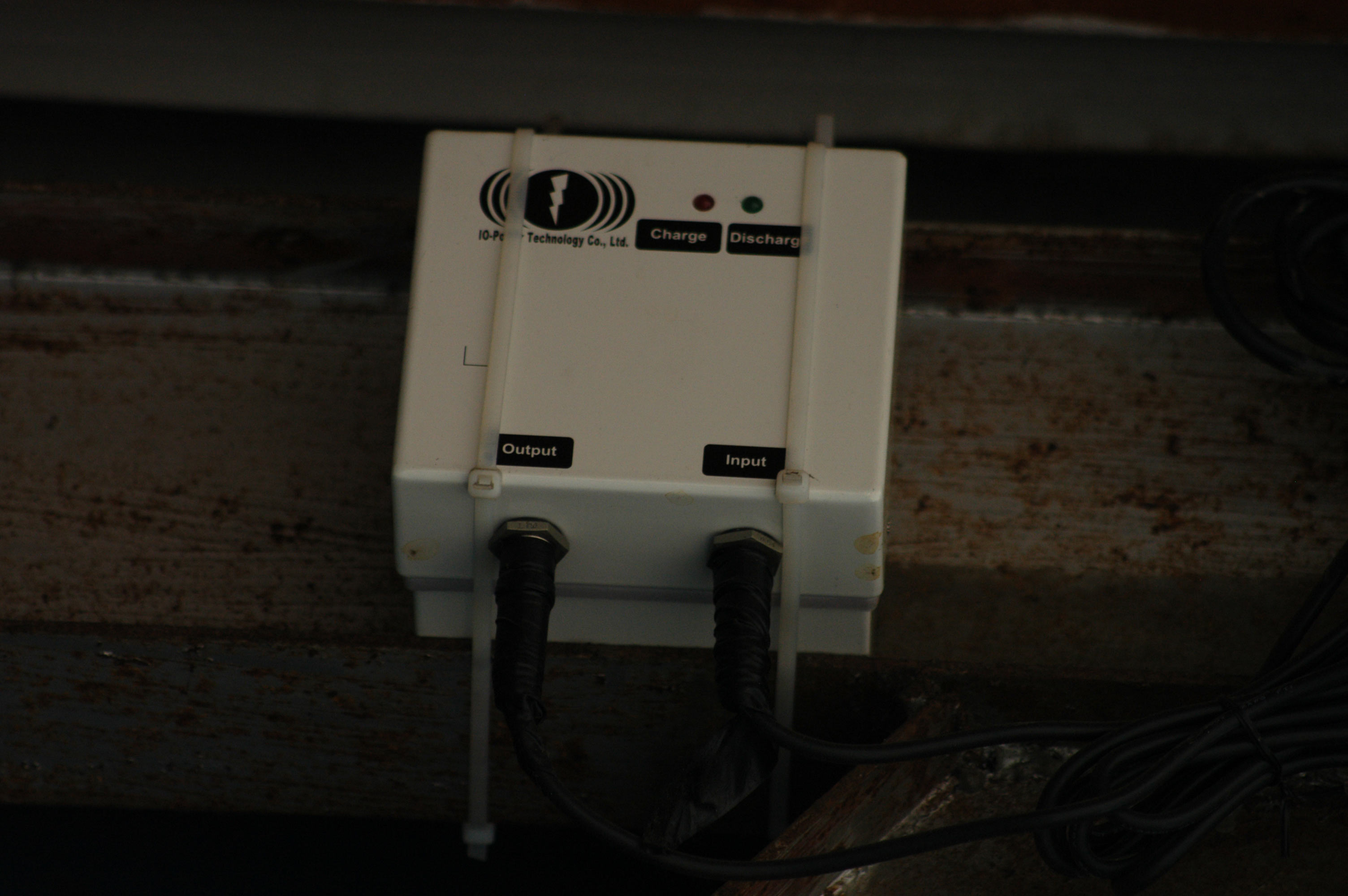

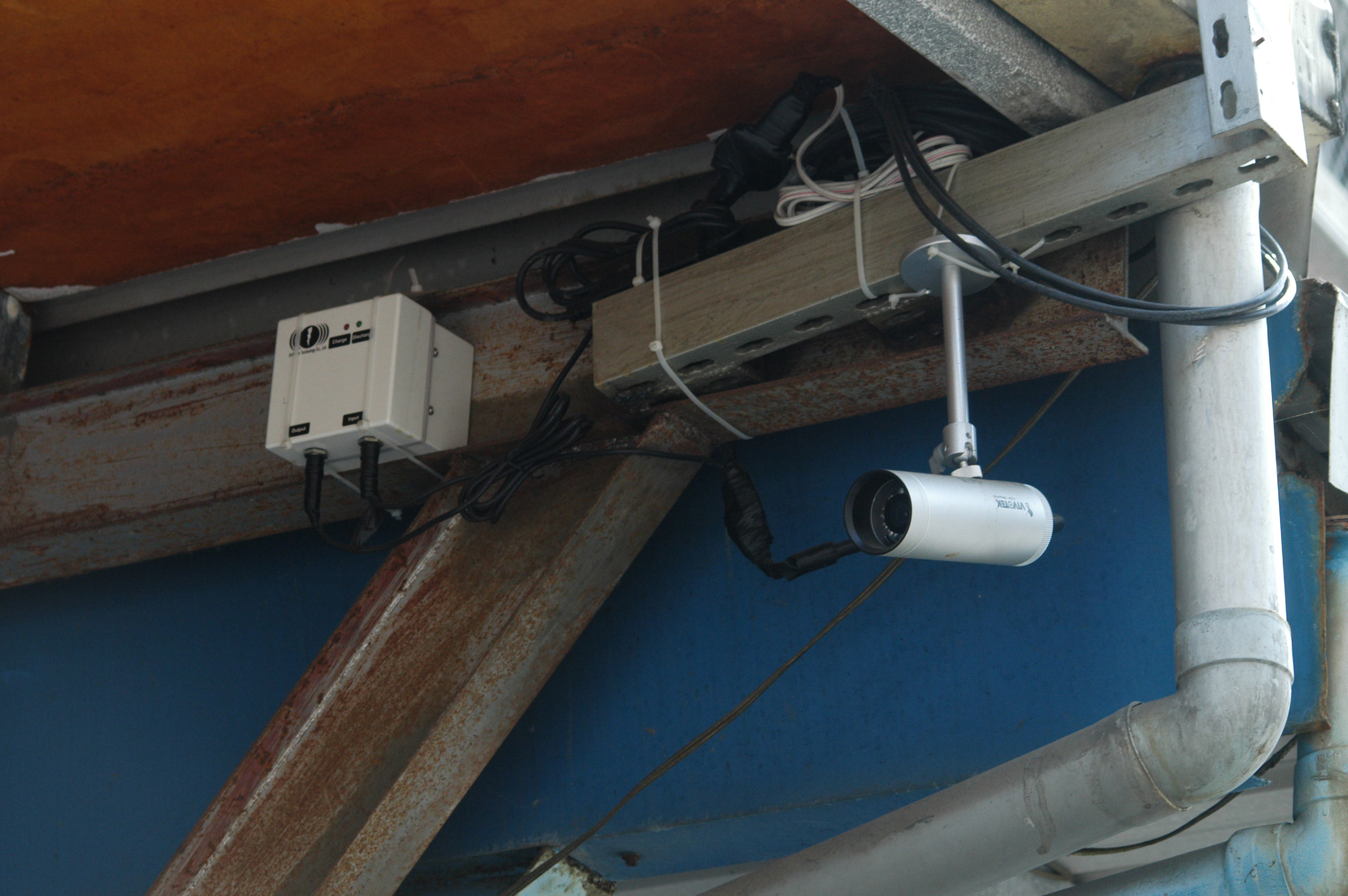

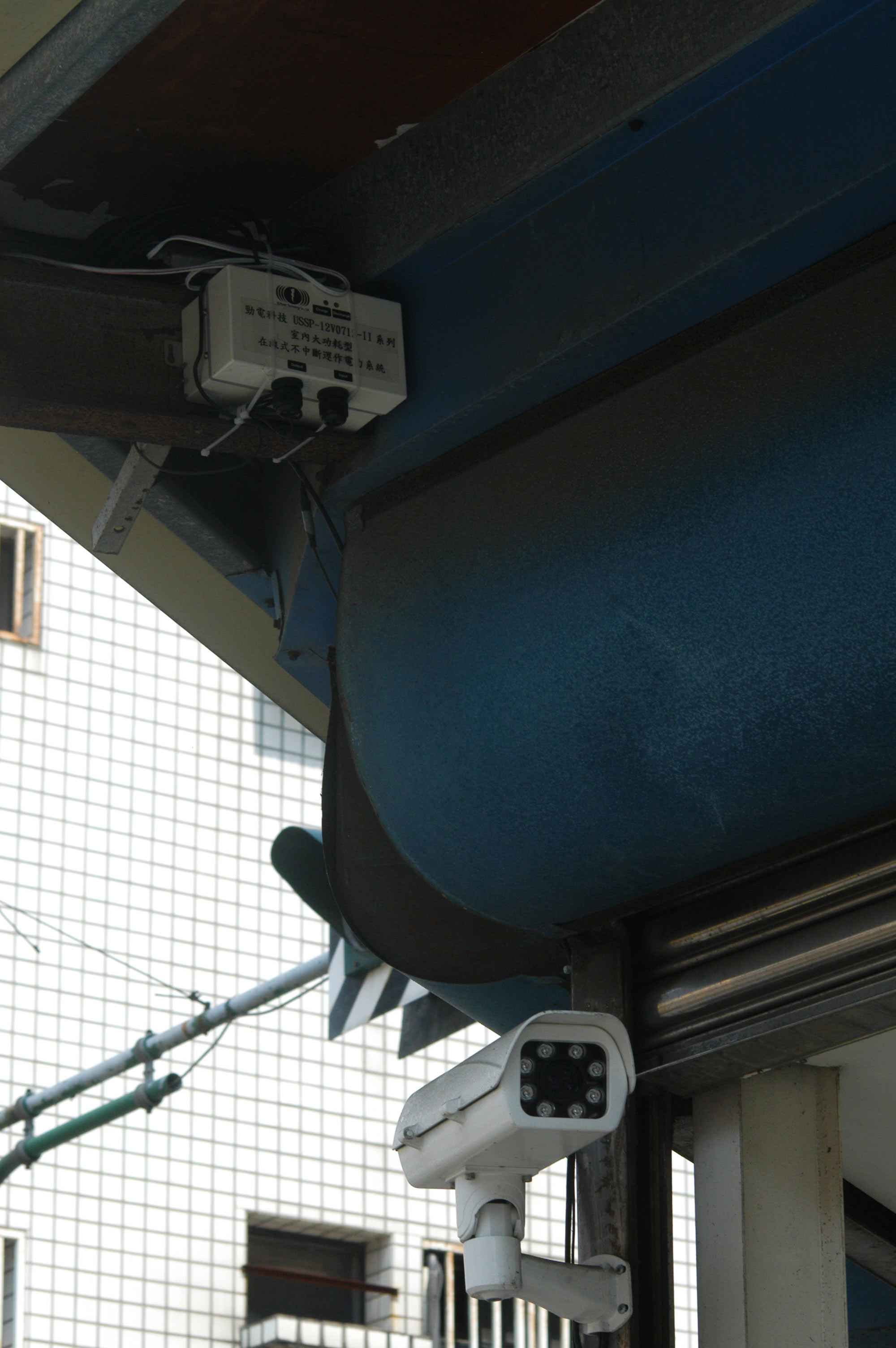

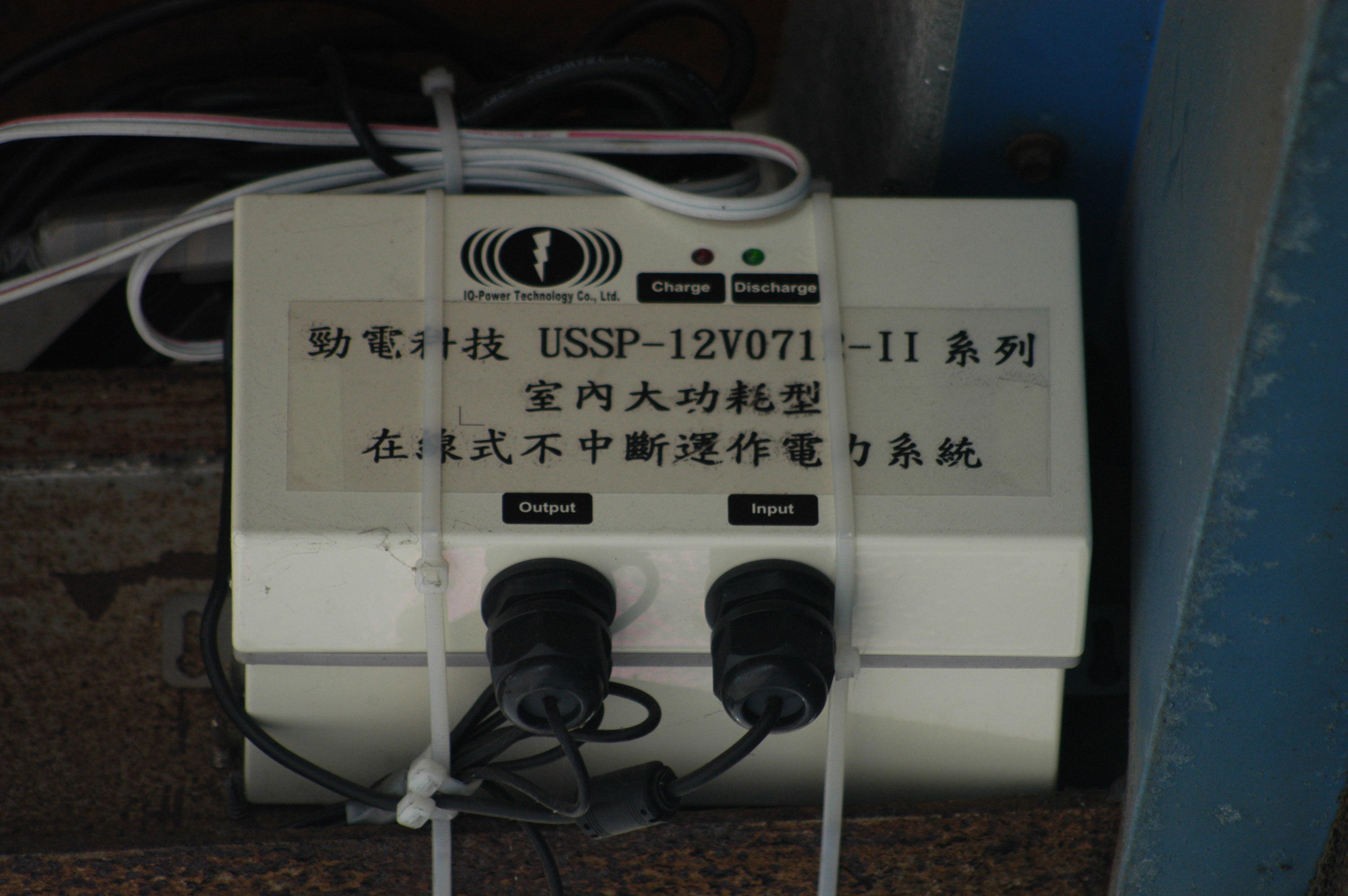

Set up IOP-USSP-1204-02B 55WH (4.3Ah @ 12.8V) for Outdoor IR IP Camera to response the 8-hour blackout without disruption to operation power demand





Case 2 :

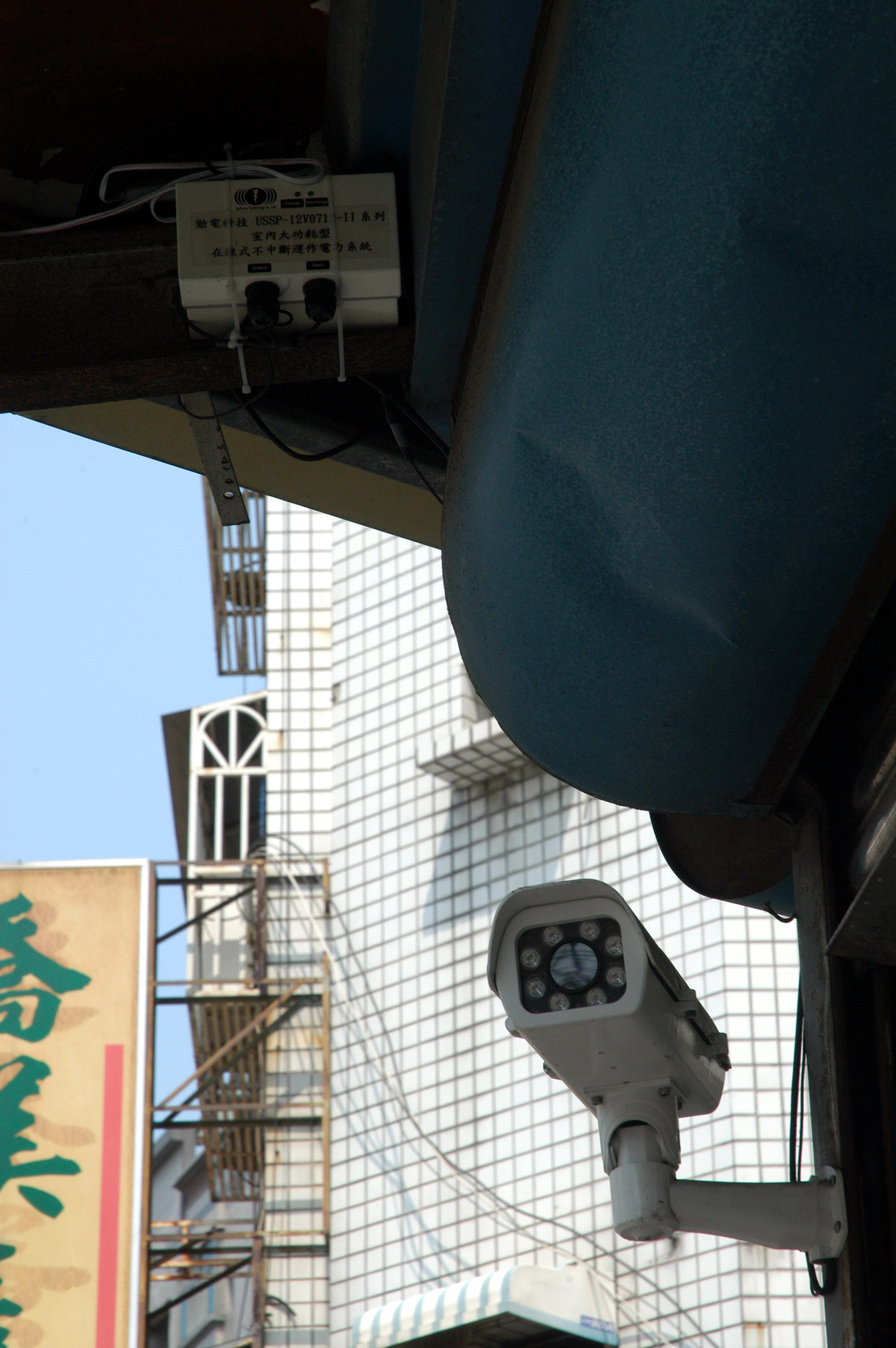

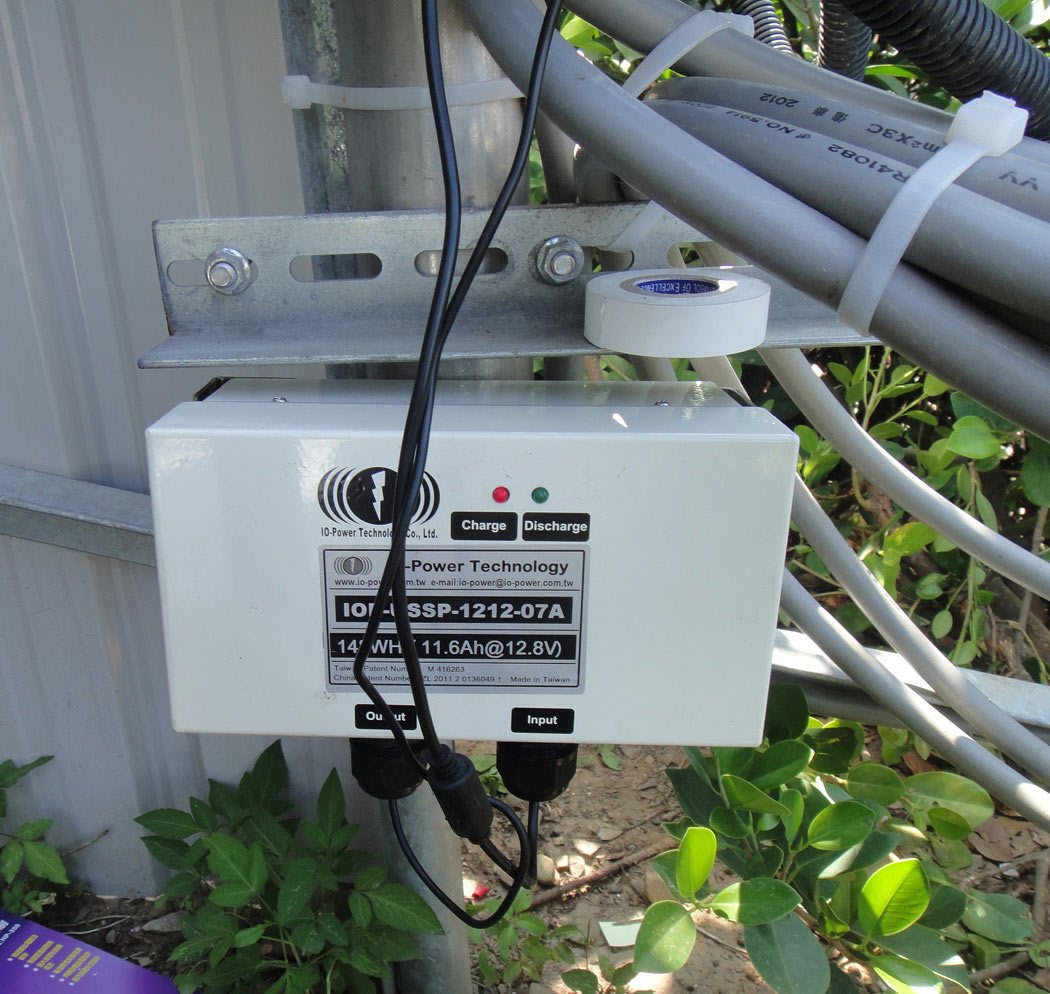

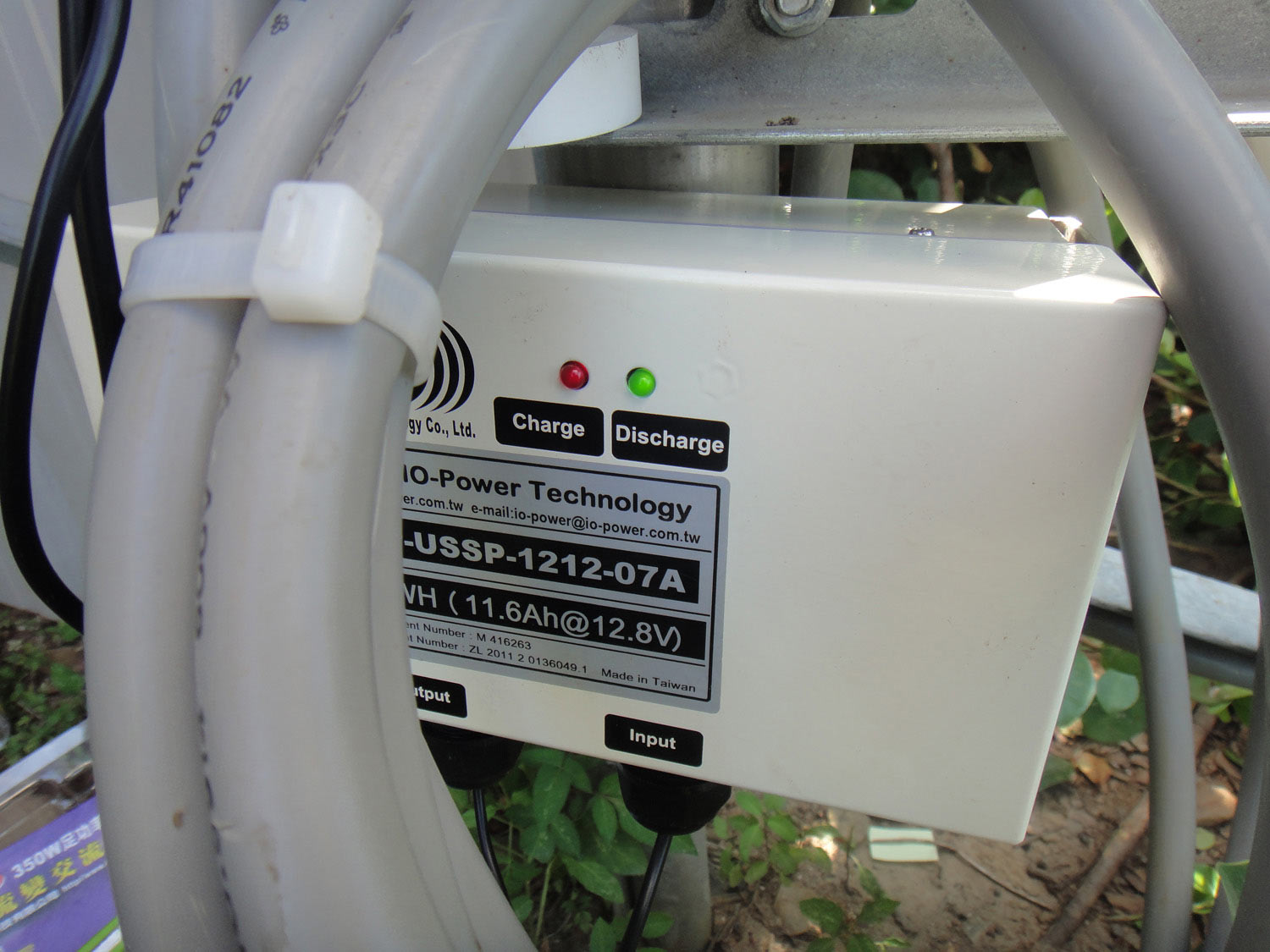

Set up IOP-USSP-1212-07A 148WH (11.6Ah @ 12.8V) for Outdoor IR-50m Housing with Fan & IP Camera to response the 12-hour blackout without disruption to operation power demand





Case 3 :

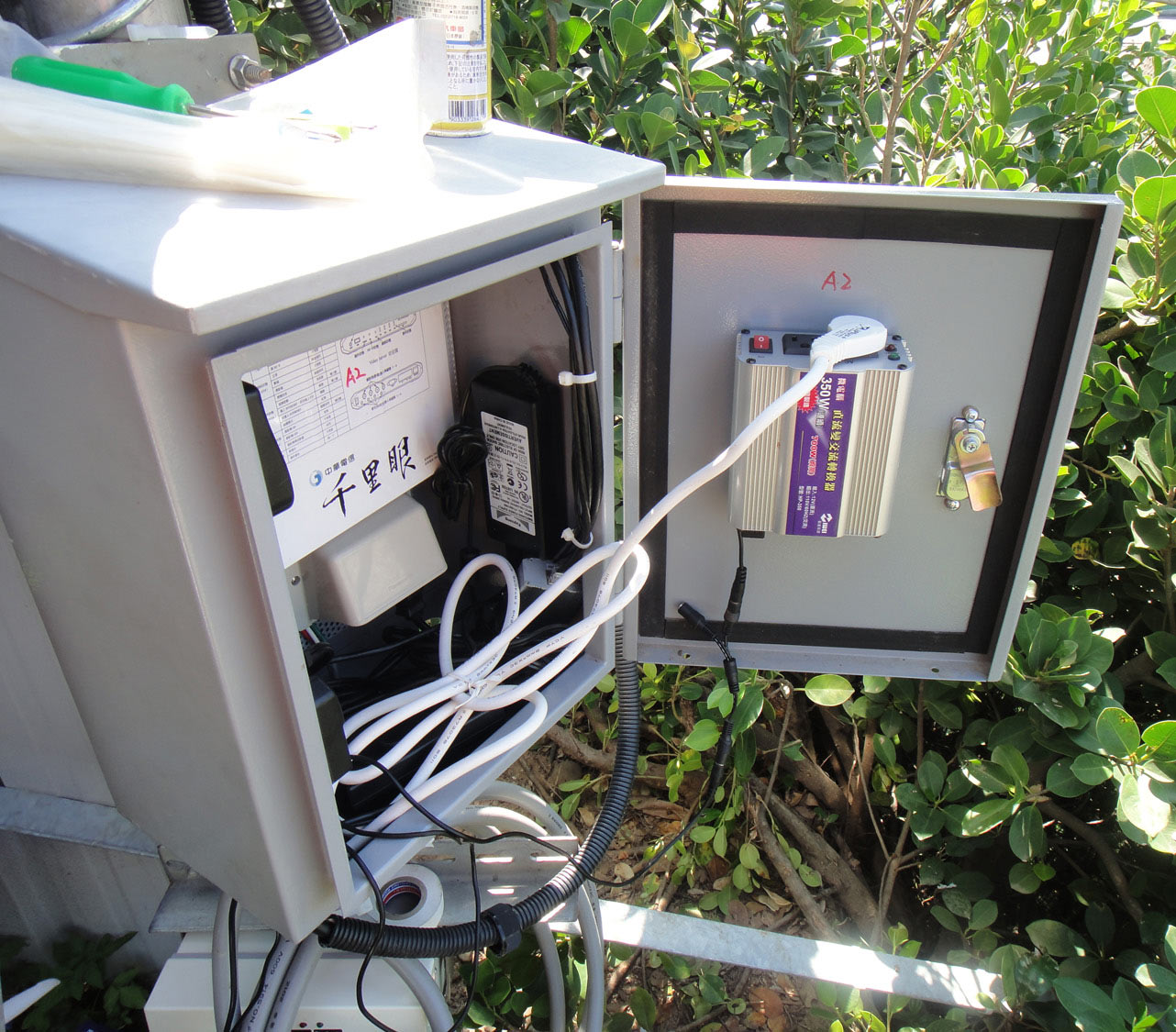

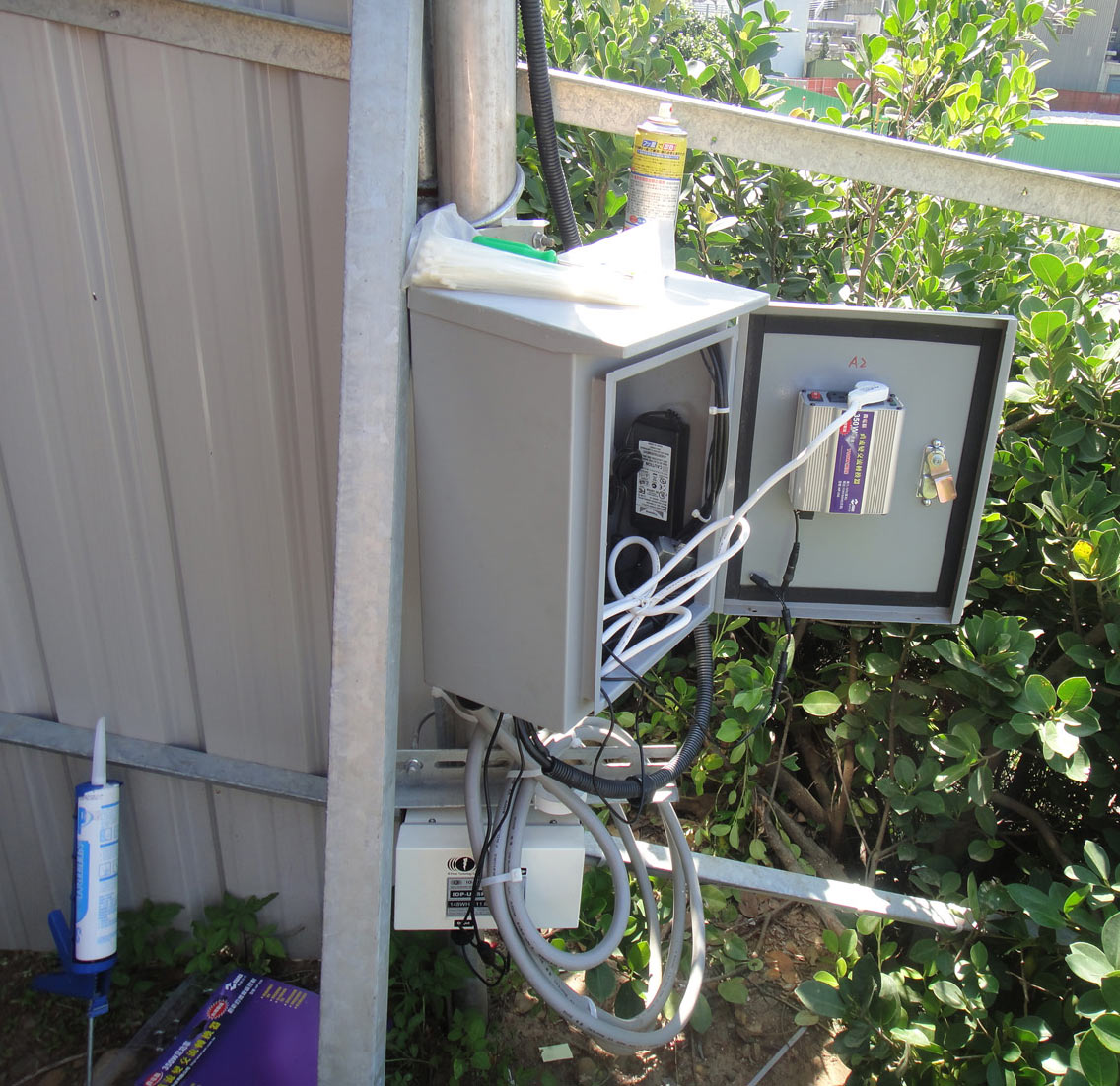

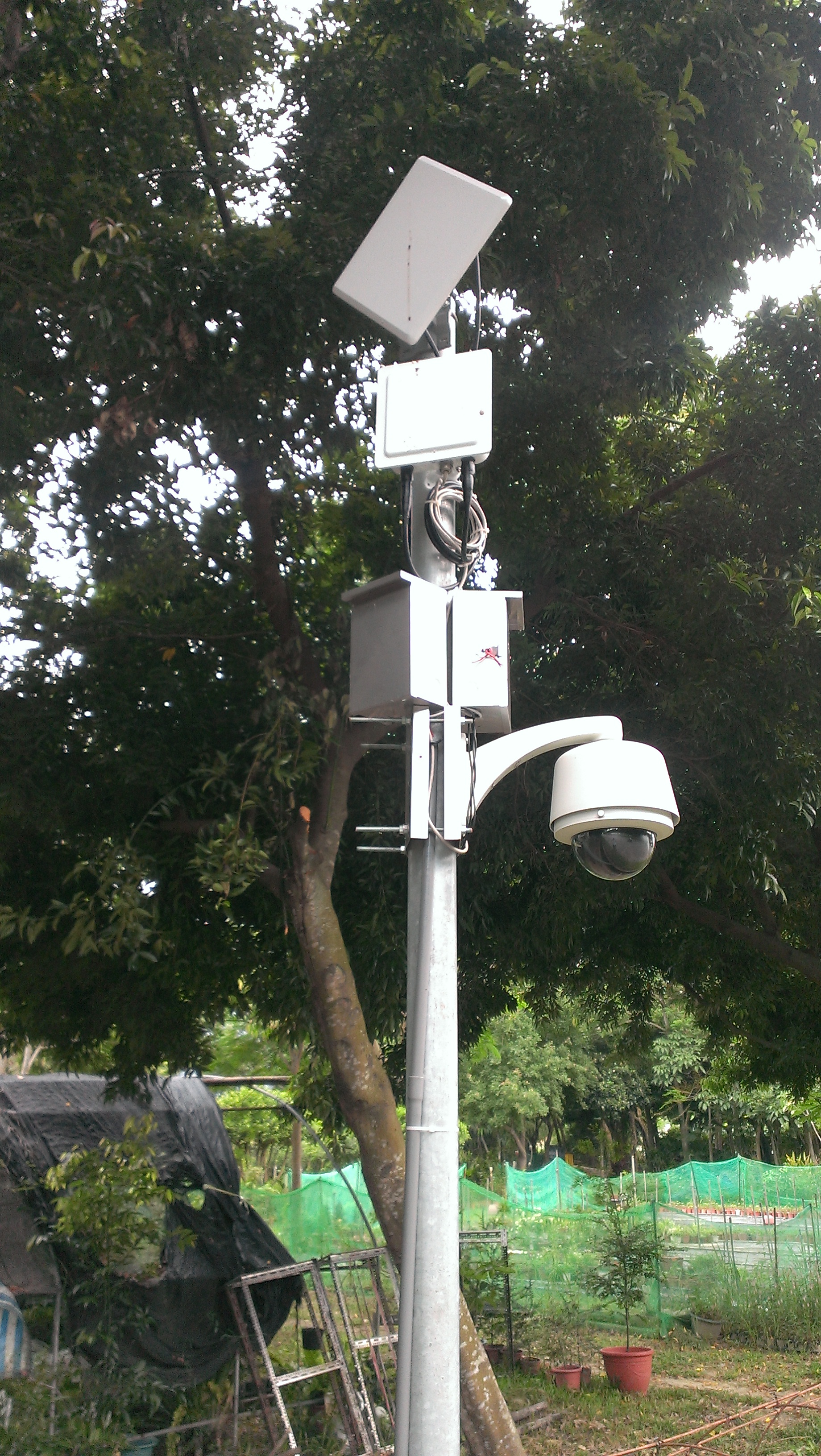

Set up IOP-USSP-1212-07A 148WH (11.6Ah @ 12.8V) for IR-70m Projector  & Speed Dome & Outdoor MIMO 101R-AP & Video Server to response the 3.5~4-hour blackout without disruption to operation power demand Through 12VDC to 110VAC Power Inverter

1. APM-101R- 8WH
2. Speed Dome - 9WH
3.IR Projector 70M - 9WH
4.Video Server - 4WH
5.DC to AC Inverter - 4WH

Total : 32WH
32WH*3.5H*135%= 145W
(For 3 Years *105% & DC exchange AC effect down 25%)



Case 4 :

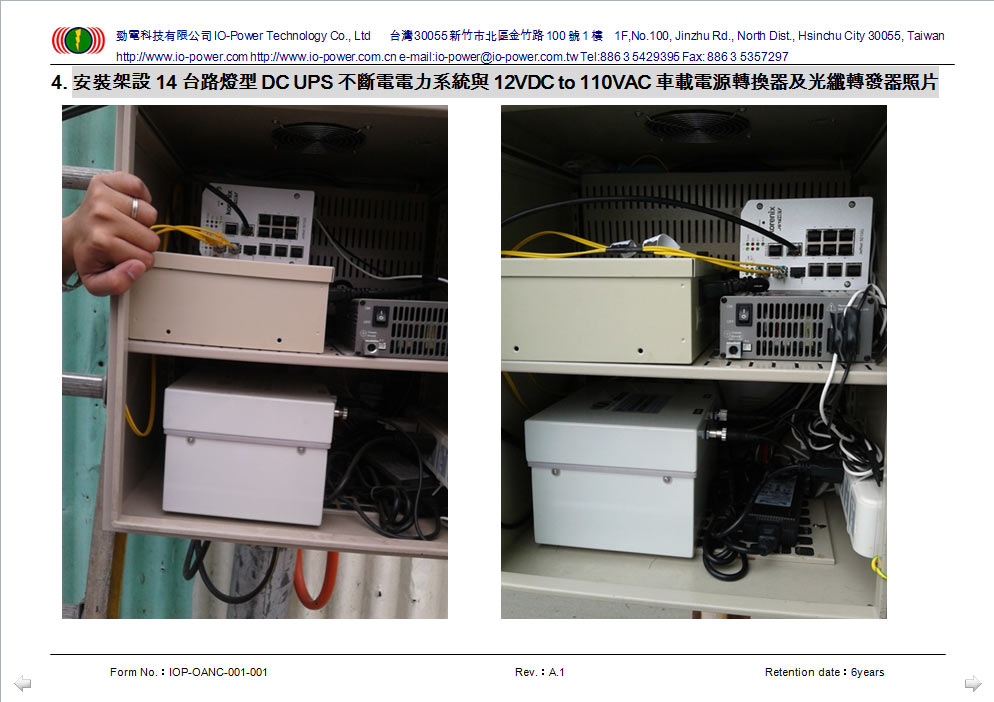

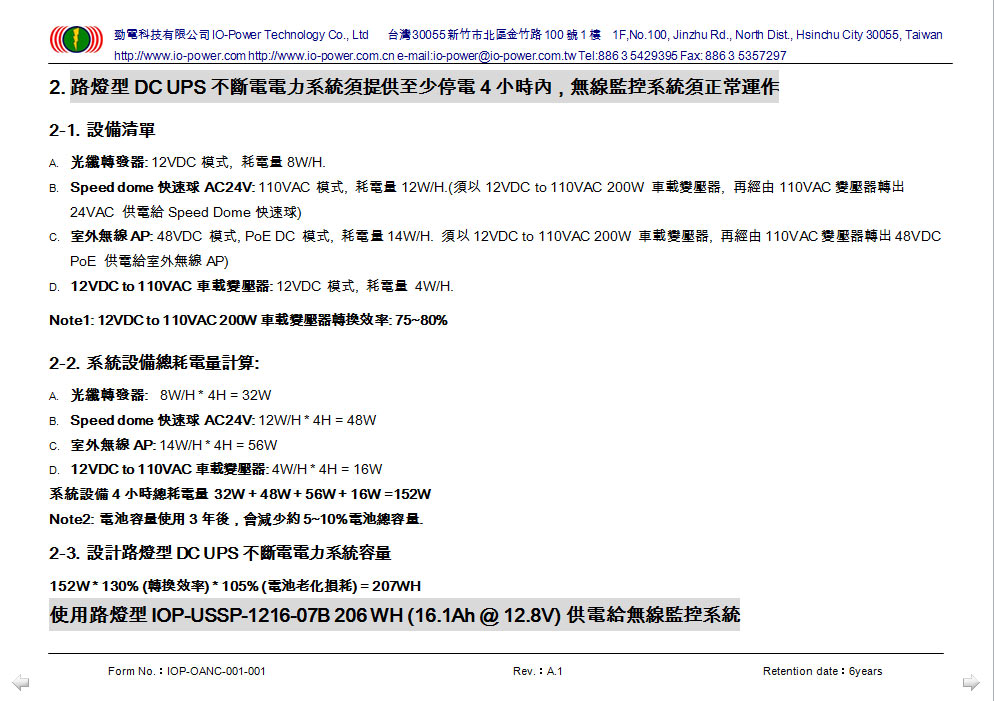

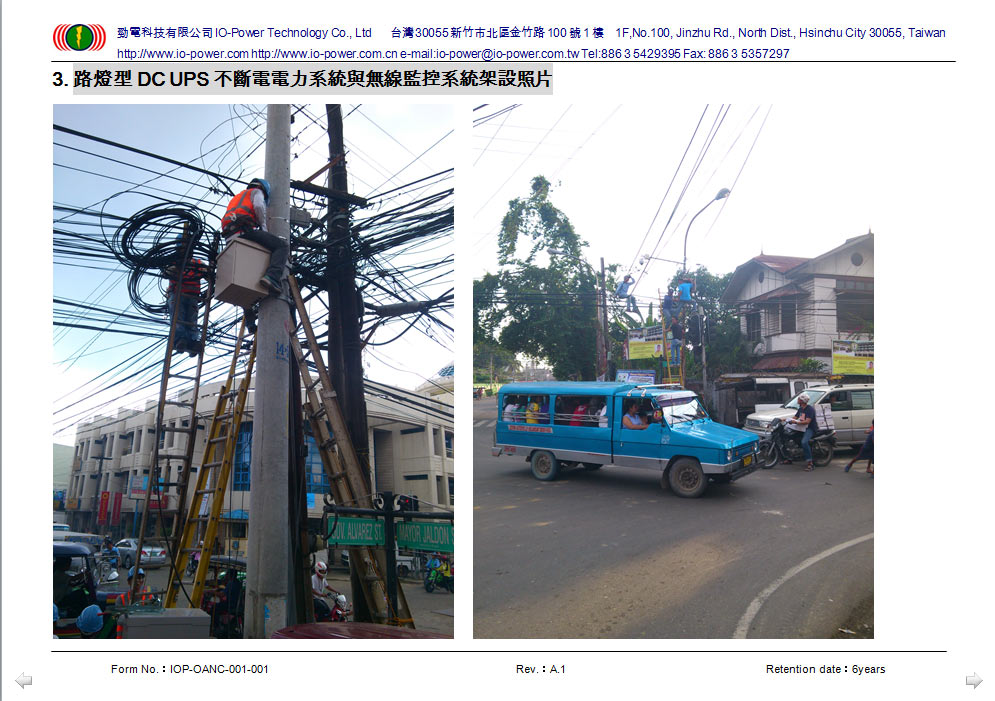

Set up IOP-USSP-1216-07B 206 WH (16.1Ah @ 12.8V) for Optical transponder & Speed Dome & Outdoor Wireless AP & 12VDC to 110VAC Power Converter to response the 4hrs blackout without disruption to operation power demand Through 12VDC to 110VAC Power Inverter

Case 5 :

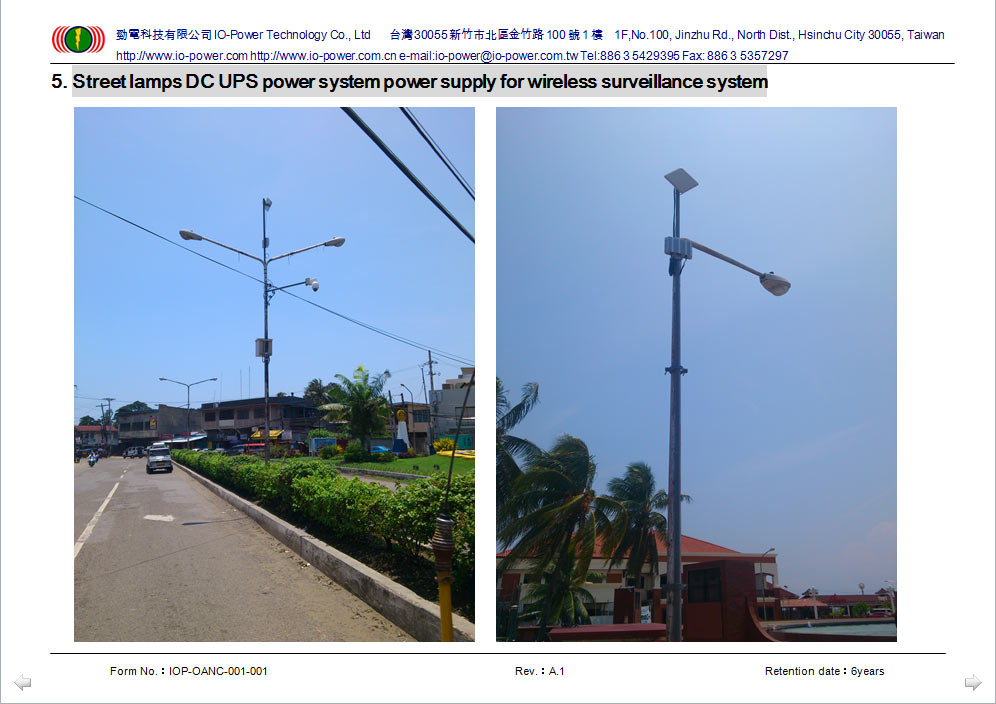

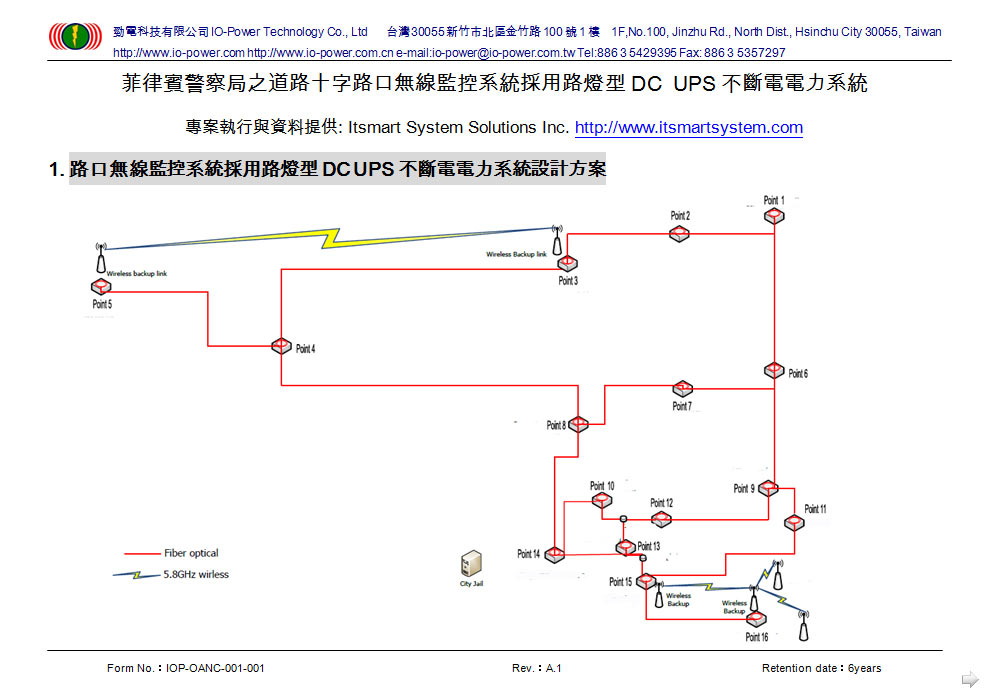

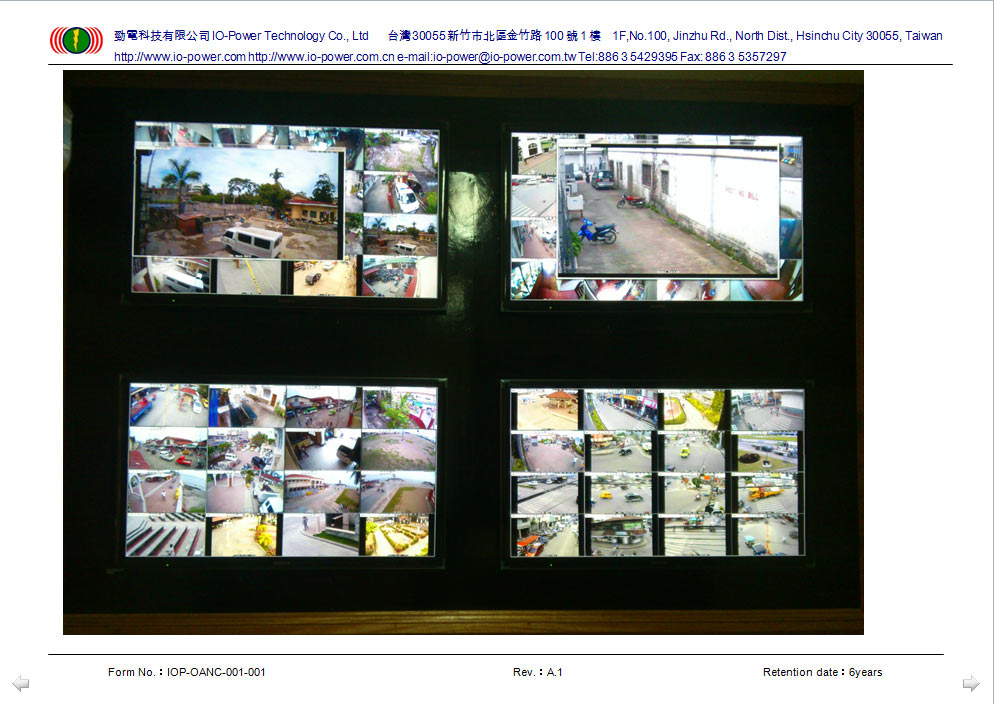

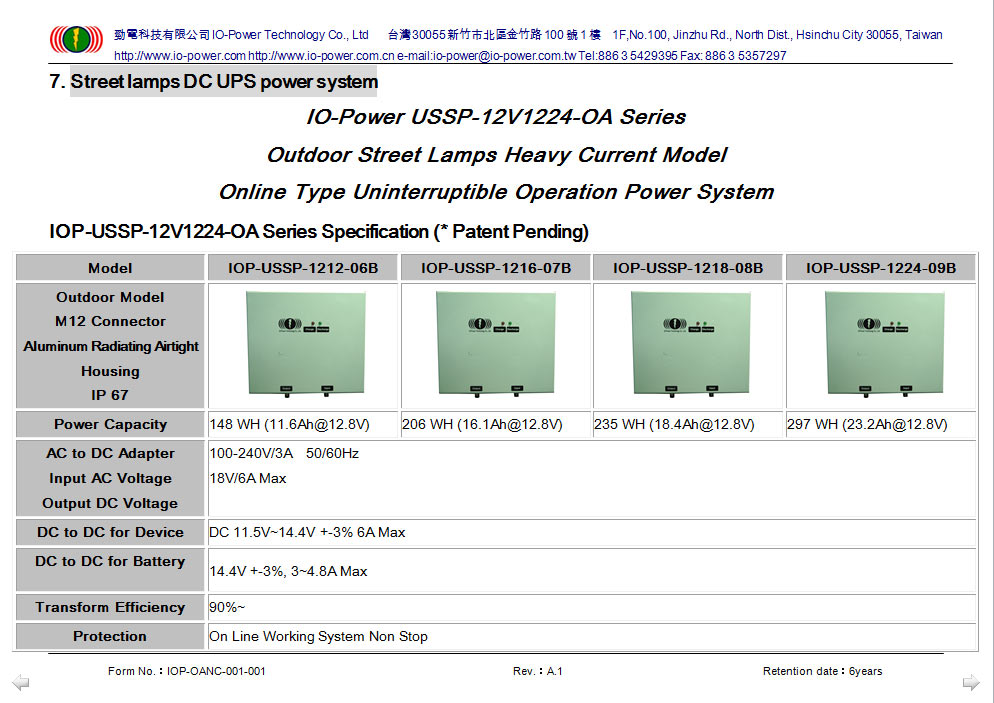

IO-Power Street Lamp DC UPS Installation at Brunei Highway

Set up IOP-USSP-1247-10B 594 WH (46.4Ah @ 12.8V) on18hrs Street Lamps DC UPS Power Supply for Outdoor Wireless AP & IR IP Cam*2 & 12VDC to 110VAC Power Converter



Case 6 :

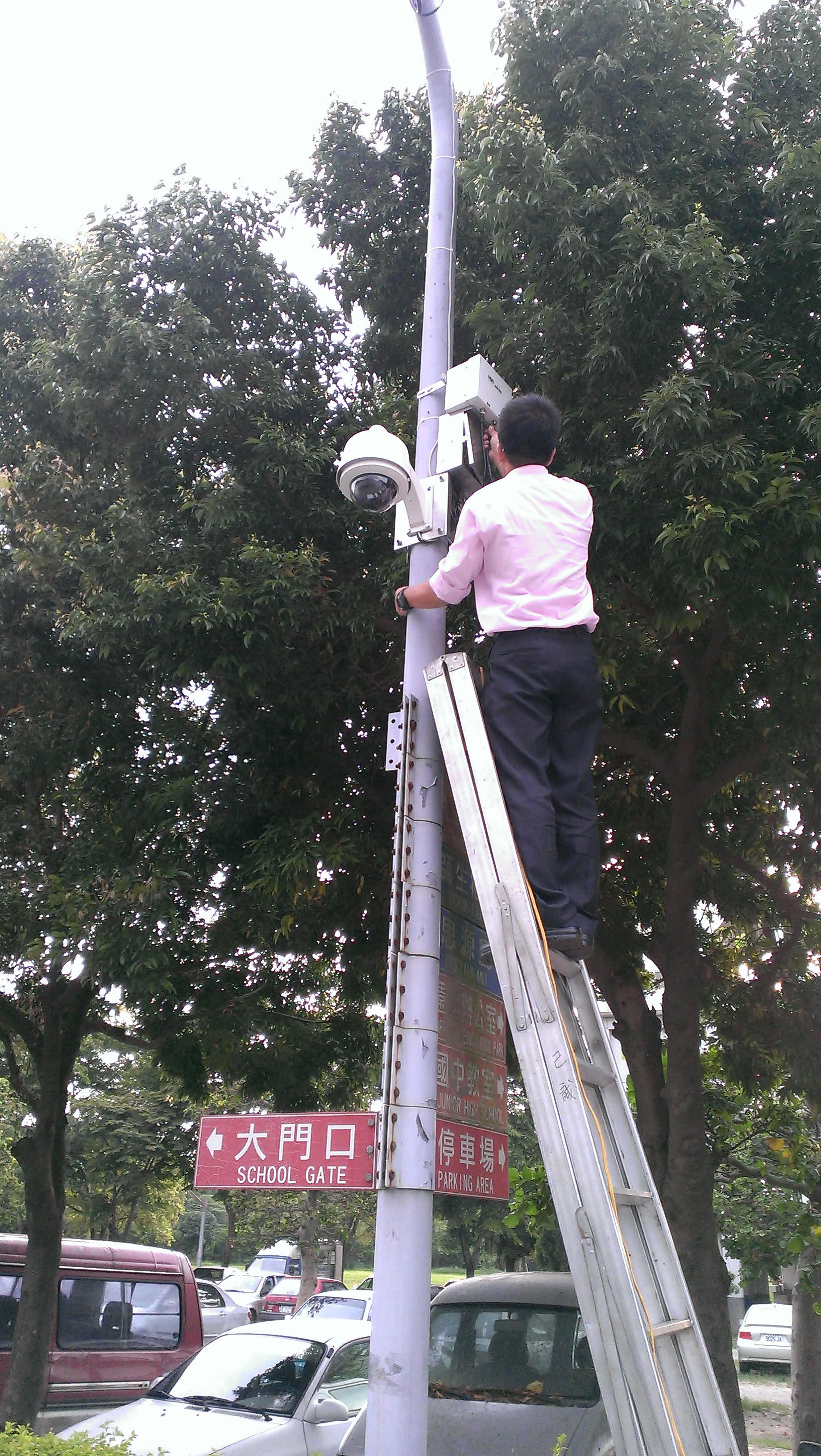

IO-Power Street Lamps DC UPS Installation at College School

Set up IOP-USSP-1223-09B 297 WH (23.2Ah @ 12.8V) on18hrs Street Lamps DC UPS Power Supply for Outdoor Wireless AP & IP Speed Dome & 12V to 48V DC PoE Power Converter





Case 7 :

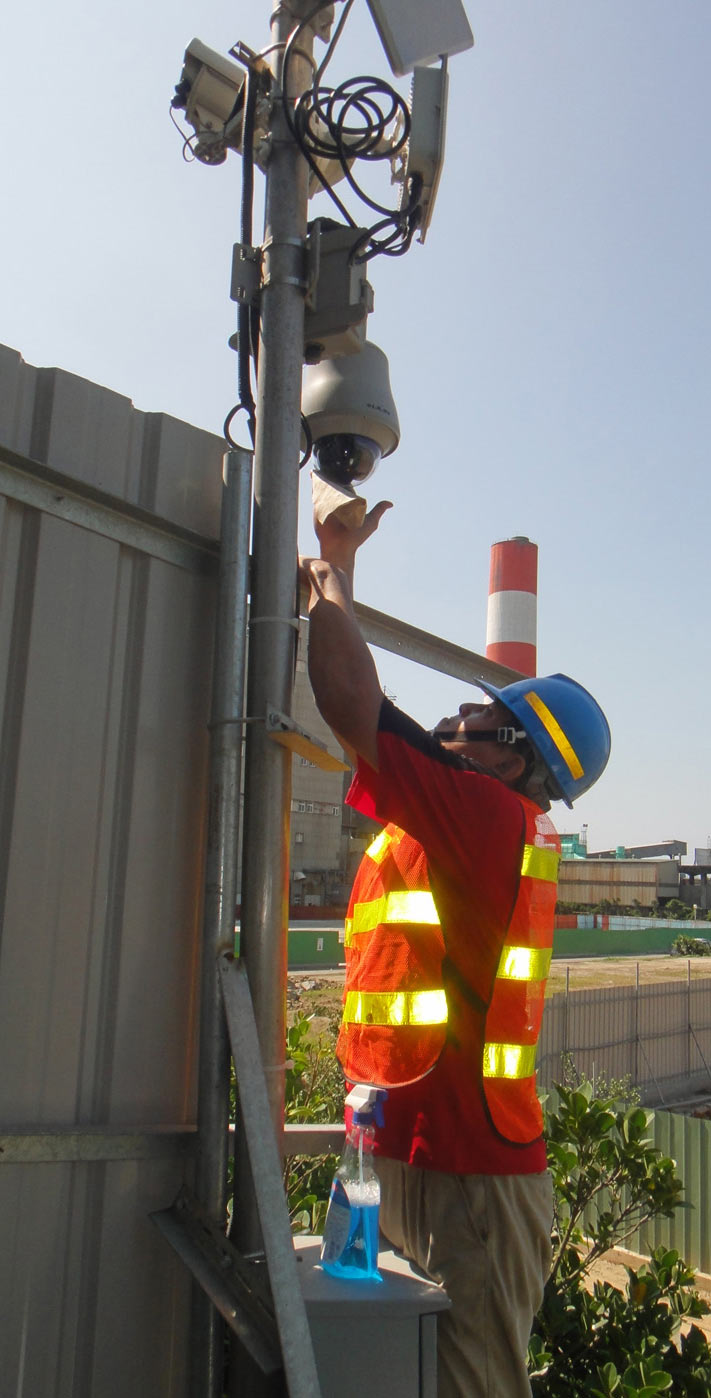

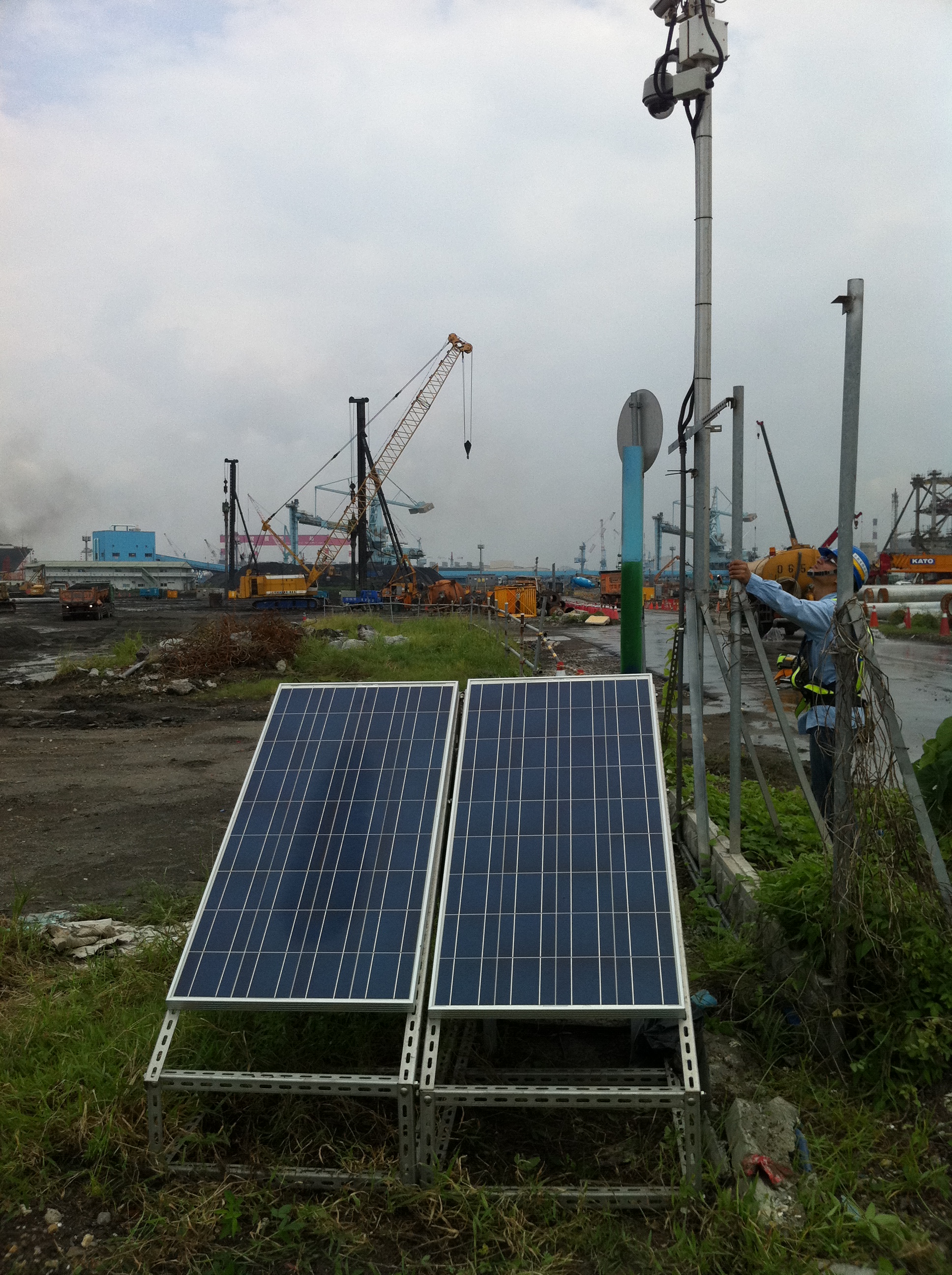

IO-Power Solar DC UPS Installation at Power Plant

Set up IOP-USSS-1256-10B 717 WH (56Ah @ 12.8V) on 2Days 48Hrs Solar DC UPS Power Supply for Outdoor Wireless AP & IP Speed Dome & 12V to 48V DC PoE Power Converter
