Automobile DC UPS Power System Temp Test Report

Special Description 1: Automobile internal by too Sun penetrating sunshine and car is confined does not ventilation environment, so will produced sunshine warming effect, in outdoor temperature up to 36 °C, car within temperature by long time sunshine warming, car within will up to 60~65 °C, Sunshine direct location will up to 65~70 °C around, but as long as Sun sunshine no irradiation to of location, temperature will slightly below car within temperature about up 55~63 °C around.

Special description 2: IO-Power USMC-12V0712-II series online type does not interrupted operation power system, due to should car within environment of special high temperature requirements, used resistance high temperature roast paint package covered metal shell, in outdoor temperature up to 36 °C, car within temperature by long time sunshine warming, car within will up to 60~65 °C, in Sunshine direct products shell surface situation, shell surface temperature about 65 °C, shell within temperature about 55~58 °C, C-LiFePO4 Lithium Batteries temperature about 50~55 °C ; IOP-USMC-12V0712-II products, AM 10:00~ PM 4:00 under sunshine temperature test for a long time in the morning, all features of normal operation and provide stable DC 11.5V~14.4V+-3% power to the cameras inside and outside the normal operation of the car.



Outdoor DC UPS Power System Output 12VDC Transmit Distance Test

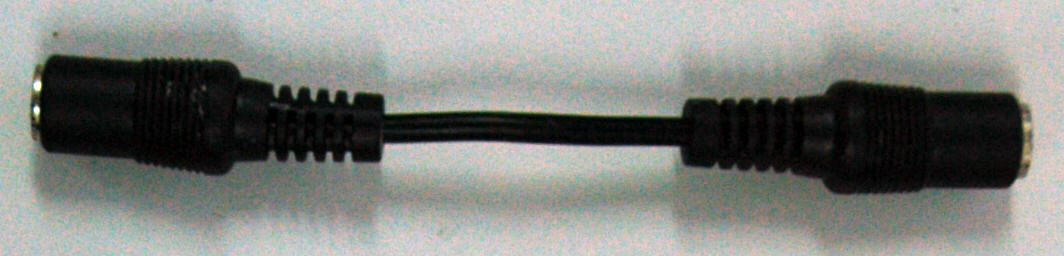

  + x12 = 20 meter

Test 1 : Non Charging Output Power Voltage 13.20V ----20 meter ---->13.19V

DC 13.19V Power Supply for IP Camera working test OK (Pass)

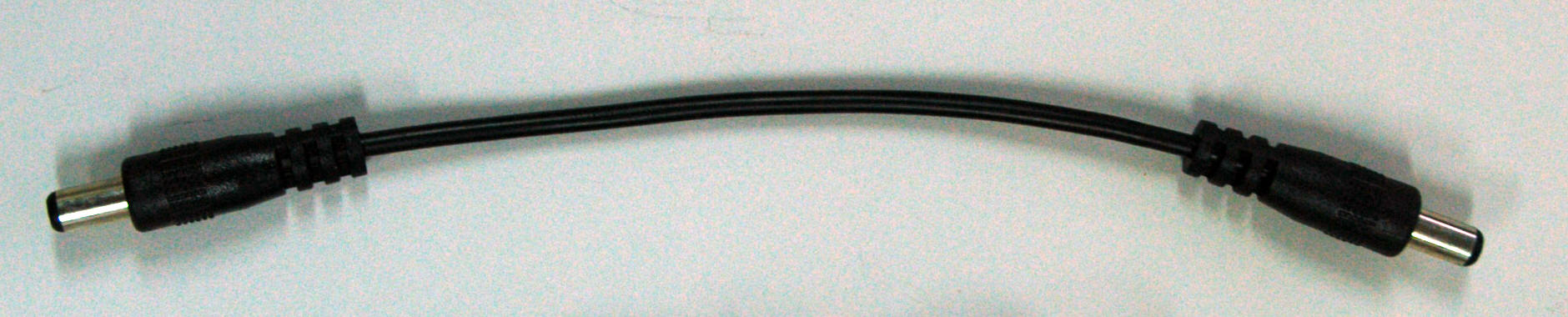

+ x22 = 38 meter

Test 2 : Non Charging Output Power Voltage 13.30V ----38 meter ---->13.26V

( 13.30V ---->20 meter @13.29V---->38 meter @13.26V )

DC 13.26V Power Supply for IP Camera working test OK (Pass)



Indoor / Outdoor Long-term Model

Online Type Stability Voltage Uninterruptible Power System

12VDC Powered Distance Voltage Drop Test Report

No.

Battery Voltage

Test conditions

Distance

Transformers No Power Supply

Transformers Power Supply

Camera No Power Supply

Camera Power Supply

1.5M

47M

1.5+45
+0.5=47

55M

1.5+45
+1.5*5+1=55

63M

1.5+45
+1.5*10+1.5=63

71M

1.5+45
+1.5*15+2=71

Measuring Voltage

13.3V





13.3V

13.3V

13.29V

13.29V

13.28V

DC voltage difference distance less than the AC voltage difference from many (Consistent with the theory of electricity)

Measuring Voltage

13.2V





13.05V

12.44V

12.12V

11.74V

11.46V

Camera Operation











OK

OK

OK

OK

OK

Thread number not included in voltage reduction assessments

Measuring Voltage

13.2V





13.06V

12.5V

12.23V

11.9V

11.52V

Camera Operation











OK

OK

OK

OK

OK

Recommended 1:12VDC power supply within distance to 50M is good.
Recommended 2 distance after over 50M: 12VDC power supply, voltage after voltage drop is less than 12.3V, but because most of the cameras are operating within the range of 9V~16V, therefore can also be functioning properly.

 Download : 12VDC Powered Distance Voltage Drop Test Report file



Outdoor DC UPS Power System Output 12VDC for Multi Cameras Test

+

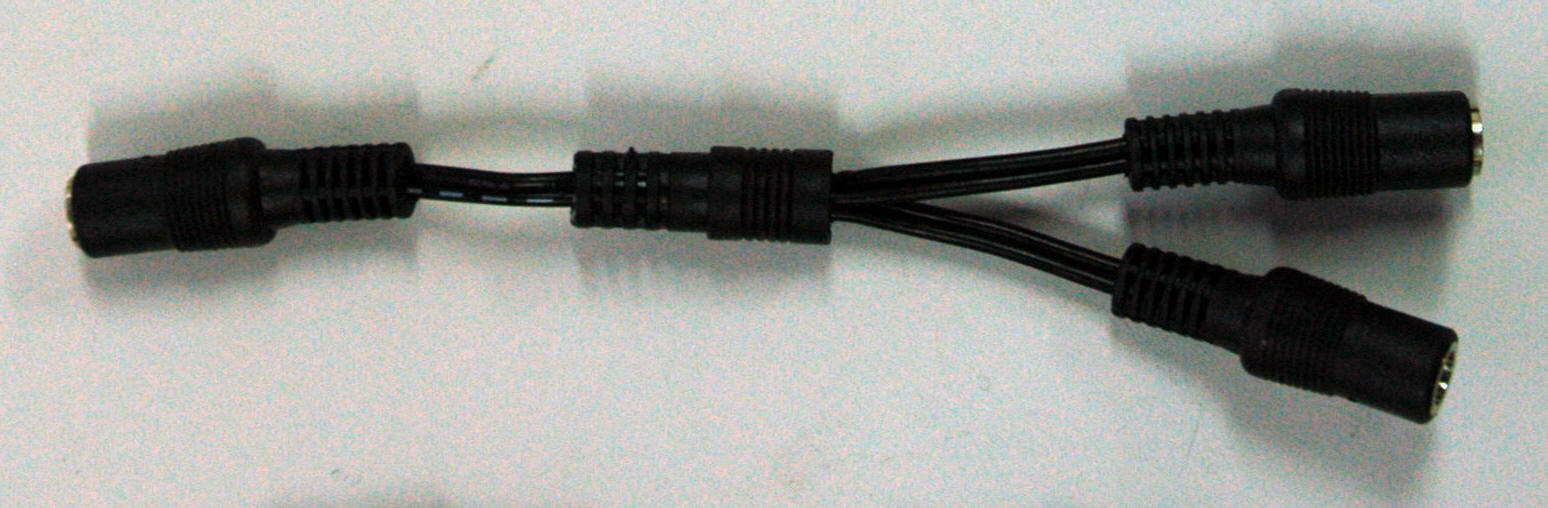

Power Supply for IP Camera * 4pcs working test OK (Pass)

               Suggest Power Supply for IP Camera * 2pcs Max (< 1.5~3A Max)

+

Power Supply for IP Camera * 6pcs working test OK (Pass)

               Suggest Power Supply for IP Camera * 4pcs Max (< 3A Max)

+

Power Supply for IP Camera * 10pcs working test OK (Pass)

               Suggest Power Supply for IP Camera * 8pcs Max (< 6A Max)

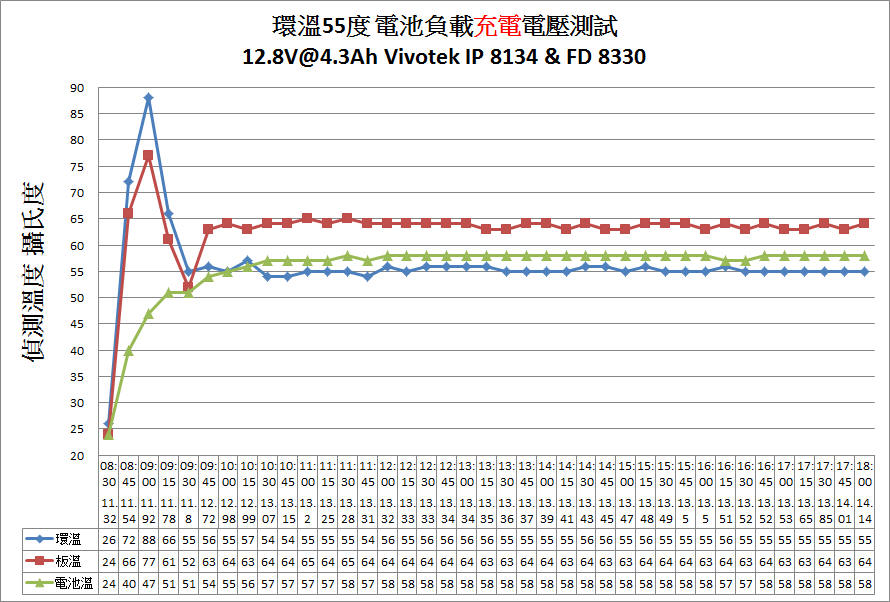

C-LiFePO4 Lithium Batteries High Temperature Charging Test Report

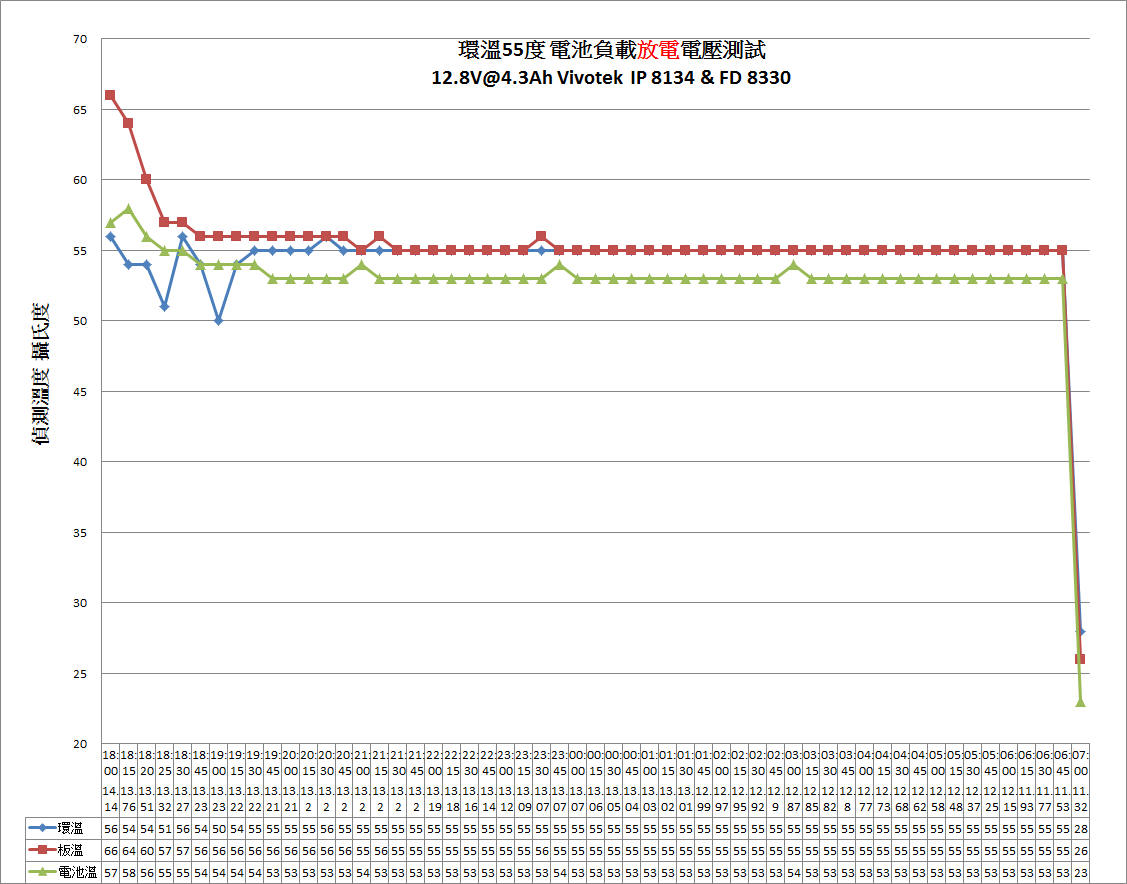

C-LiFePO4 Lithium Batteries High Temperature Discharge Test Report

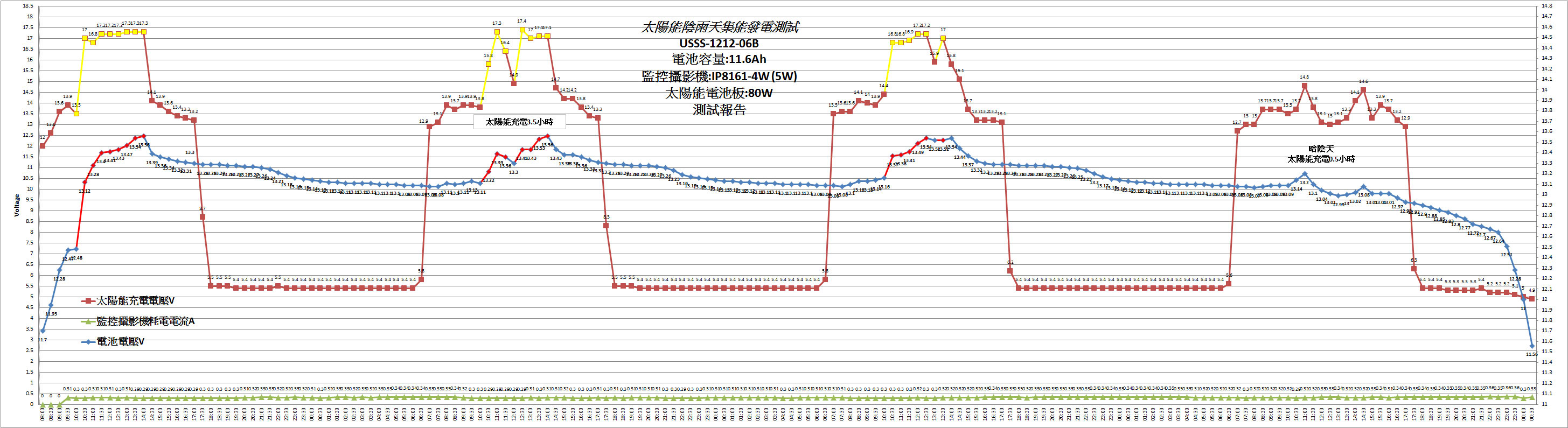

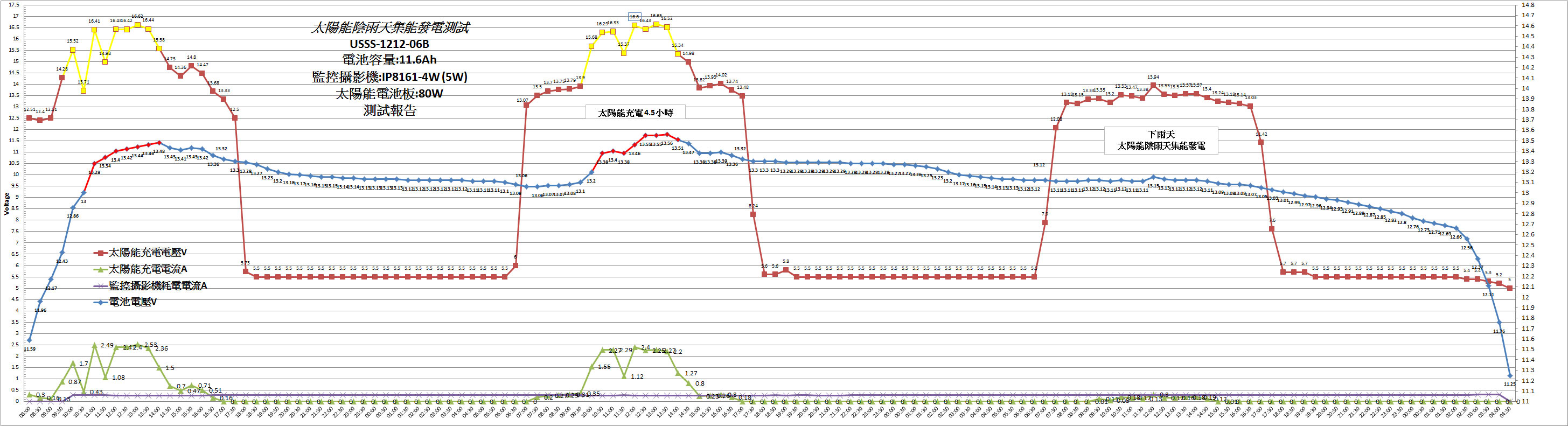

Solar Collection Cloudy Power Generation System Test Report

Test Report 1 Large Image

Test Report 2 Large Image



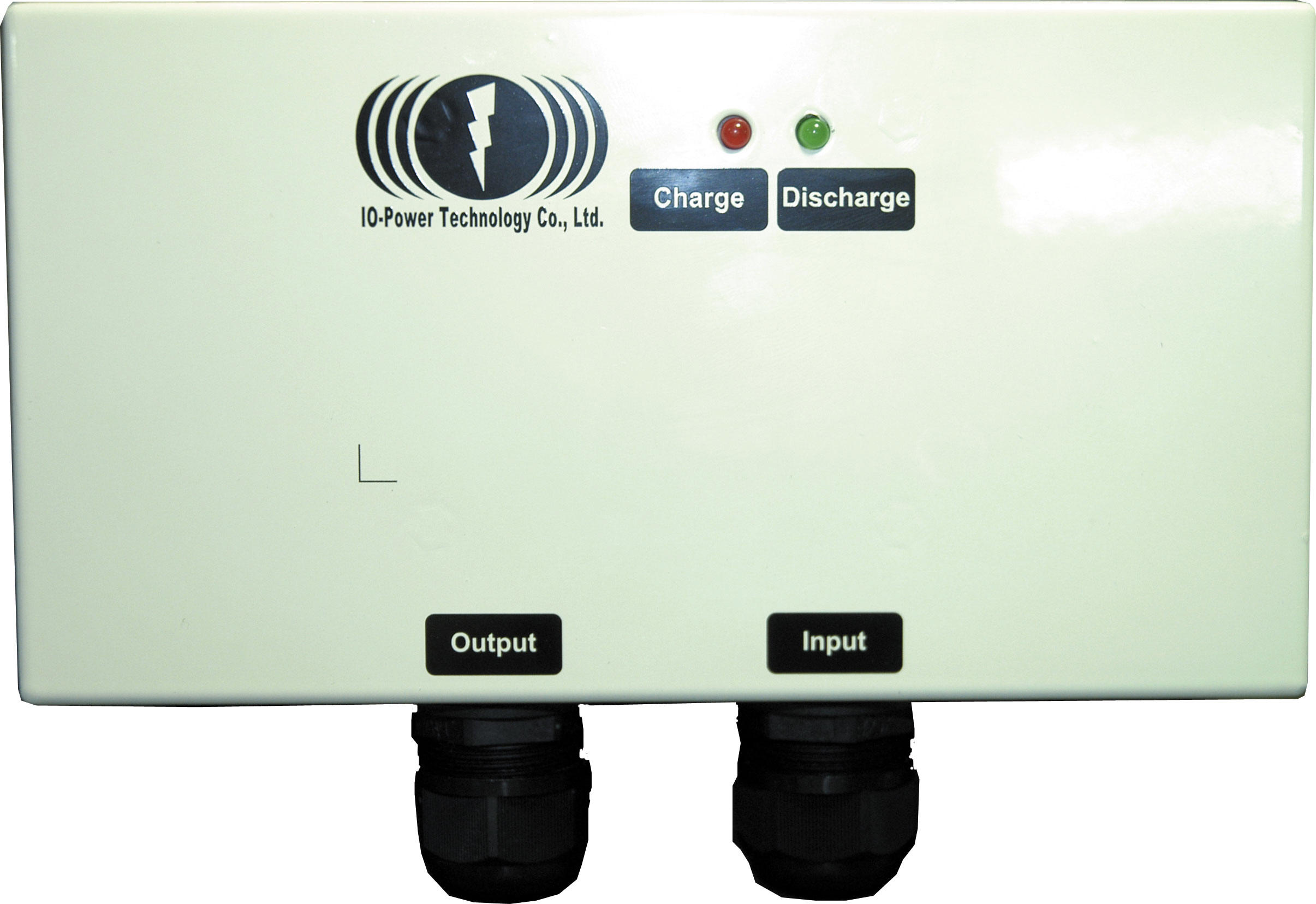

Indoor / Outdoor 12VDC Online Type Uninterruptible Operation Power System Power Series

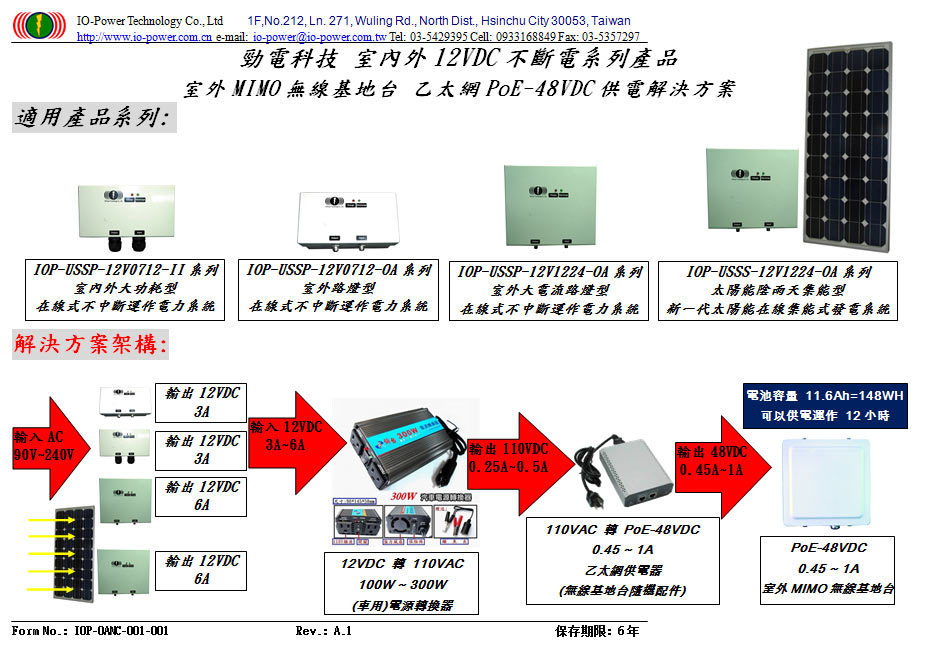

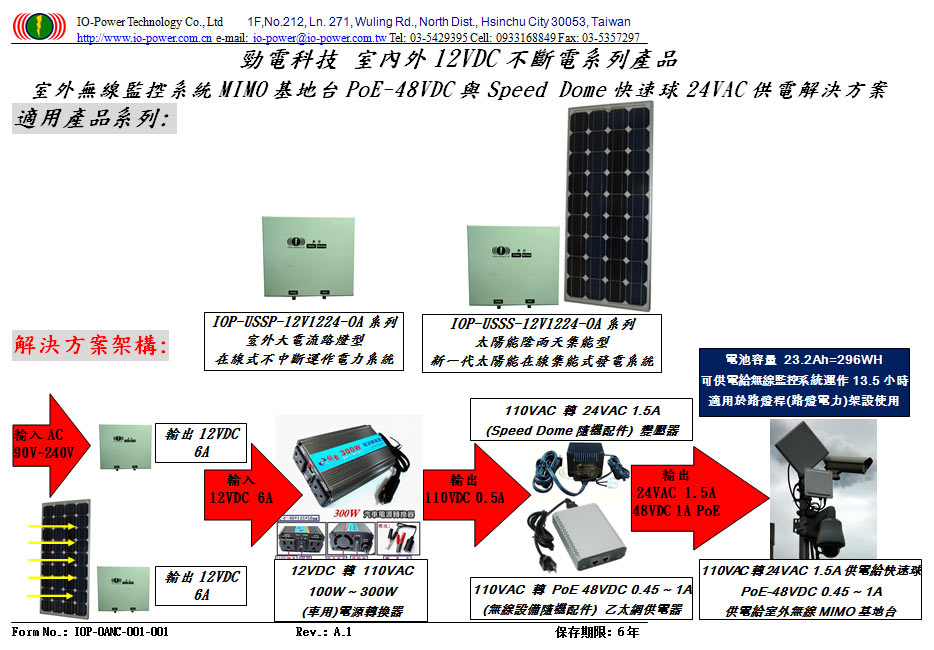

For Outdoor Wireless MIMO AP PoE-48VDC and Speed Dome 24VAC Power Supply Solution



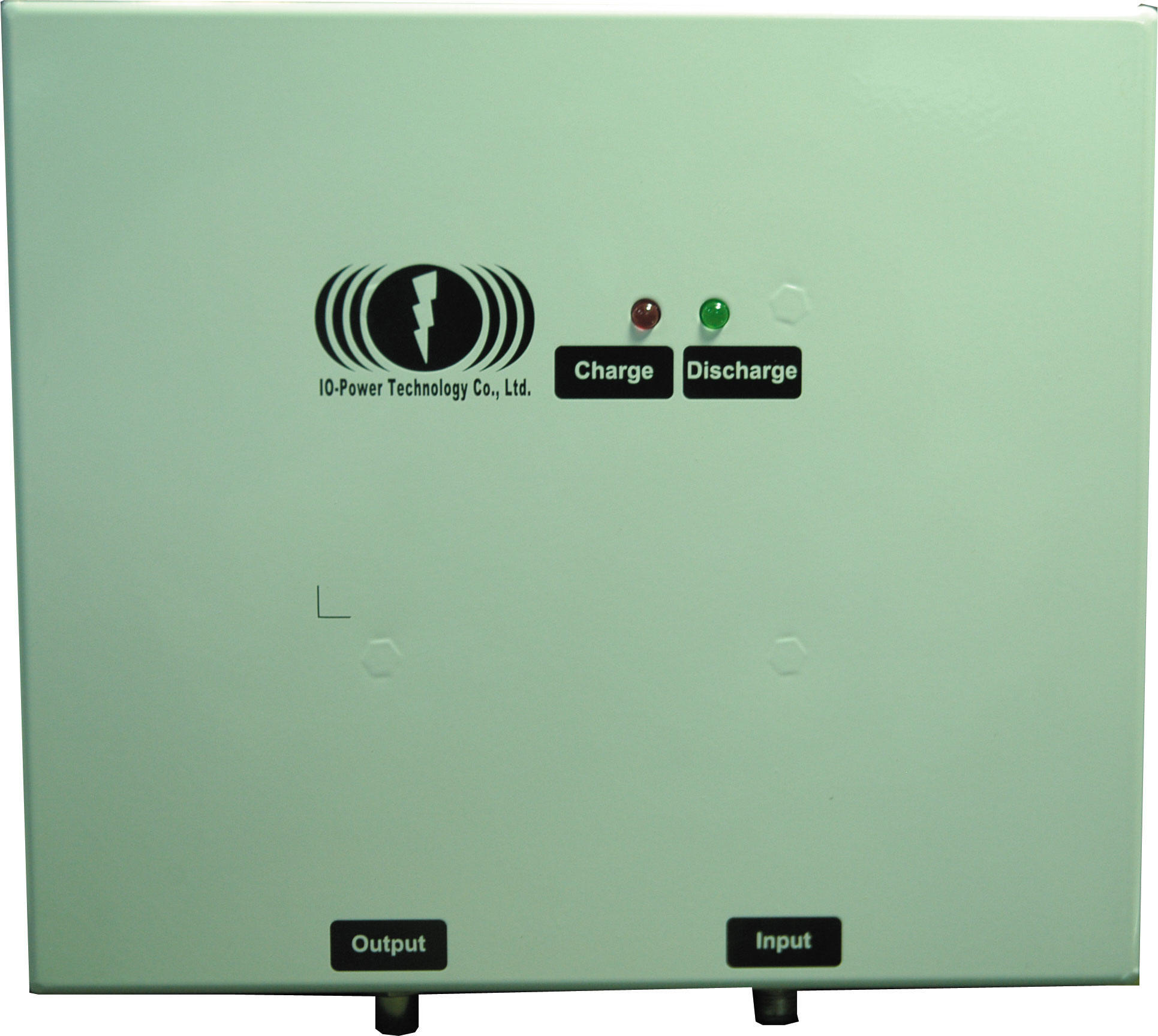

Indoor / Outdoor 12VDC Online Type Uninterruptible Operation Power System Power Series

For Outdoor Wireless MIMO AP PoE-48VDC Power Supply Solution



Indoor / Outdoor 12VDC Online Type Uninterruptible Operation Power System Power Series

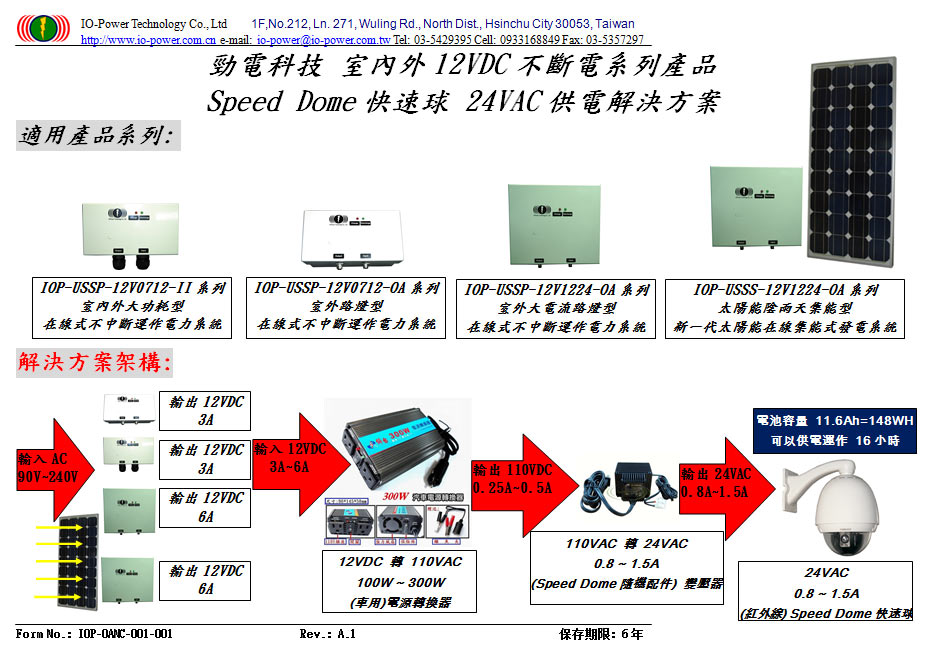

For (IR) Speed Dome 24VAC Power Supply Solution
