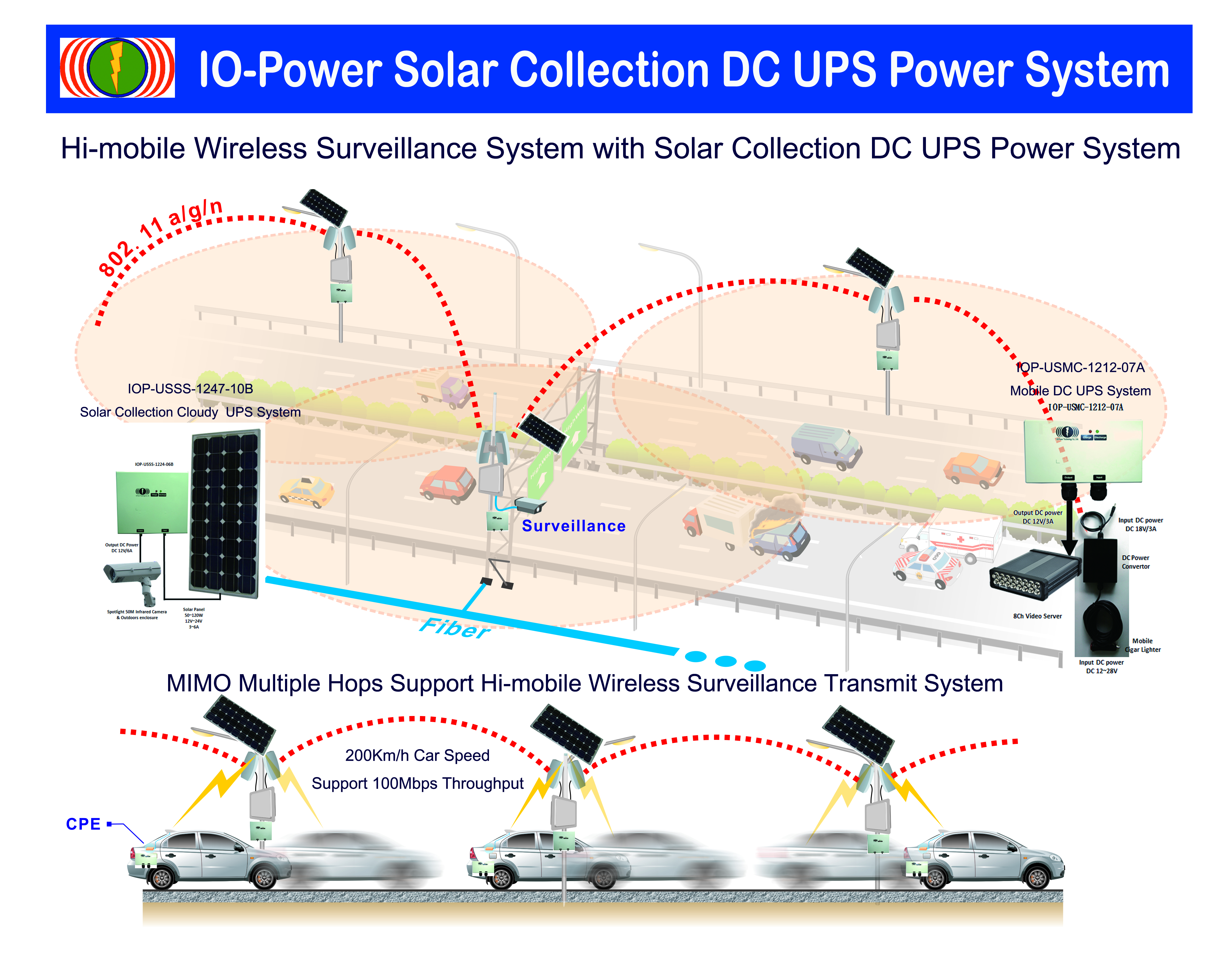

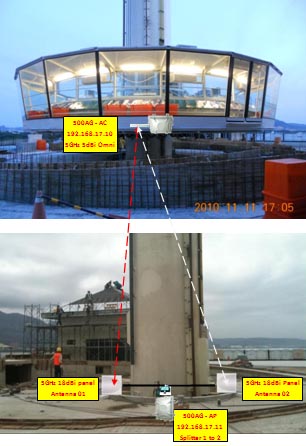

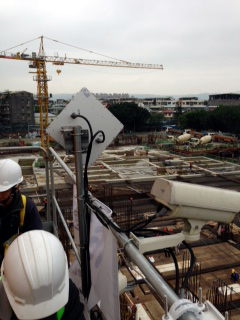

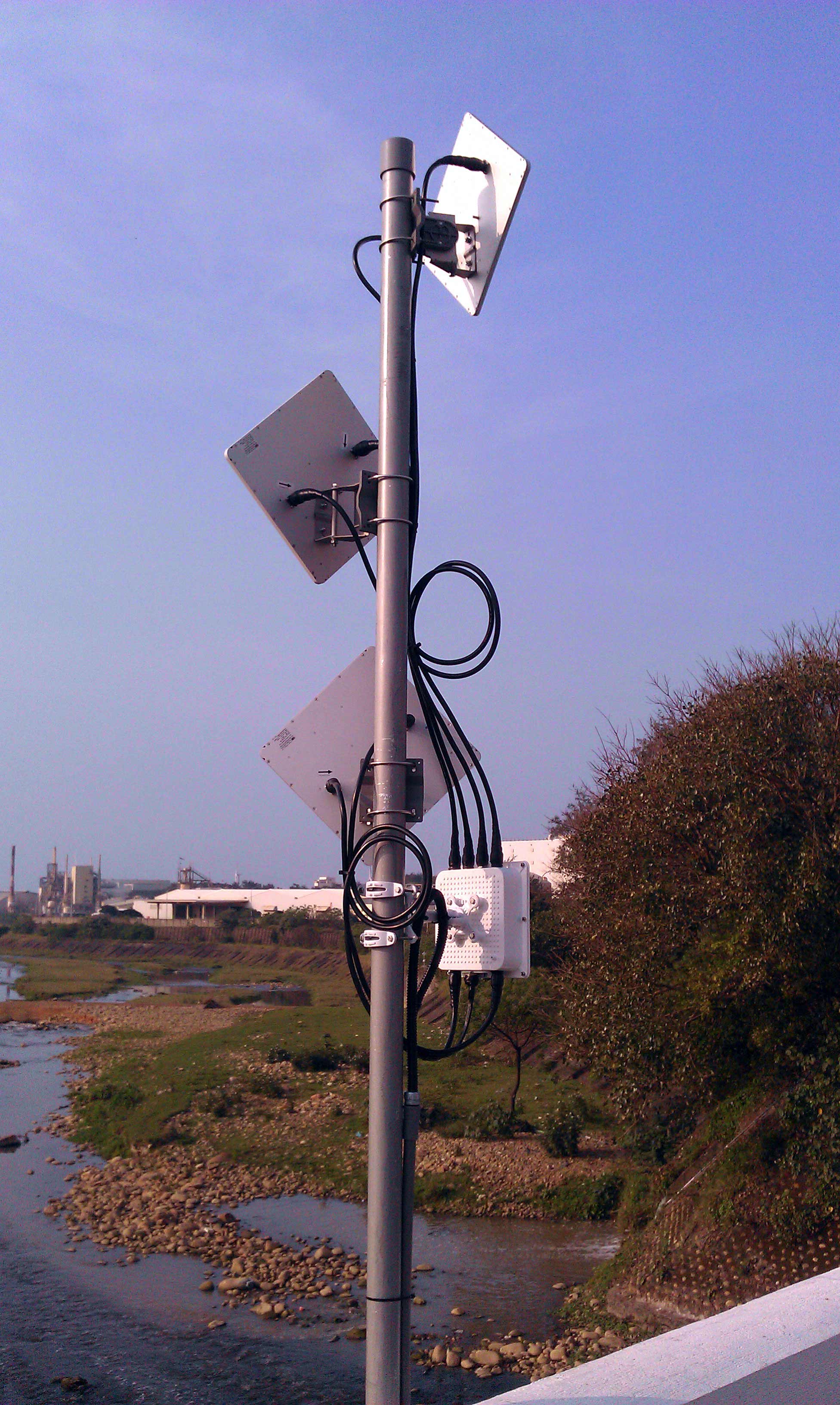

30Km Highway 100 Camera 300Mbps
Wireless Surveillance Backhaul 01

34 Speed Dome 221Mbps
Wireless Surveillance Backhaul 02

Police Office Project
Wireless Surveillance System 03

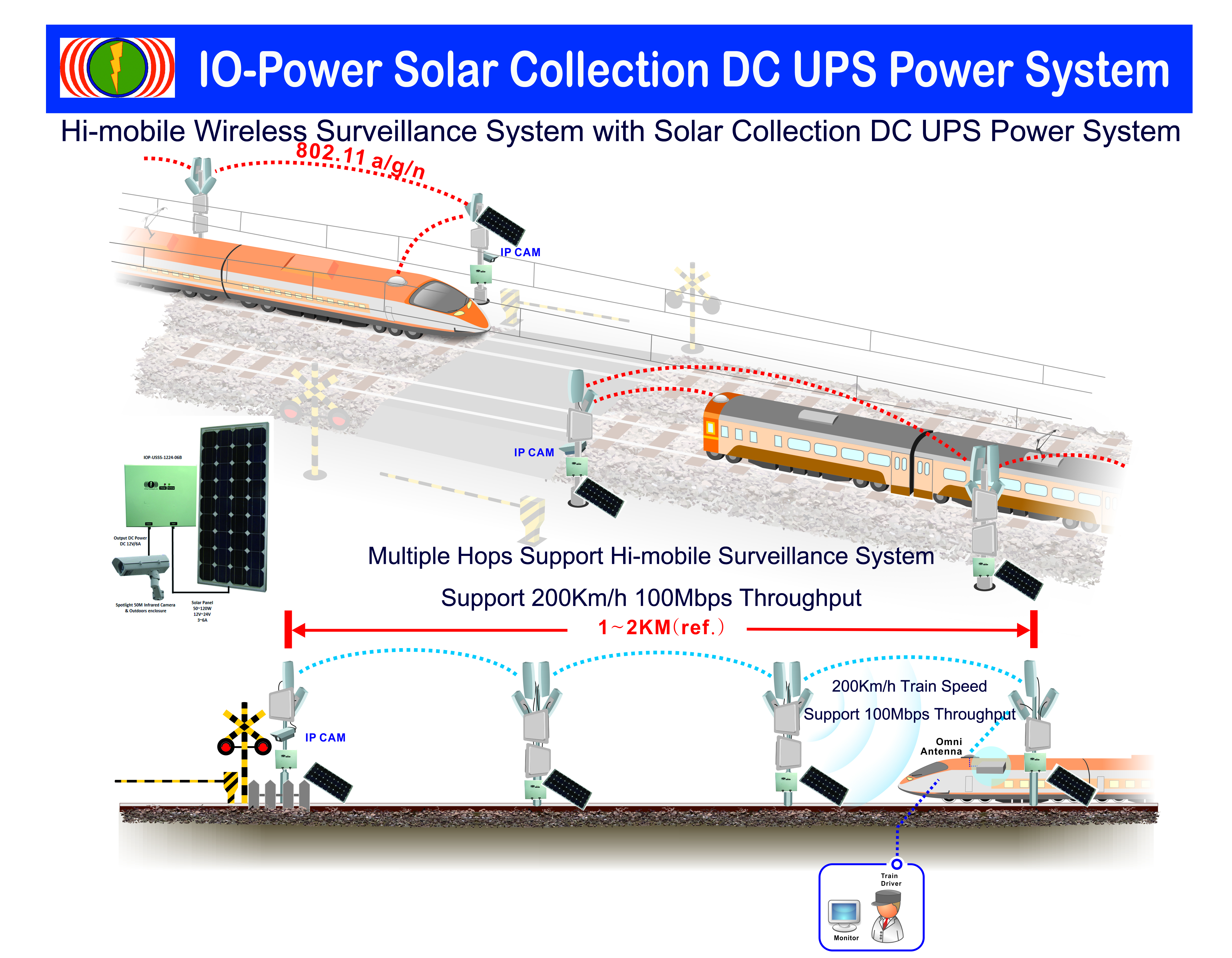

Train Crossing Solar DC UPS
Wireless Surveillance System 04

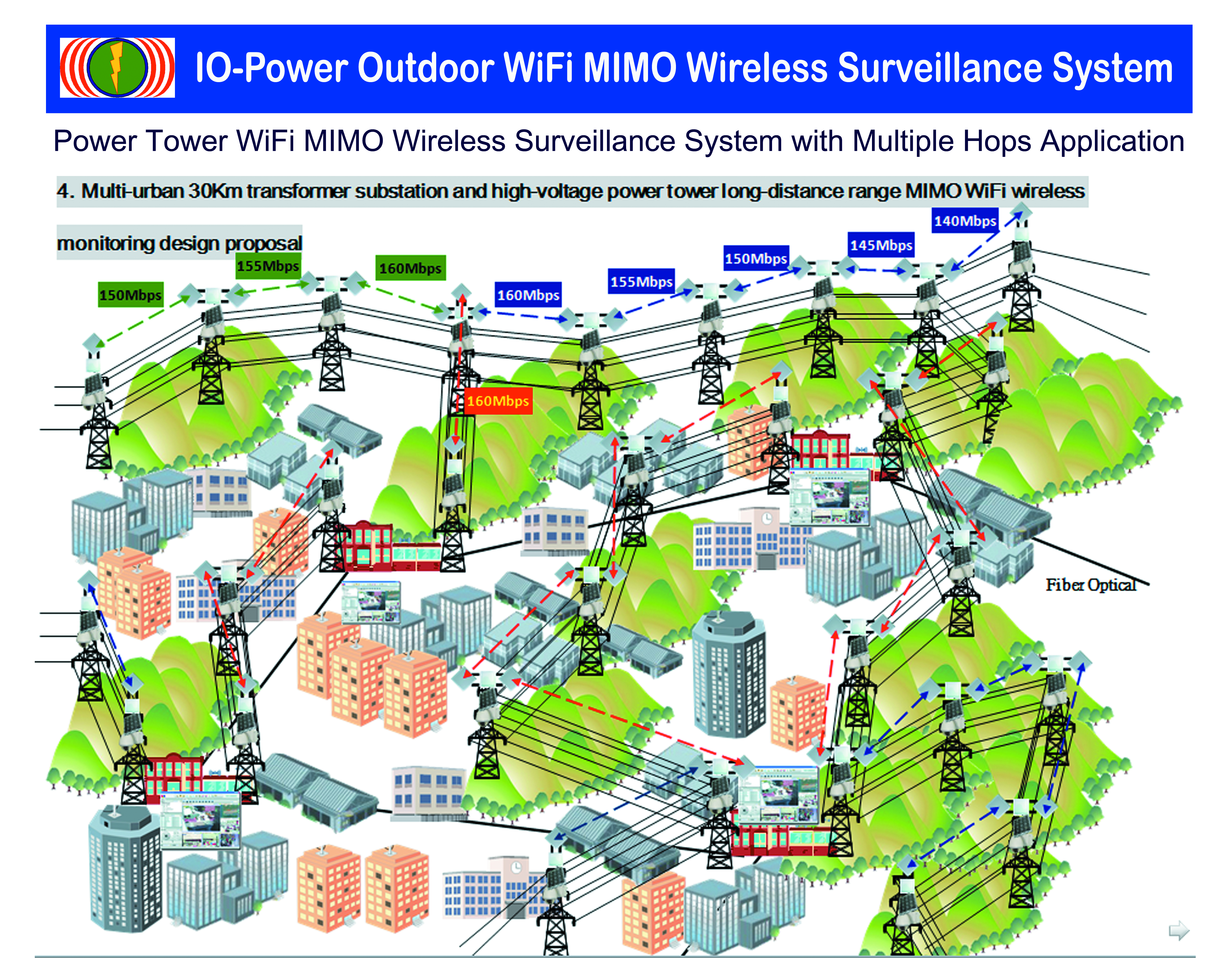

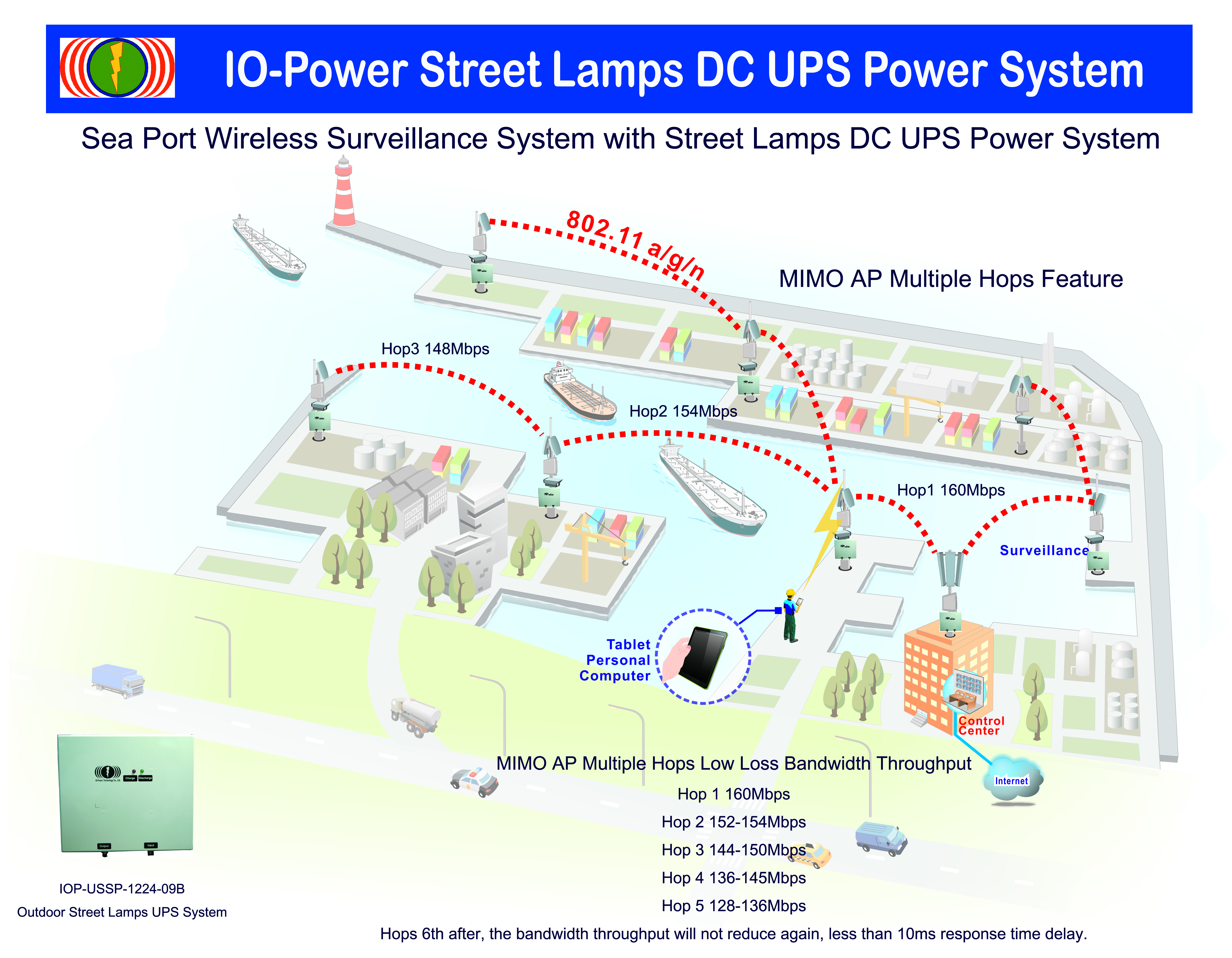

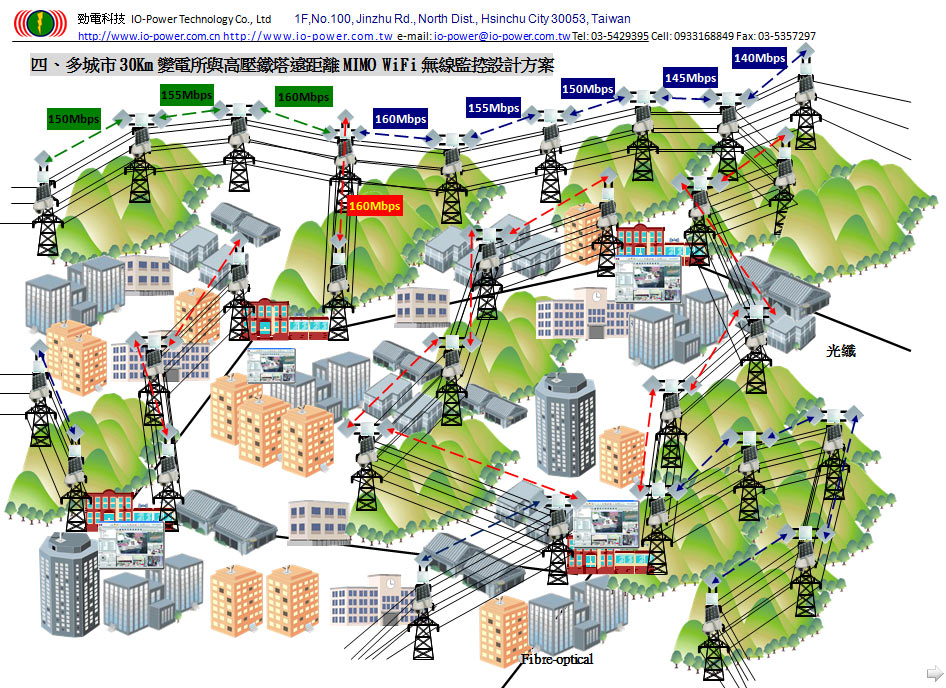

30Km Transformer Substation Multiple Hops

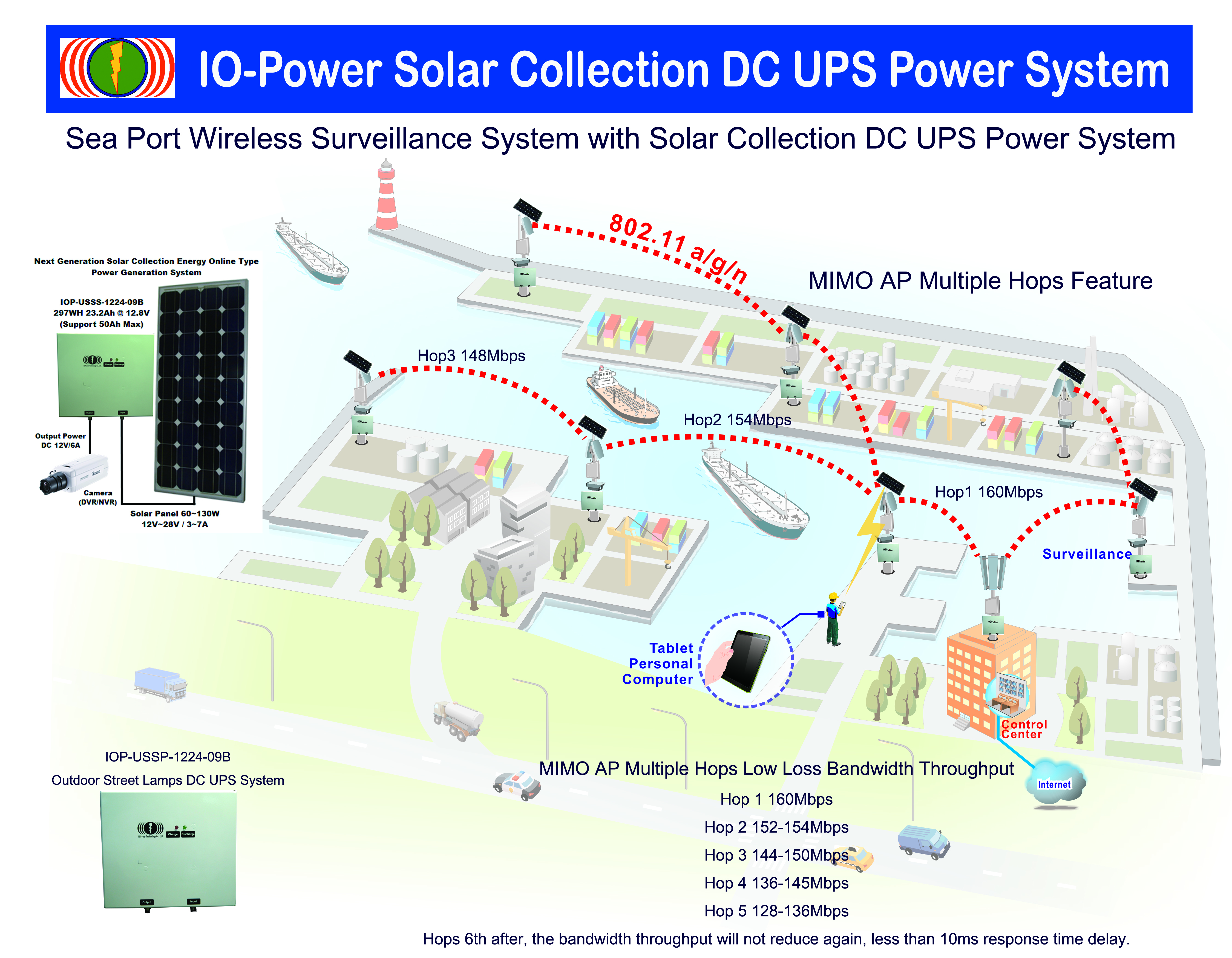

Wireless Surveillance Solar Power System 05

Wireless Multiple Hops V.S.Double Bridge & Repeater
(Backhaul Dead End) Comprehensive Comparison

Uninterruptible Surveillance Recording Solution with DC UPS Power System (Surge-free and Stable Voltage)

Wireless Automobile Data Transmission Slution for Parking Lot (Mobile DVR/NVR)

Long Distanced Bus Stops Wireless Surveillance Transmission System in Real-time

Wireless Remote Power On / Off Schedule Controller
for Solar System & Street Lamps Power Control System

Outdoor Streetlamp Model DC UPS Power System

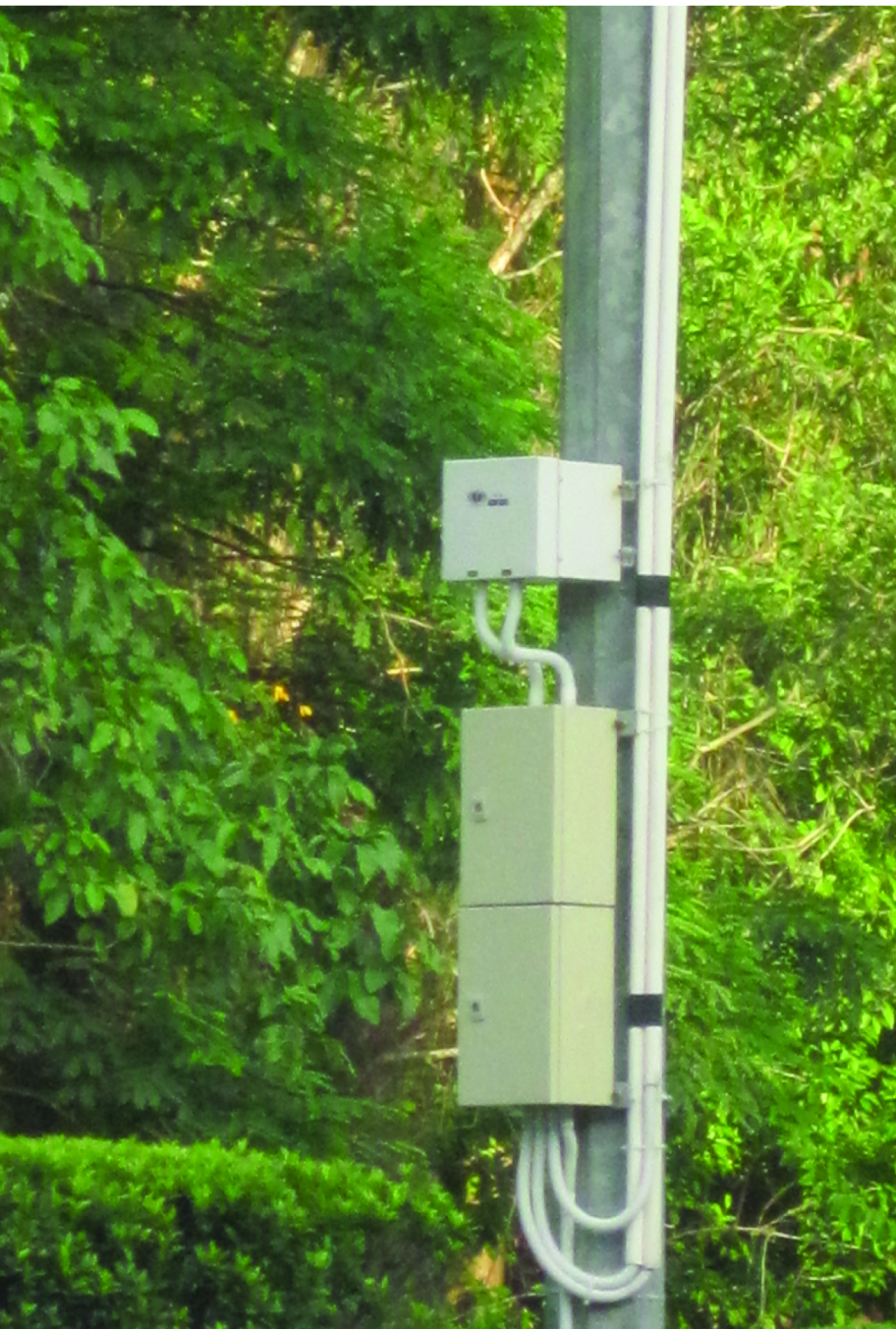

Streetlamp Model DC UPS Installation Instruction

Graph of C-LiFePO4 Battery Voltage and Capacity

The Difference between Transmission Throughput of Dual Polarization and Single Polarization Antenna with MIMO Wireless Device

New Products & New Solutions & New Applications

Bus Surveillance System with DC UPS System

WiFi MIMO Mesh Hi-mobile Network System
-- Train & Subway & Freeway & City Road

Hi-mobile Surveillance in WiFi Mesh network system (emergency disaster relief)

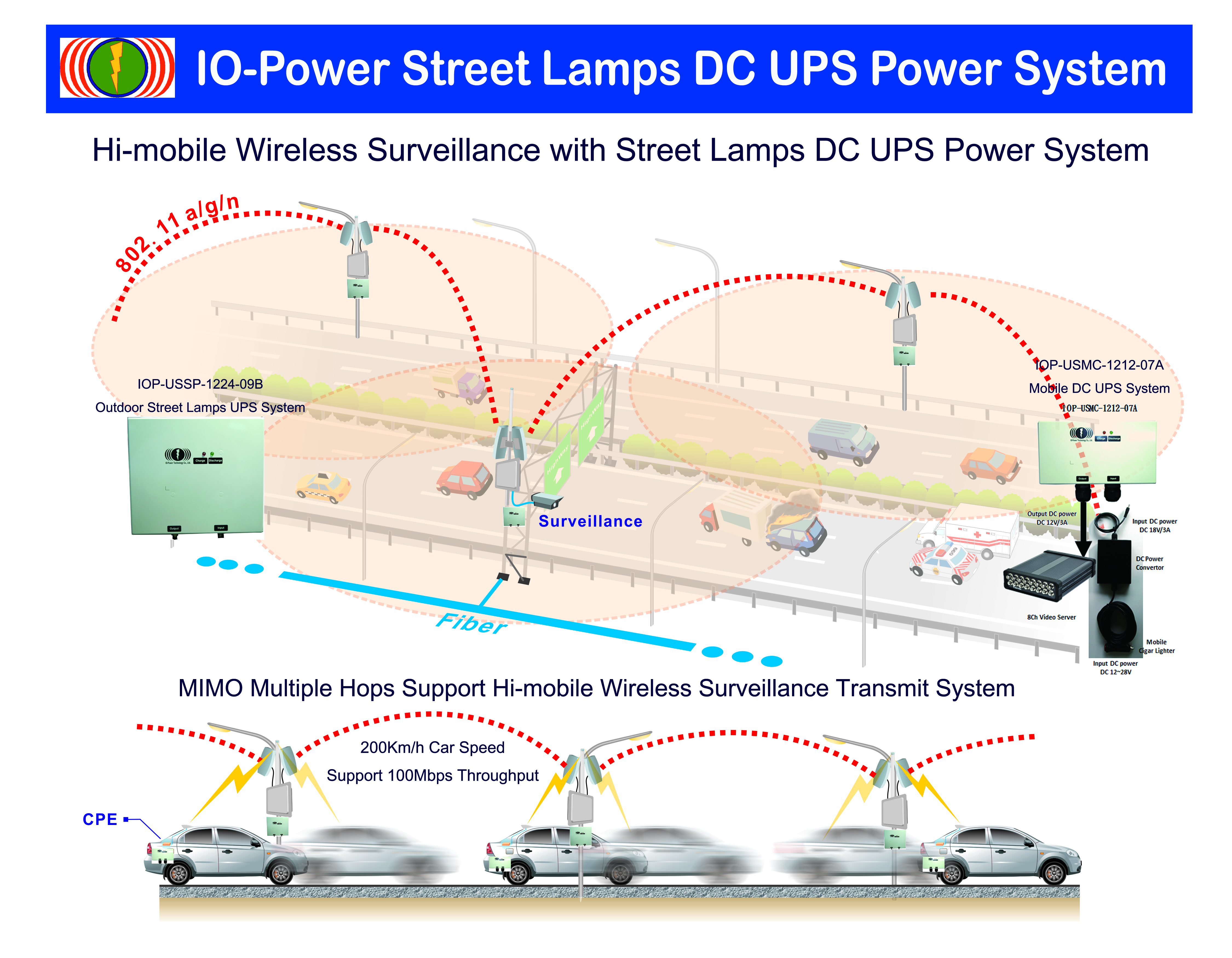

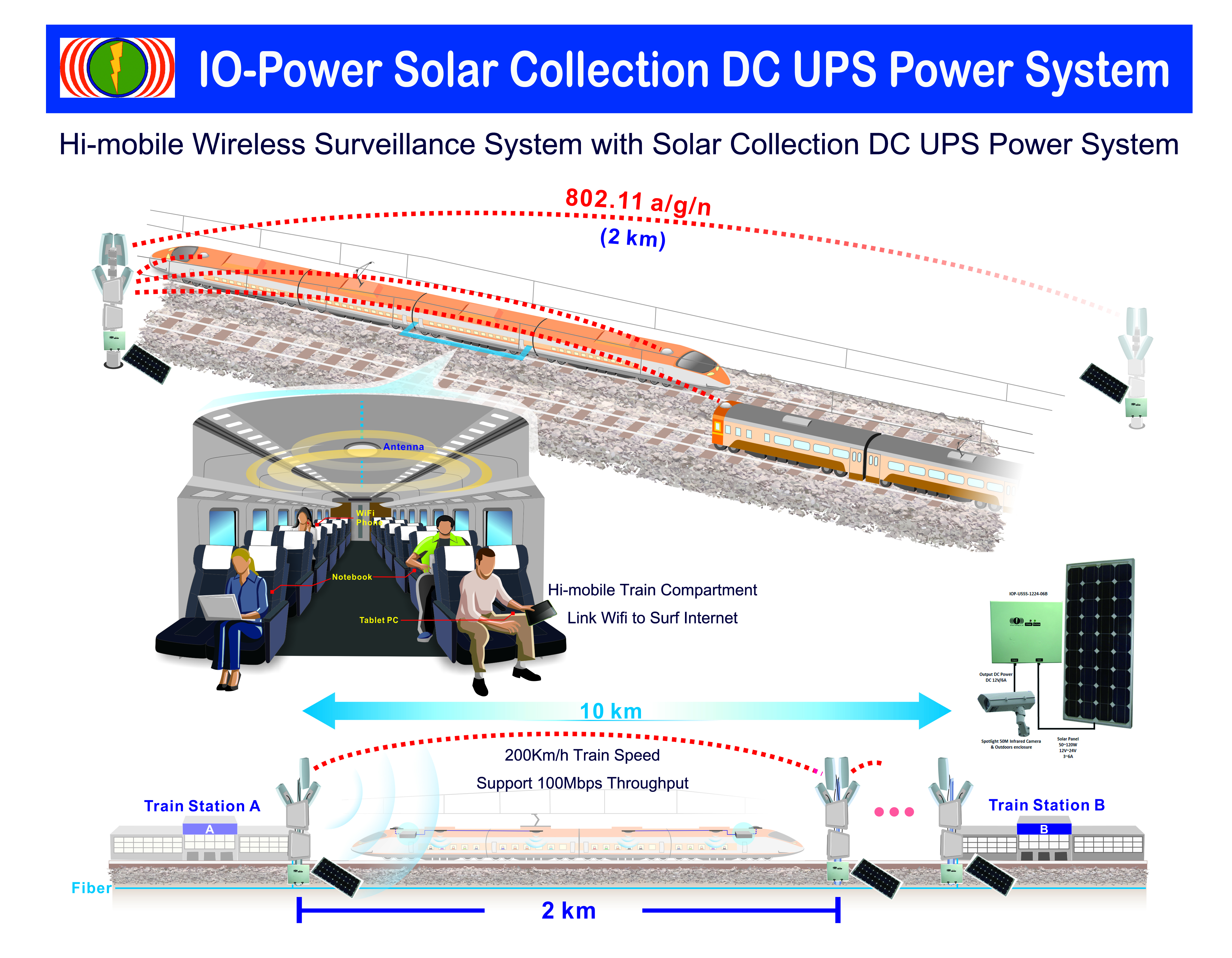

Vehicles Wireless Surveillance System of Multi Power Supply Solutions

Outdoor ultra-long-term in high temperature long life cycle DC UPS power system

Outdoor 3G / 4G Wireless Cloud Surveillance System
with『APS Parallel Solar DC UPS Power System』

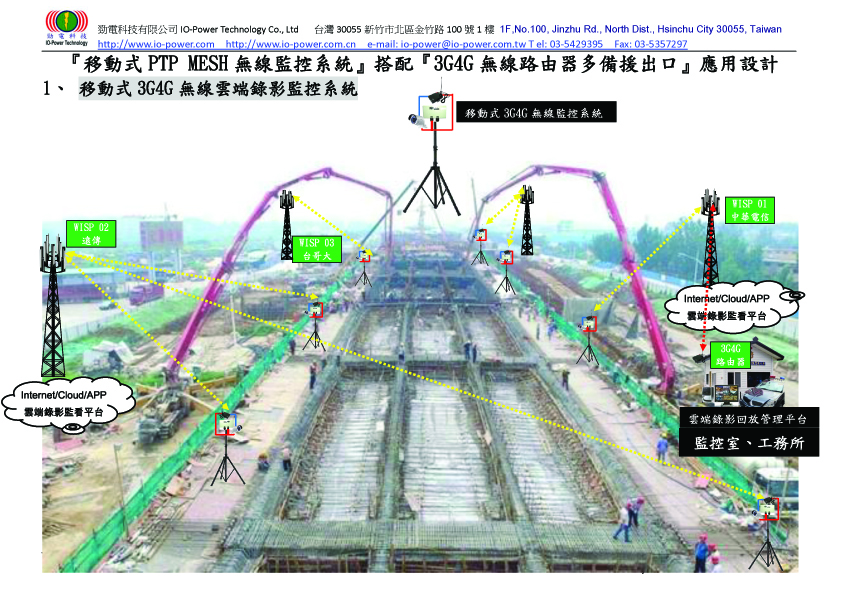

Outdoors 3G/4G wireless cloud surveillance & temporary mobile surveillance system

Outdoor DC UPS Power Supply Solutions (SCBP + General Grid Power) for telecom / surveillance system

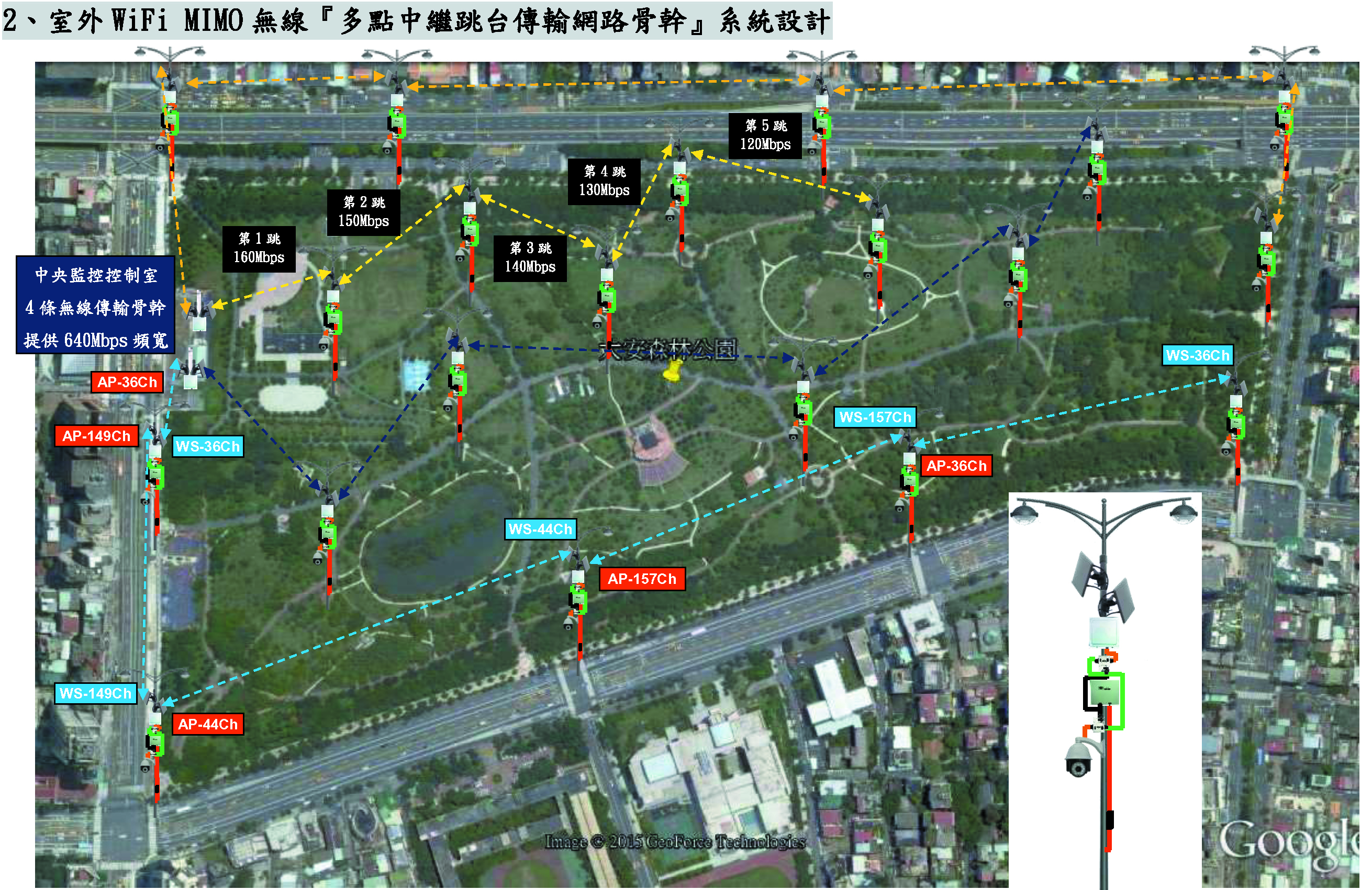

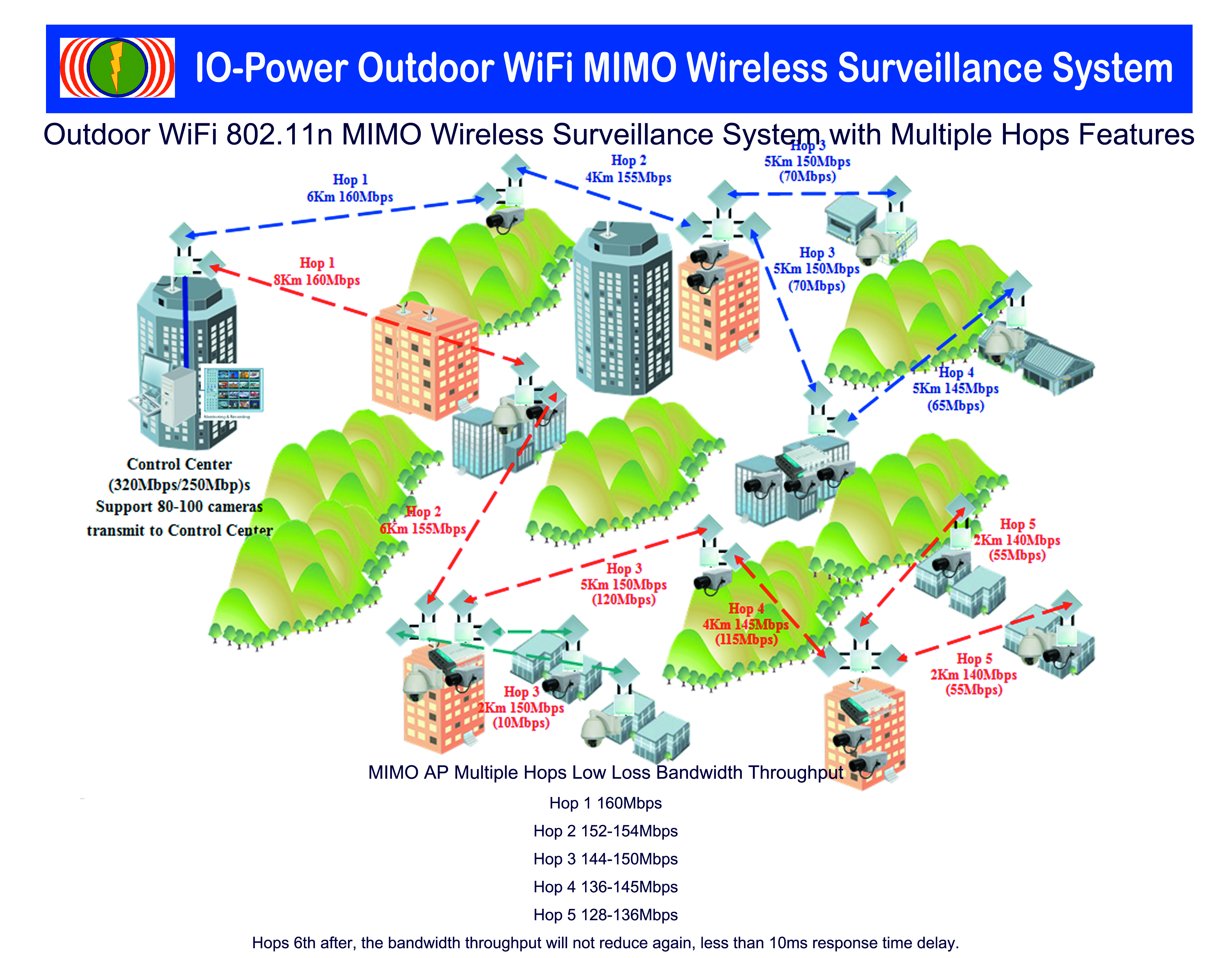

Outdoor WiFi MIMO large bandwidth by Multiple Hops wireless surveillance system planning (With DC UPS)

Part Area or Industrial Park or Highway Wireless Surveillance System with Street Lamps DC UPS Power System Solutions

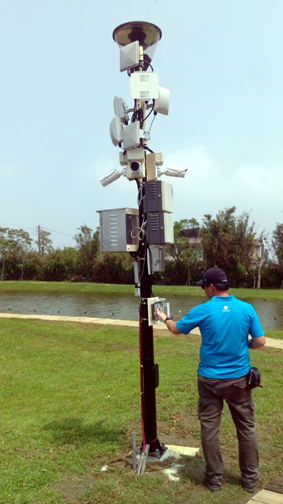

Outdoor EL-N & ML-N Series PTP Mesh Hi-mobile Wireless Network System Design for Train / Subway / MRT (Bus) / Highway

3G/4G Outdoor Mobile Cloud Surveillance System with Mobile DC UPS Power System

Outdoor Mobile 3G4G_WiFi Wireless Surveillance with DC UPS Power System Design EV3

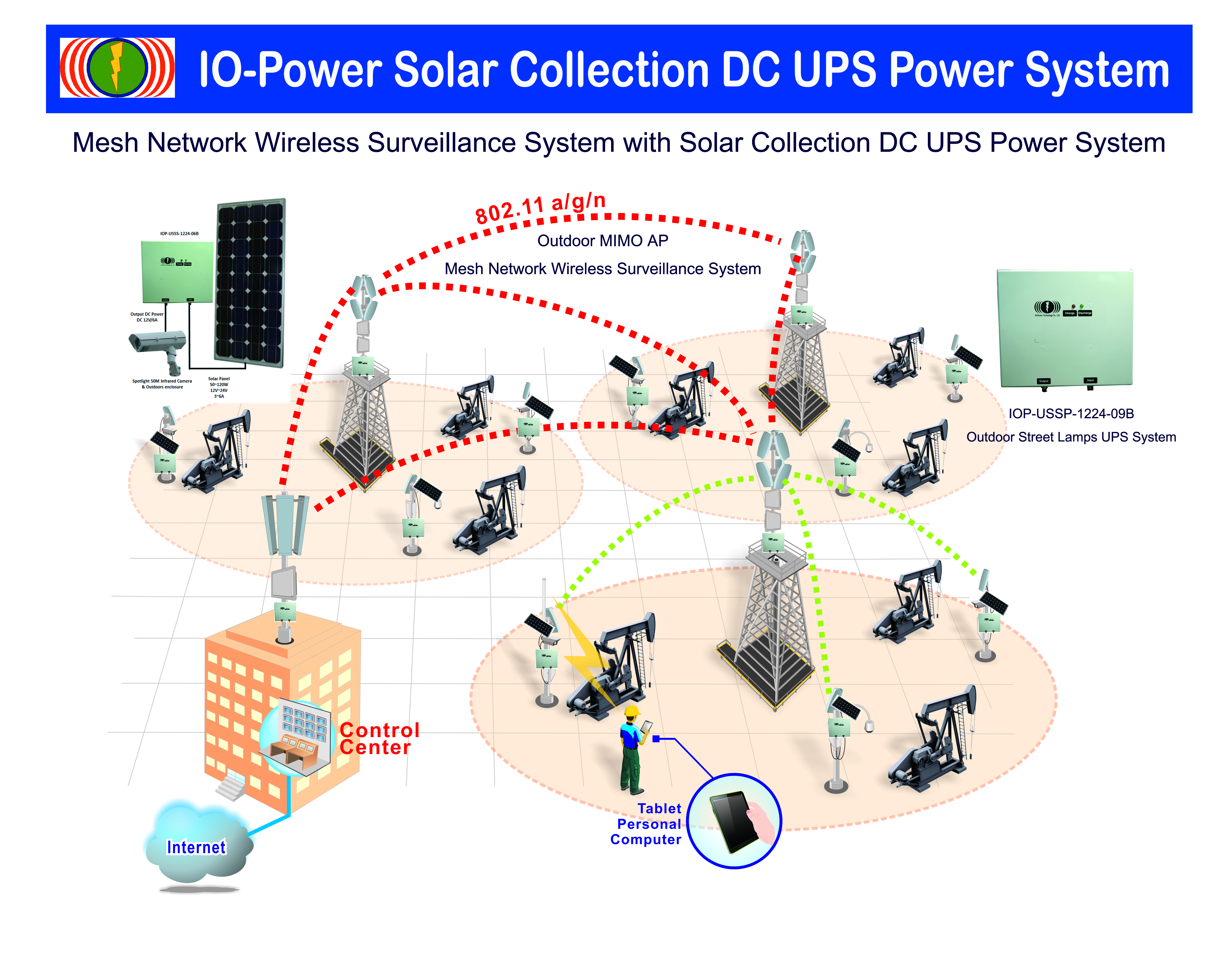

AI artificial intelligence farm_LoRa_4G-LTE_PTP Mesh wireless surveillance transmission system planning and design 20180509 EV1

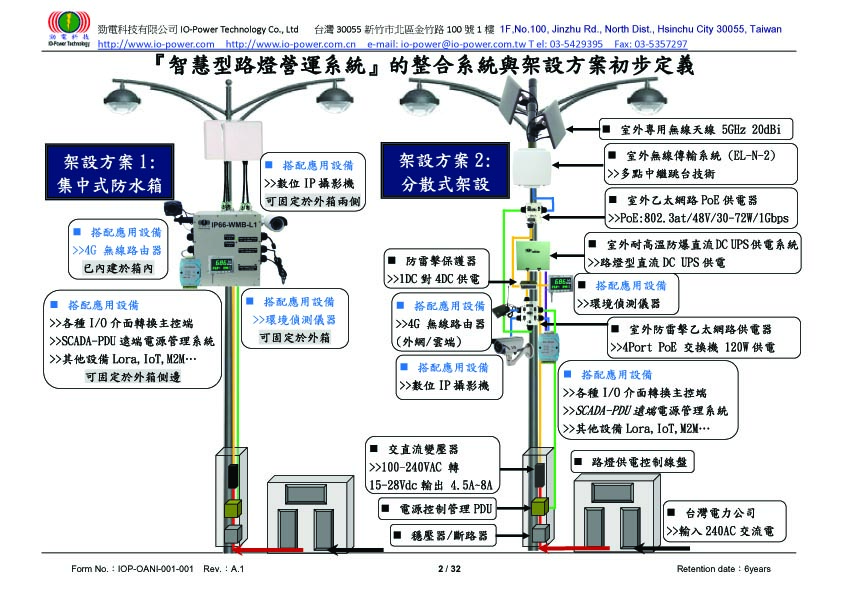

Smart City -- "Smart Street Light Operation System"
Street Light Power Supply And Wireless Transmission System and Network Management System Design


Outdoor Wireless SIP Digital Network Broadcast Transmission System
--WiFi Wireless Information Highway Application—


Design scheme of high altitude cable car WiFi MIMO hi-mobile wireless monitoring transmission system


5G Last Mile Solution



Waterproof, Dustproof, Corrosion-resistant, Wind-resistant, Anti-interference Aluminum Alloy Die-cast Case

IP69 High Temperature and High Pressure Dustproof and Waterproof Test Verification Report_202010

IOP-WMDC-1P1L6N0N-F ( Flat Cover )

IOP-WMDC-1P1L6N4N-T ( Toppan Cover  )

IOP-WMDC-2P2L6N6N-D ( Double Under Cover)

MBAP-RF1-PANFO-5M2001213 (Top Cover 5GHz Antenna All-in-one Machine)

The following is the IP69 (IP69K) related IPX9 test video link of the network:

1. https://www.youtube.com/watch?v=3tncb7xNFR8

2. https://www.youtube.com/watch?v=CKjywN3EXP4

3. https://www.youtube.com/watch?v=eua0bHuBjRE

4. https://www.youtube.com/watch?v=eCjQFMk1hwc

5. https://www.youtube.com/watch?v=fvBv99xsBK0

Welcome to inquire about OEM/ODM customized business cooperation!!



IO-Power IOP-WMDC-1P1L6N0N-F (Flat Cover)

IP69 Waterproof and Corrosion-Resistant and Wind-Resistant and Anti-Interference

Aluminum Alloy Die-Casting Case



IO-Power IOP-WMDC-1P1L6N4N-T (Toppan Cover)

IP69 Waterproof and Corrosion-Resistant and Wind-Resistant and Anti-Interference

Aluminum Alloy Die-Casting Case



IO-Power IOP-WMDC-2P2L6N6N-D (Double Under Cover)

IP69 Waterproof and Corrosion-Resistant and Wind-Resistant and Anti-Interference

Aluminum Alloy Die-Casting Case



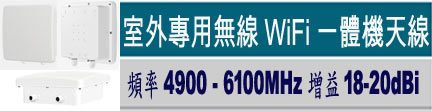

MBAP-RF1-PANFO-5M2001213

5GHz 18-20dBi Dual Polarization MIMO Panel Antenna

Assembled above the case (without Wireless Motherboard)

Welcome to inquire about OEM/ODM customized business cooperation!!

Design scheme of high altitude cable car WiFi MIMO hi-mobile wireless monitoring transmission system

+ With IP67 high temperature resistant mobile backup DC UPS power supply system +

--WiFi wireless information highway application--

Design scheme of high altitude cable car WiFi MIMO hi-mobile wireless monitoring transmission system



Outdoor Wireless SIP Digital Network Broadcast Transmission System

--WiFi Wireless Information Highway Application—

"Recording Monitoring System" + "Digital Broadcasting System" + "AI, IoT, Industry 4.0" …and so on

Outdoor Wireless SIP Digital Network Broadcast Transmission System

2020 Year New Products Announce  !!

IOP-PANFO-5M2001213

5GHz 18-20dBi Dual Polarization MIMO Panel Antenna

Welcome to consult OEM / ODM custom business cooperation!!



IOP-PANFO-5M2001213 5GHz 18-20dBi Dual Polarization MIMO Panel Antenna

2020 Year New Products Announce  !!

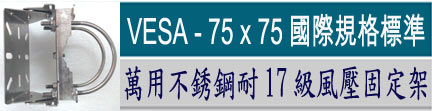

IOP-UHMK-VESA75-1

VESA-75 International Standard

--Universal Stainless Steel 17-level Wind Pressure Mounting Kit

Welcome to consult OEM / ODM custom business cooperation!!

IOP-UHMK-VESA75-1

 VESA-75 International Standard

--Universal Stainless Steel 17-level Wind Pressure Mounting Kit

2020 Year New Products Announce  !!

MBAP-RF1-PANFO-5M2001213

5GHz 18-20dBi Dual Polarization MIMO Panel Antenna

Assembled above the case (without Wireless Motherboard)

Welcome to consult OEM / ODM custom business cooperation!!



MBAP-RF1-PANFO-5M2001213

5GHz 18-20dBi Dual Polarization MIMO Panel Antenna

Assembled above the case (without Wireless Motherboard)

2019 Q4 New Products Announce !!


Welcome to consult OEM / ODM custom business cooperation!!

IOP-DAPI-12243A-2 IOP-DAPI-24243A-2
Input 12Vdc to Output 24VAC Input 24Vdc to Output 24VAC
Input Current 6A~ Above Input Current 3A~ Above
Output 12VAC/2.5A--60W/100W Max Output 24VAC/2.5A--60W/100W Max
Specially designed for Speed Dome 24VAC AC power supply
Data Sheet   New release !! Data Sheet  New release !!

IO-Power IOP-DAPI-12243A-2

Outdoor 12VDC to 24VAC Power Inverter

Special Design for Speed Dome 24VAC Power Solution



IO-Power IOP-DAPI-12243A-2 is a specially designed outdoor DC to AC Inverter for 24VAC Speed Dome, adopting 12VDC input power, which is different from the usual adapter — input power 100~240VAC, output power 24VAC. It helps the system integrate (SI) easily collocate with 12VDC power source from the Outdoor DC UPS power system and 12VDC power source from the adapter (over 6A). It decreases the power transmission loss from DC to AC, then anther power transmission loss from 110VAC~240VAC to 24VAC (about 15%~30% loss of electricity). Therefore, IOP-DAPI-12243A-2 is especially suitable for green energy power system, such as solar power system and winder power system. The electricity loss it saves makes 30% of cost benefit for the whole power system.

DC to AC Inverter is adopted industrial level of Iron metal thermal protection shell and waterproof dust reached IP67 of mechanism design and the Waterproof and heat-resistant beam head to handle the outside tough temperature at -30°C ~ +70°C to maintain the outdoor system normally working during day and night.

IO-Power IOP-DAPI-12243A-2 adopts 12VDC input power of high current. The output of the conversion output is 60W and the peak power supply 100W maximum, enough for the normal Speed Dome which consumes 10~18W/H, and for the long-distance infrared rays Speed Dome, which consumes 18~35W/H. The 24VAC voltage and 2.5A current (and peak power supply 4A Max) can manage the transient current of Speed Dome which reaches 2~3A to reach the requirements of the Inverter of “Special Design for Speed Dome Power Solution”.

Adopting 12VDC input power can collocate with not only 12VDC power source from Outdoor DC UPS power systems, but also 12VDC power source from normal adapters (over 6A). Therefore, the applications are for 24VAC outdoor surveillance system, 24VAC outdoor emergency rescuing system, 24VAC mobile power supply system, 24VAC outdoor surveillance recording system, 24VAC outdoor public sign and indication system, 24VAC outdoor financial security system, 24VAC elevator security monitoring system, 24VAC fire security system, 24VAC expressway charges trading surveillance system, etc.

IOP-DAPI-12243A-2 Specification

Model Number

IOP-DAPI-12243A-2

Outdoor 12VDC to 24VAC

Iron Airtight Housing

IP 67



Input DC Voltage

12VDC (10VDC~15VDC Max)

**Before using, please confirm that the upper cover is marked with input 12Vdc / 6A~ or 24VDC / 3A~ voltage mode, please follow the instructions input voltage power supply.

Input DC Current

12VDC 6A~ (Recommended for 8A above will be better)

Output AC Voltage

24VAC (22VAC~28.5VAC Max)

Output AC Current

2.5A and peak power supply 4A Max

Output Power Frequency

47-50 Hz

Output Power Consume Watts

Operating power 60W and peak power supply 100W Max

Input Connector

DC Female Jack Pin OD: 2.1mm

Output Connector

DC Female Jack Pin OD: 2.1mm

Transform Efficiency

85%~

Protection

Input power overcurrent protection

Low input voltage protection

High input voltage protection

Output power overcurrent protection

Short circuit protection

Imported power polarity protection for anti-welding

Power surge 5KVA protection

Industrial Housing & Connector

Iron Airtight Housing

IP 67 Gland Connector

** Top cover marked 12VDC / 6A ~ and 24VDC / 3A ~ of the shipping product input voltage mark distinction

Connector Type

Input DC Power: 10~15VDC 6A~ , DC Female Jack Pin OD: 2.1mm

Output AC Power: 22VAC~28.5VAC 2.5A and peak power supply 4A Max, DC Female Jack Pin OD: 2.1mm

Operating Temperature

-30°C ~ +70°C

Storage Temperature

-40°C ~ 80°C

Rel. Humidity

0~95%RH

Dimension

210mm(L) x 92mm(W) x 50mm(H)

Weight

0.5Kg

Housing

IP67

Approvals

CE FCC Processing

Installation

1.Street lamp pole mount or Upright pole mount
2.Wall mount installation

Warranty

12 months

Remark 1: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications

Remark 2: Before using, please confirm that the upper cover is marked with input 12Vdc / 6A ~ or 24VDC / 3A ~ voltage mode, please follow the instructions input voltage power supply.

IO-Power IOP-DAPI-24243A-2

Outdoor 24VDC to 24VAC Power Inverter

Special Design for Speed Dome 24VAC Power Solution



IO-Power IOP-DAPI-24243A-2 is a specially designed outdoor DC to AC Inverter for 24VAC Speed Dome, adopting 24VDC input power, which is different from the usual adapter — input power 100~240VAC, output power 24VAC. It helps the system integrate (SI) easily collocate with 24VDC power source from the Outdoor DC UPS power system and 24VDC power source from the adapter (over 5A). It decreases the power transmission loss from DC to AC, then anther power transmission loss from 110VAC~240VAC to 24VAC (about 15%~30% loss of electricity). Therefore, IOP-DAPI-24243A-2 is especially suitable for green energy power system, such as solar power system and winder power system. The electricity loss it saves makes 30% of cost benefit for the whole power system.

DC to AC Inverter is adopted industrial level of Iron metal thermal protection shell and waterproof dust reached IP67 of mechanism design and the Waterproof and heat-resistant beam head to handle the outside tough temperature at -30°C ~ +70°C to maintain the outdoor system normally working during day and night.

IO-Power IOP-DAPI-24243A-2 adopts 24VDC input power of high current. The output of the conversion output is 60W and the peak power supply 100W maximum, enough for the normal Speed Dome which consumes 10~18W/H, and for the long-distance infrared rays Speed Dome, which consumes 18~35W/H. The 24VAC voltage and 2.5A current (and peak power supply 4A Max) can manage the transient current of Speed Dome which reaches 2~3A to reach the requirements of the Inverter of “Special Design for Speed Dome Power Solution”.

Adopting 24VDC input power can collocate with not only 24VDC power source from Outdoor DC UPS power systems, but also 24VDC power source from normal adapters (over 5A). Therefore, the applications are for 24VAC outdoor surveillance system, 24VAC outdoor emergency rescuing system, 24VAC mobile power supply system, 24VAC outdoor surveillance recording system, 24VAC outdoor public sign and indication system, 24VAC outdoor financial security system, 24VAC elevator security monitoring system, 24VAC fire security system, 24VAC expressway charges trading surveillance system, etc.

IOP-DAPI-24243A-2 Specification

Model Number

IOP-DAPI-24243A-2

Outdoor 24VDC to 24VAC

Iron Airtight Housing

IP 67



Input DC Voltage

24VDC (20VDC~26VDC Max)

**Before using, please confirm that the upper cover is marked with input 12Vdc / 6A~ or 24Vdc / 3A~ voltage mode, please follow the instructions input voltage power supply.

Input DC Current

24VDC 3A~ (Recommended for 5A above will be better)

Output AC Voltage

24VAC (22VAC~28.5VAC Max)

Output AC Current

2.5A and peak power supply 4A Max

Output Power Frequency

47-50 Hz

Output Power Consume Watts

Operating power 60W and peak power supply 100W Max

Input Connector

DC Female Jack Pin OD: 2.1mm

Output Connector

DC Female Jack Pin OD: 2.1mm

Transform Efficiency

85%~

Protection

Input power overcurrent protection

Low input voltage protection

High input voltage protection

Output power overcurrent protection

Short circuit protection

Imported power polarity protection for anti-welding

Power surge 5KVA protection

Industrial Housing & Connector

Iron Airtight Housing

IP 67 Gland Connector

** Top cover marked 12VDC / 6A ~ and 24VDC / 3A ~ of the shipping product input voltage mark distinction

Connector Type

Input DC Power: 20~26VDC 3A~ (Recommended for 5A above will be better), DC Female Jack Pin OD: 2.1mm

Output AC Power: 22VAC~28.5VAC 2.5A and peak power supply 4A Max, DC Female Jack Pin OD: 2.1mm

Operating Temperature

-30°C ~ +70°C

Storage Temperature

-40°C ~ 80°C

Rel. Humidity

0~95%RH

Dimension

210mm(L) x 92mm(W) x 50mm(H)

Weight

0.5Kg

Housing

IP67

Approvals

CE FCC Processing

Installation

1.Street lamp pole mount or Upright pole mount
2.Wall mount installation

Warranty

12 months

Remark 1: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications

Remark 2: Before using, please confirm that the upper cover is marked with input 12Vdc / 6A ~ or 24VDC / 3A ~ voltage mode, please follow the instructions input voltage power supply.

2019 Q2 New Products Announce !!


Welcome to consult OEM / ODM custom business cooperation!!

IP68 Aluminum Die-casting Anti-UV Corrosion Resistant Waterproof Case

Model Number : IOP-MBAP-XACX_A1
 MBAP-XACX_A1_01  MBAP-XACX_A1_02  MBAP-XACX_A1_03  MBAP-XACX_A1_04

    16 Screw column
 for PCBA assembly
Space and Screw
for DC UPS Battery-9.8Ah

Model Number : IOP-MBAP-XACX_A2
 MBAP-XACX_A2_01  MBAP-XACX_A2_02  MBAP-XACX_A2_03  MBAP-XACX_A2_04

M16 Type have 4 Holes   16 Screw column
 for PCBA assembly
Space and Screw
for DC UPS Battery-7Ah

Model Number : IOP-MBAP-XACX_A3
 MBAP-XACX_A3_01  MBAP-XACX_A3_02  MBAP-XACX_A3_03

M16 Type have 8 Holes   16 Screw column
 for PCBA assembly

Model Number : IOP-MBAP-XACX_B1
 MBAP-XACX_B1_01  MBAP-XACX_B1_02

  12 Screw column
 for PCBA assembly

Model Number : IOP-MBAP-XACX_C1
 MBAP-XACX_C1_01  MBAP-XACX_C1_02  MBAP-XACX_C1_03   MBAP-XACX_C1_04
M12 Type have 2 Holes
M16 Type have 2 Holes
M20 Type have 2 Holes
14 Screw column
 for PCBA assembly

Model Number : IOP-MBAP-XACX_C2
 MBAP-XACX_C2_01  MBAP-XACX_C2_02  MBAP-XACX_C2_03  MBAP-XACX_C2_04

M12 Type have 2 Holes
M16 Type have 4 Holes
M20 Type have 2 Holes
14 Screw column
 for PCBA assembly

Model Number : IOP-MBAP-XACX_C3
 MBAP-XACX_C3_01  MBAP-XACX_C3_02  MBAP-XACX_C3_03  MBAP-XACX_C3_04 MBAP-XACX_C3_05
M12 Type have 2 Holes
M16 Type have 6 Holes
M20 Type have 2 Holes
14 Screw column
 for PCBA assembly
    Space and Screw
for DC UPS Battery-21Ah
Model Number : IOP-MBAP-XACX_C4
 MBAP-XACX_C4_01  MBAP-XACX_C4_02  MBAP-XACX_C4_03  MBAP-XACX_C4_04 MBAP-XACX_C4_05
M12 Type have 6 Holes
M16 Type have 8 Holes
M20 Type have 2 Holes
14 Screw column
 for PCBA assembly
    M12 Type have 6 Holes

Welcome to consult OEM / ODM custom business cooperation!!





2019 Q2 New Products Announce !!

Welcome to consult OEM / ODM custom business cooperation!!

IP68 Customized Waterproof Connector Wiring
--M12/ M16/ M20/ RJ-45/ DC2.1/ N-type

No Type Image Model Main Spec Pin Head

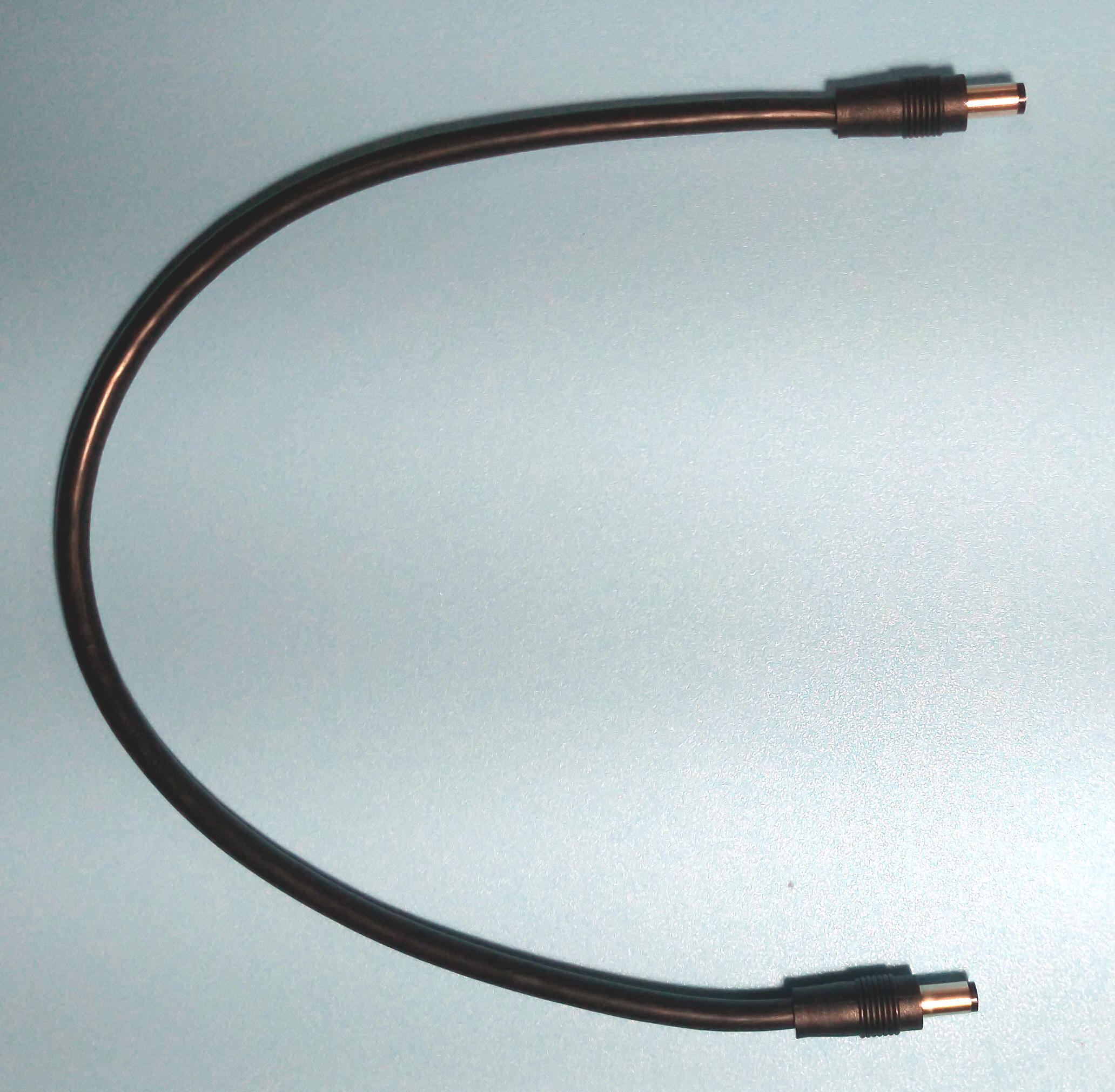

1 DC to DC IOP-DCP-02
_DCM2.1-39CM-DCM2.1

1. DC 2.1 to DC2.1
2. 39CM
3. 18AWG
4. 12A
5. IP65
6. -20 ~ +80℃
7. 300V

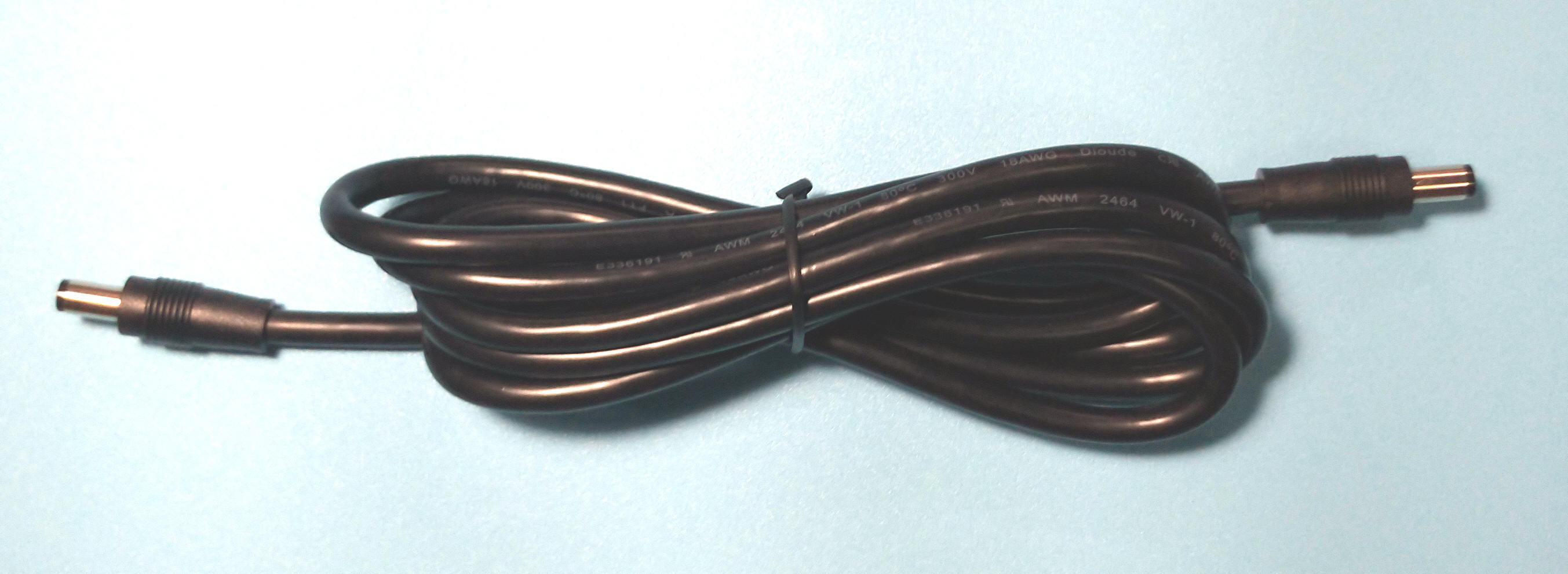

2 DC to DC IOP-DCP-01
_DCM2.1-160CM-DCM2.1

1. DC 2.1 to DC2.1
2. 160CM
3. 18AWG
4. 12A
5. IP65
6. -20 ~ +80℃
7. 300V

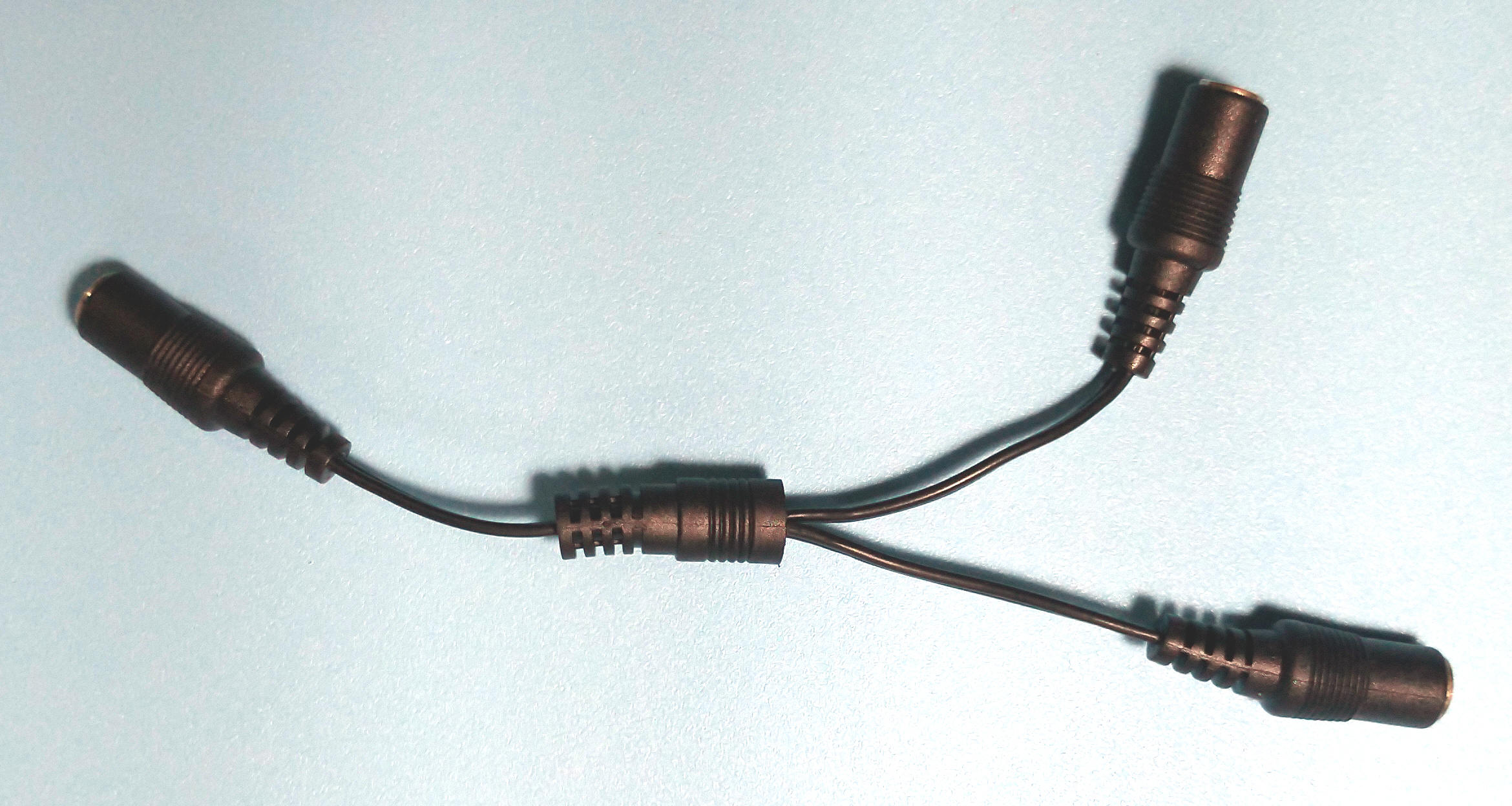

3 DC to DC

IOP-DCP-03
_1DCFP-17CM-2DCFP

1. 1DC FP to 2DC FP
2. 17CM
3. 18AWG
4. 12A
5. IP65
6. -20 ~ +80℃
7. 300V

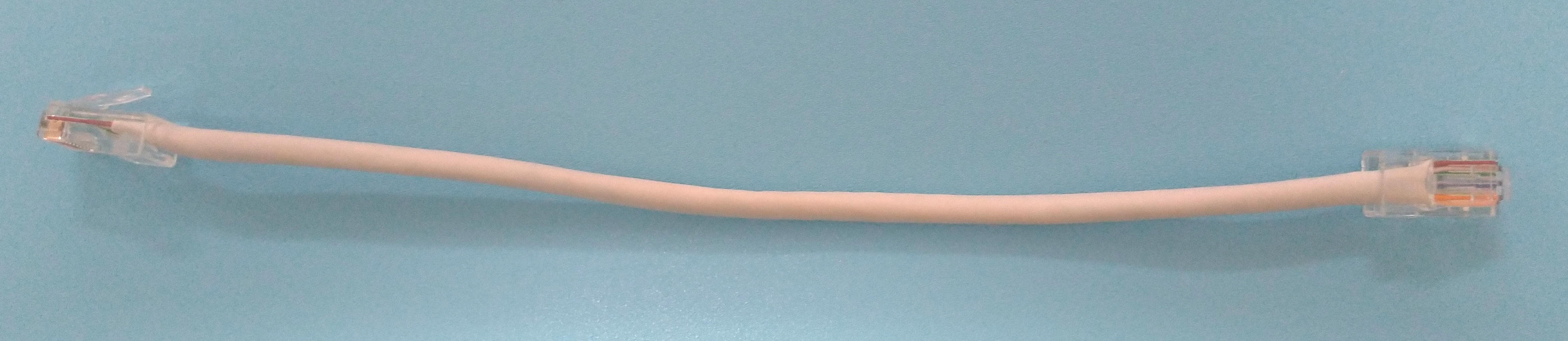

4 RJ-45 to RJ-45 IOP-C5EMM08-A-RJP01_C5E(MMP8)-260-A-RJP01

1. 1 RJ45 to 1 RJ45
2. 26CM
3. 20AWG
4. 2A
5. -20 ~ +80℃
6. 60V


5 M12 to M16

to Ethernet Cable


IOP-M12RM08-A-RJP01
_M12(RMP8)-M16-A-RJP01

1. M12 to M16 to RJ45
2. 23CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V

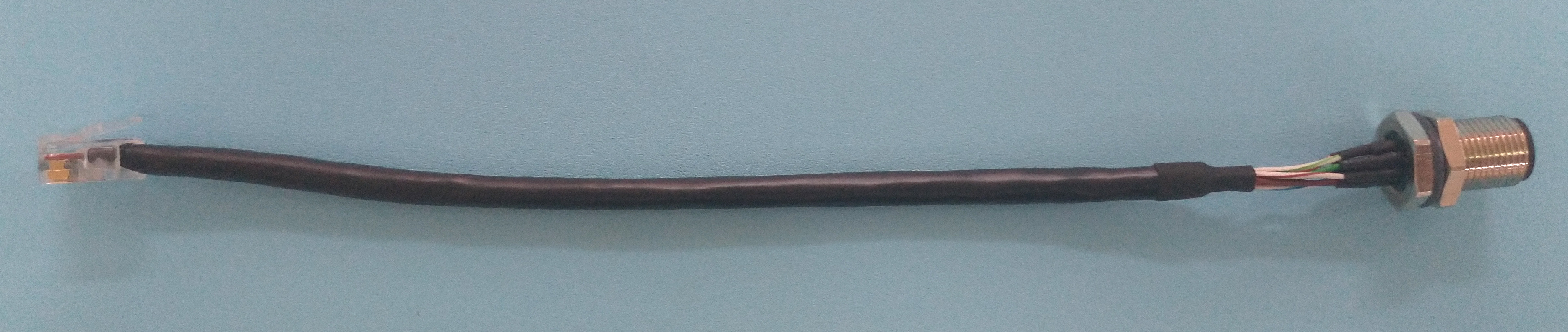

6 M12 to M12

to Ethernet Cable

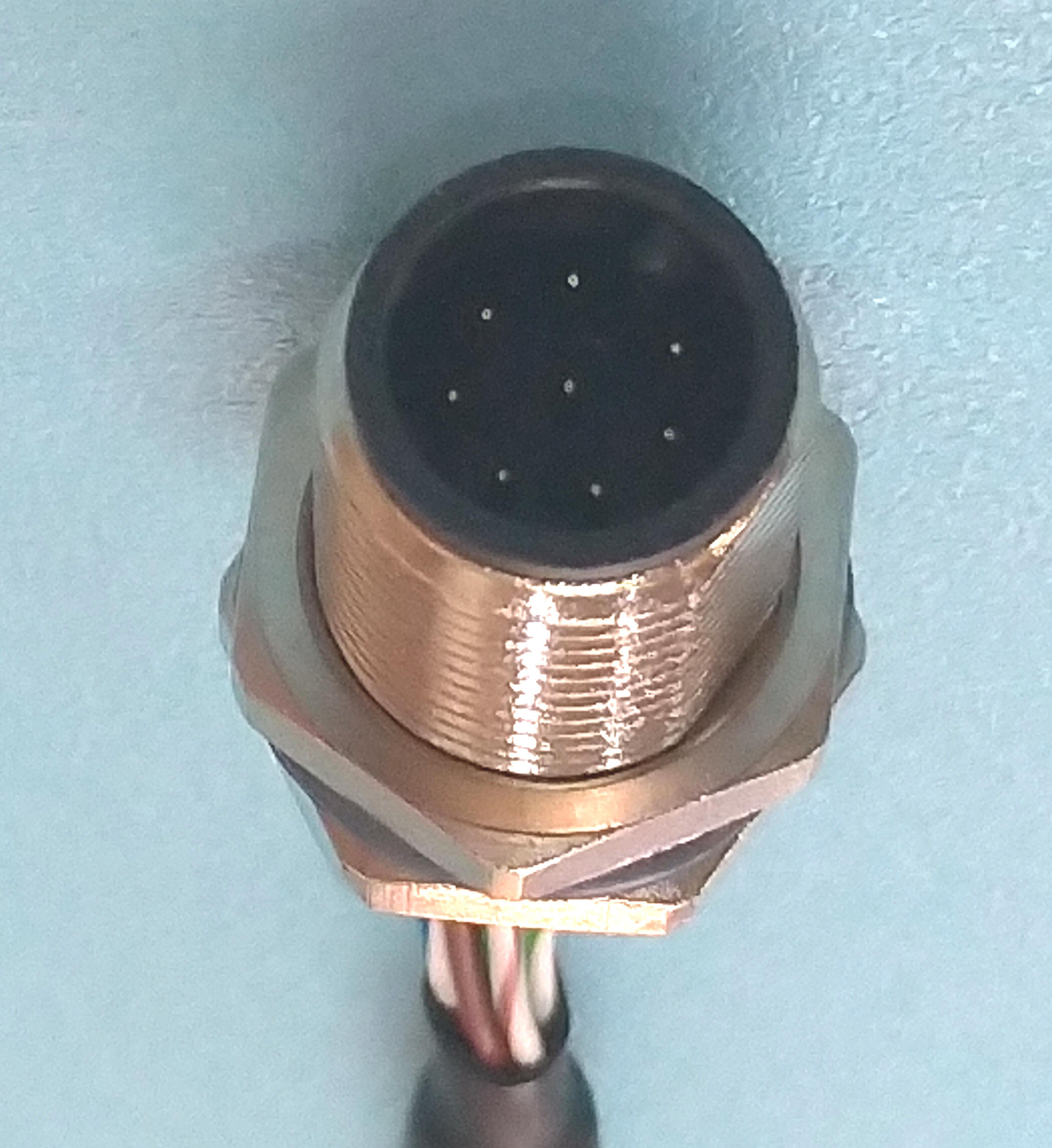

IOP-M12PM08-B-RJP01
_M12(PMP8)-M12-B-RJP01

1. M12 to M12 to RJ45
2. 23CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V

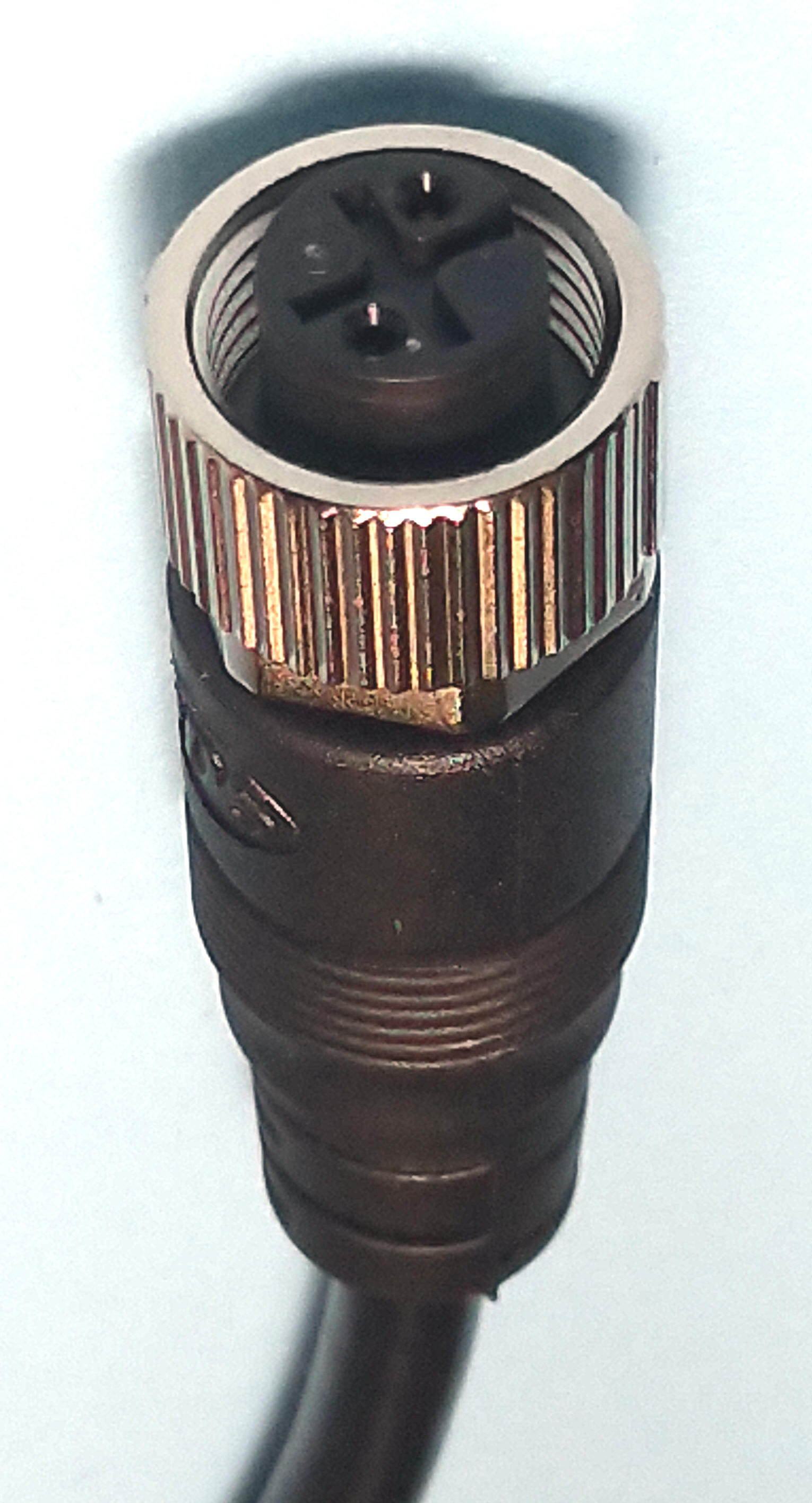

7 M12 to M12

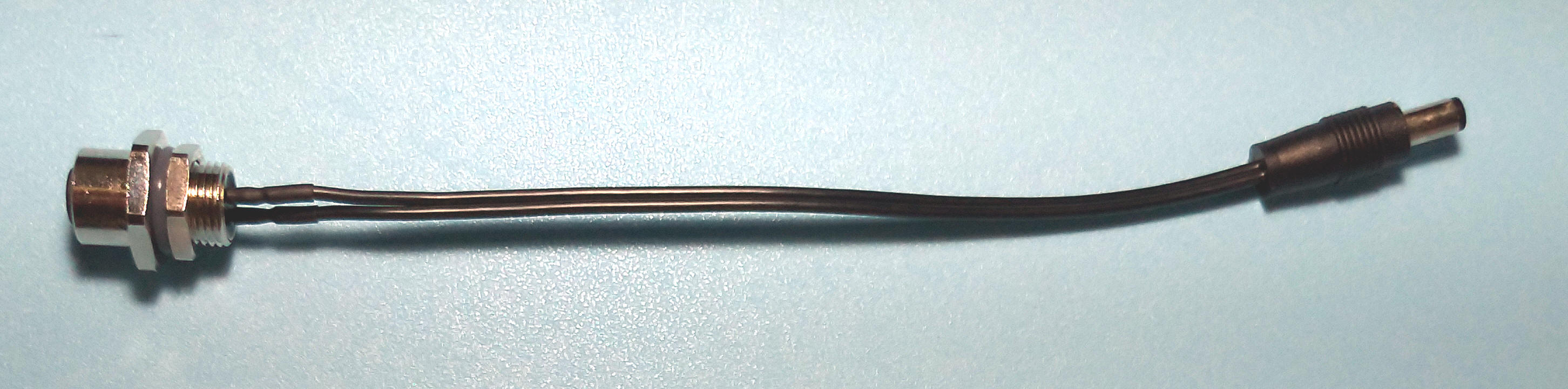

to DC

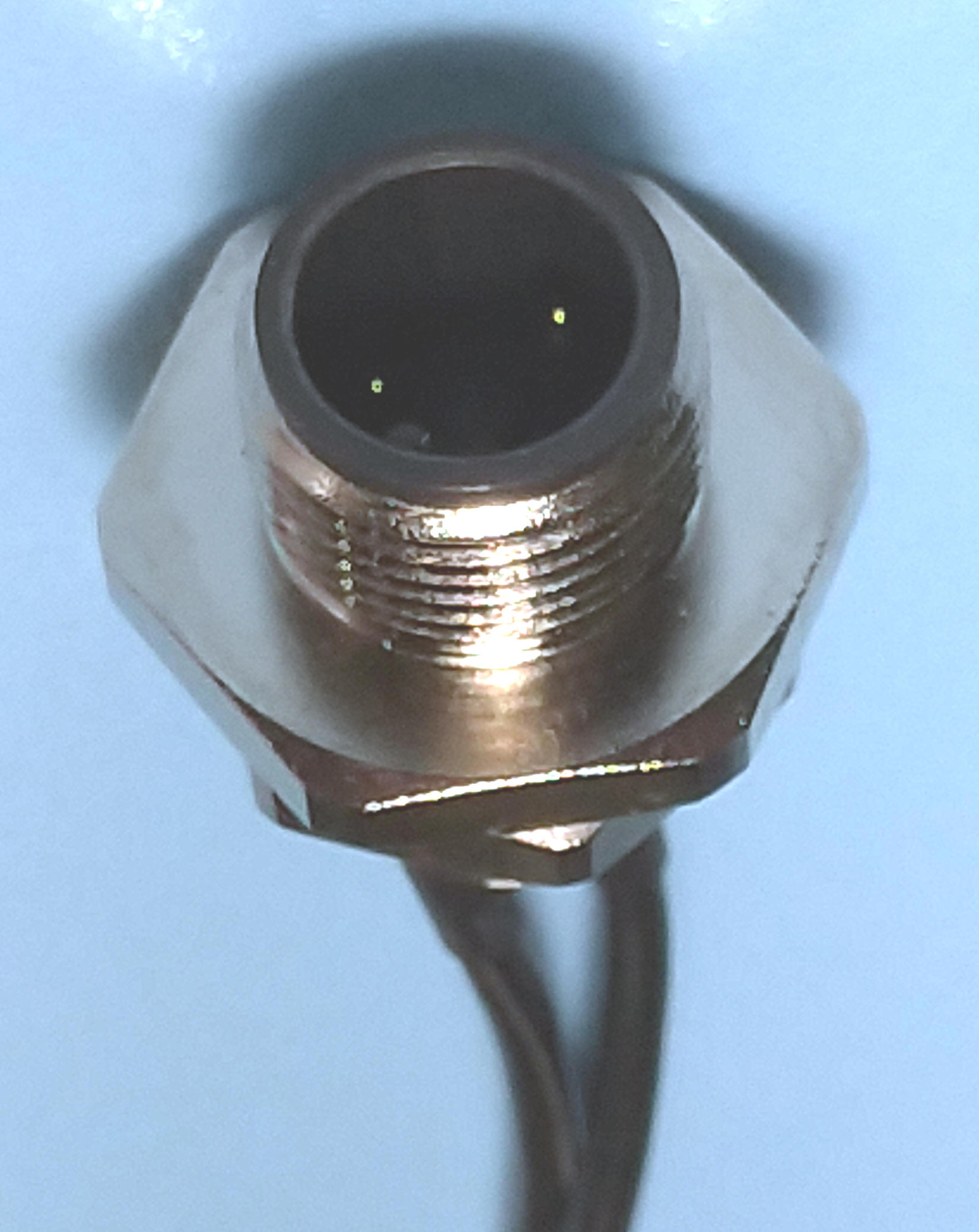

IOP-M12RF02-B-DCP01
_M12(RFP2)-M12-B-DCF2.1
1. M12 RFP2 to M12 to DC
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V

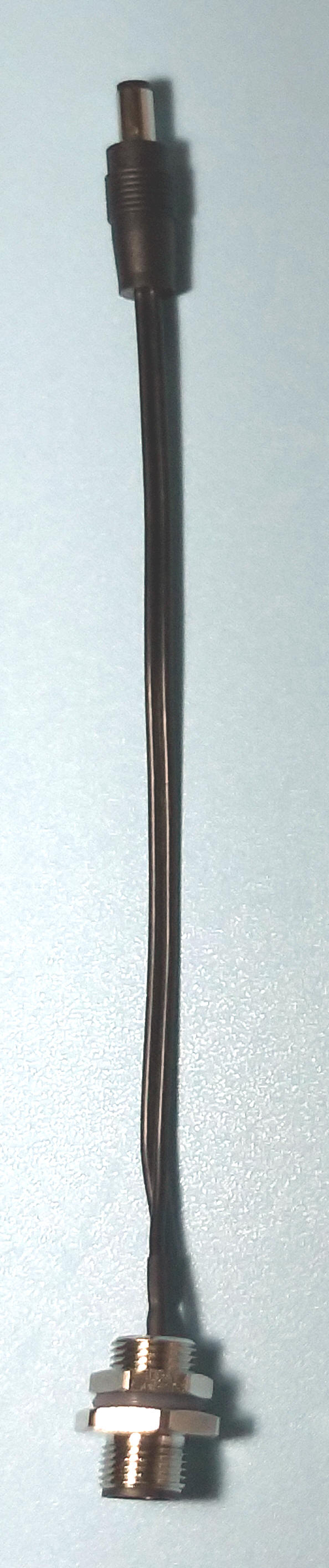

8 M12 to M12

to DC

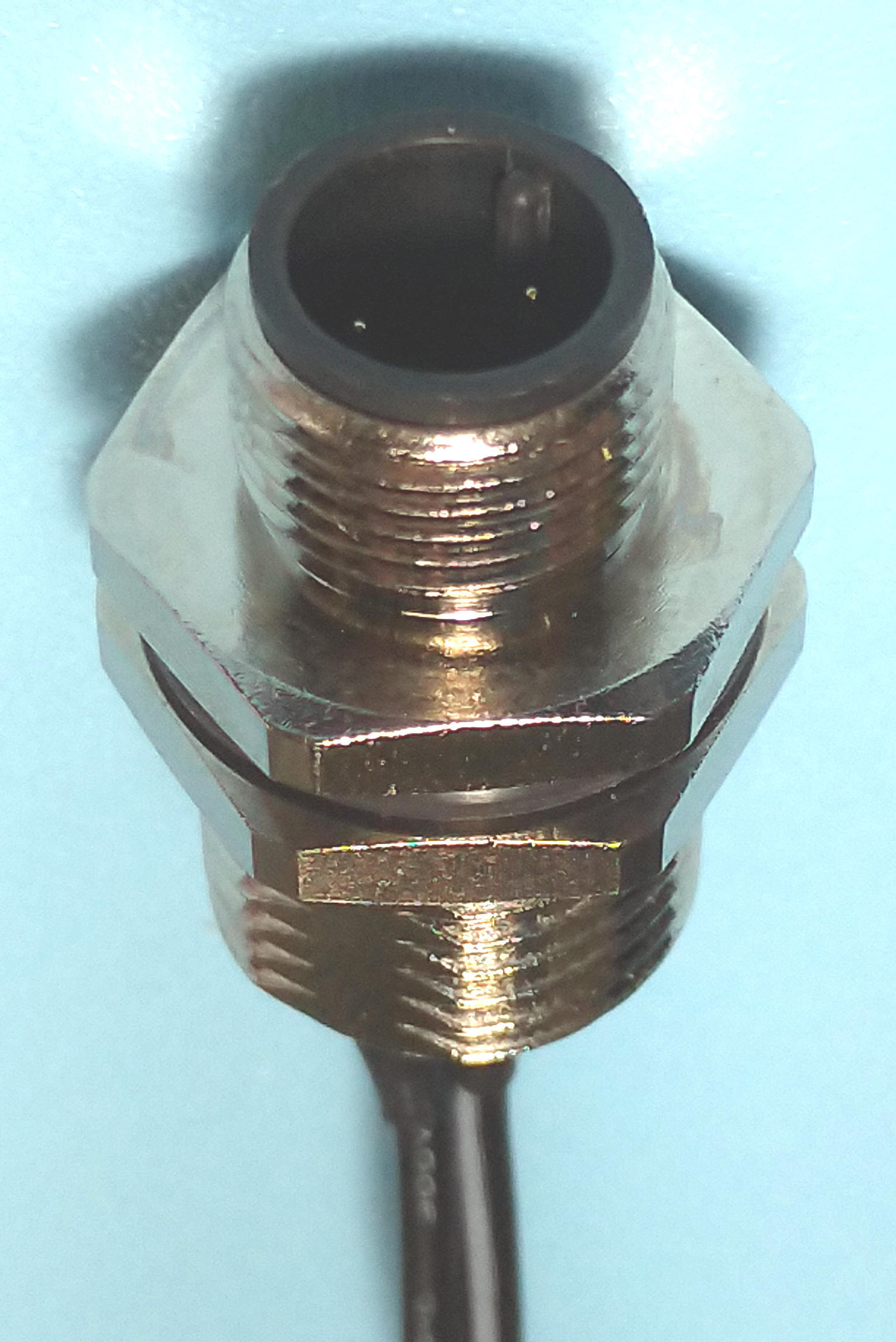

IOP-M12RM02-B-DCP01
_M12(RMP2)-M12-B-DCF2.1
1. M12 RMP2 to M12 to DC
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V

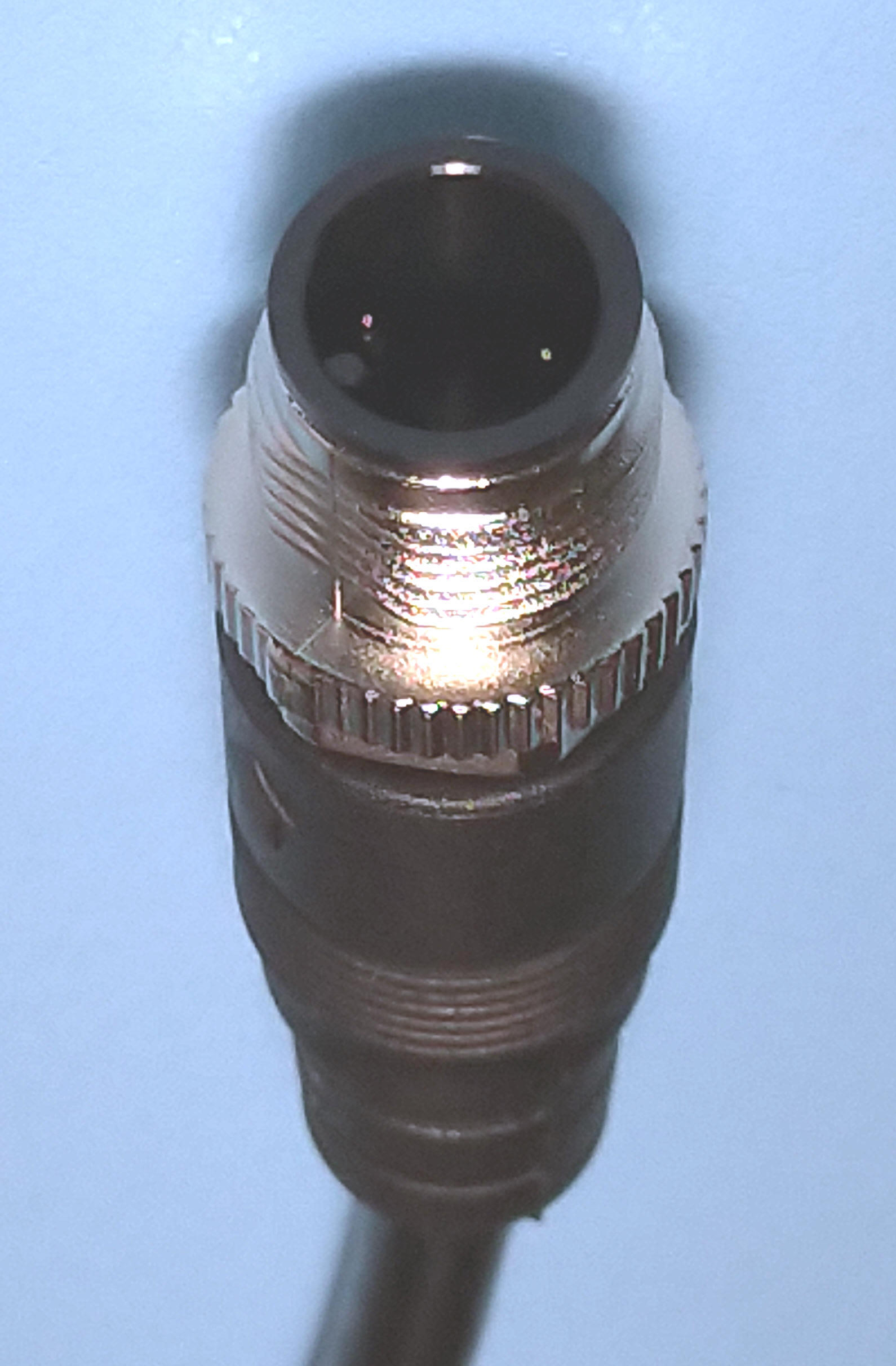

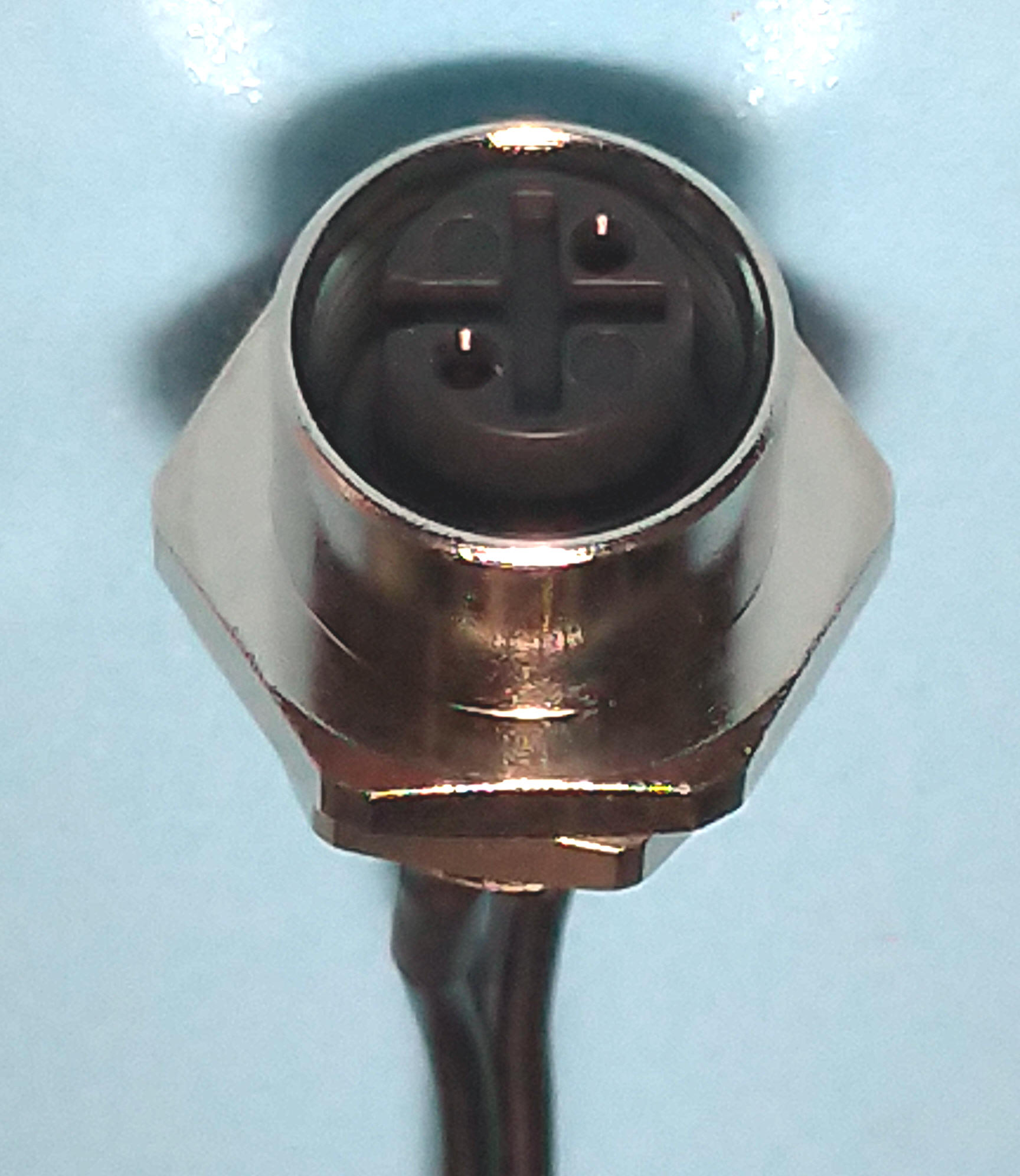

9 M12 to M12

to Line

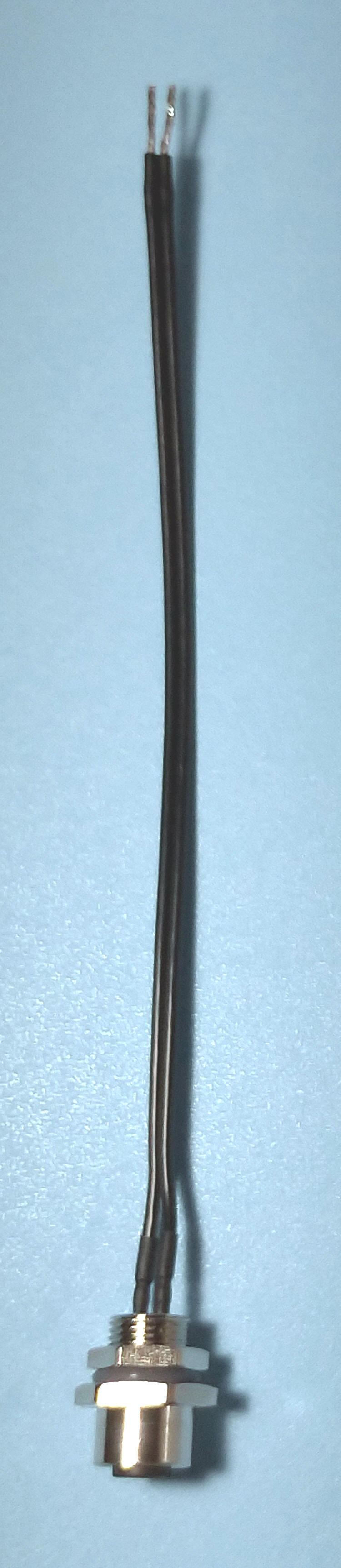

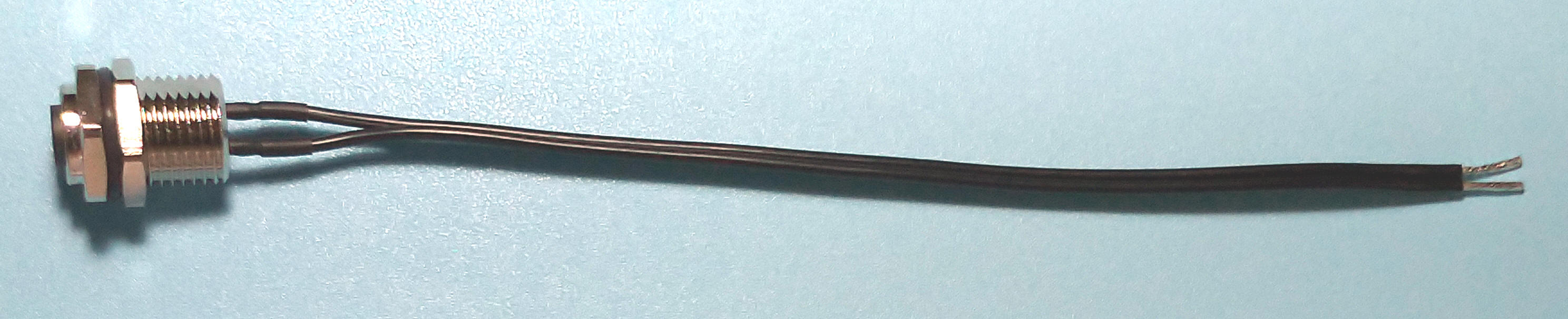

IOP-M12RF02-B-01
_M12(RFP2)-M16-B-01-L
1. M12 RFP2 to M12 to Line
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V

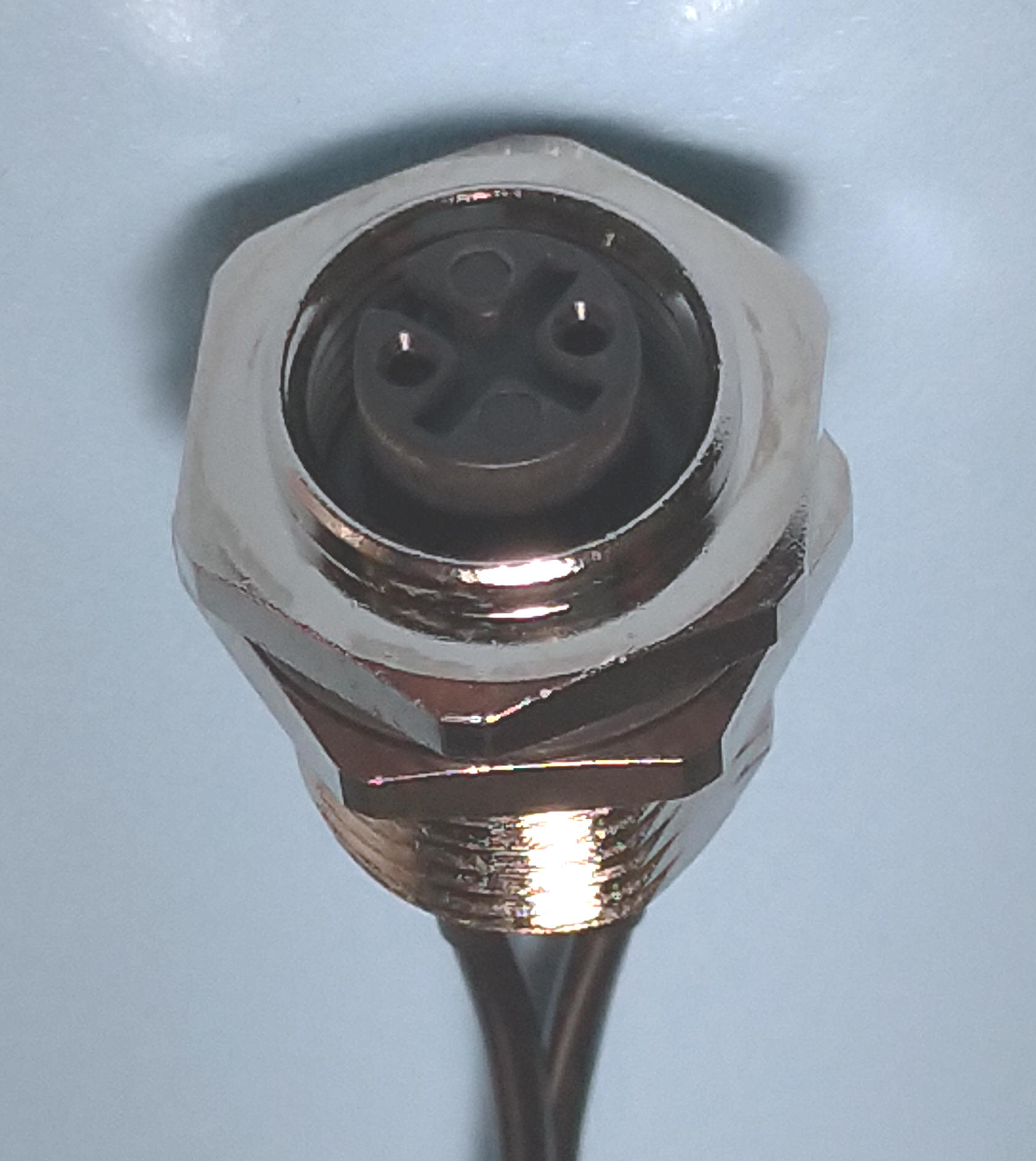

10 M12 to M16

to Line


IOP-M12RF02-A-01
_M12(RFP2)-M16-A-01-L
1. M12 RFP2 to M16 to Line
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V

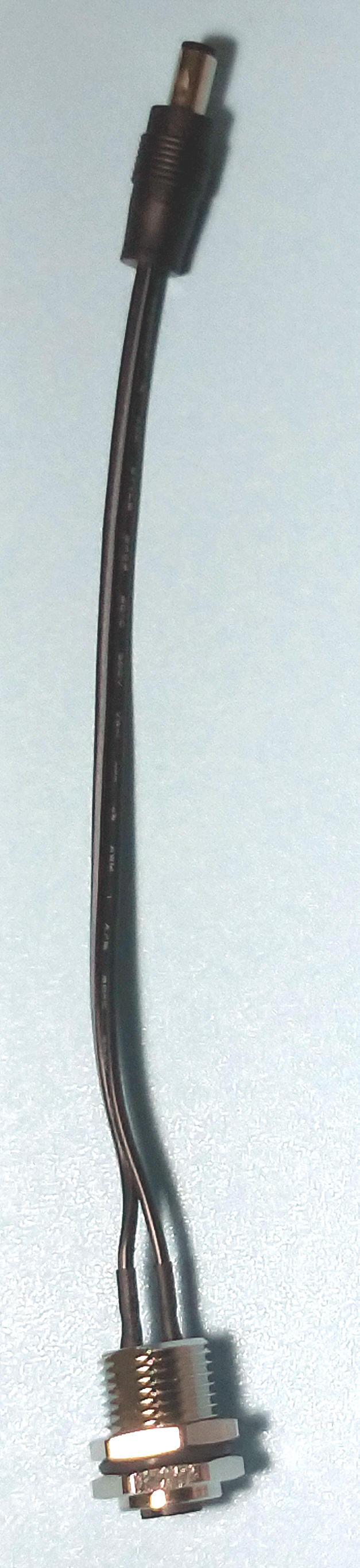

11 M12 to M16

to DC


IOP-M12RF02-A-DCP01
_M12(RFP2)-M16-A-DCF2.1
1. M12 RFP2 to M16 to DC
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V
12 M12 to M16

to DC

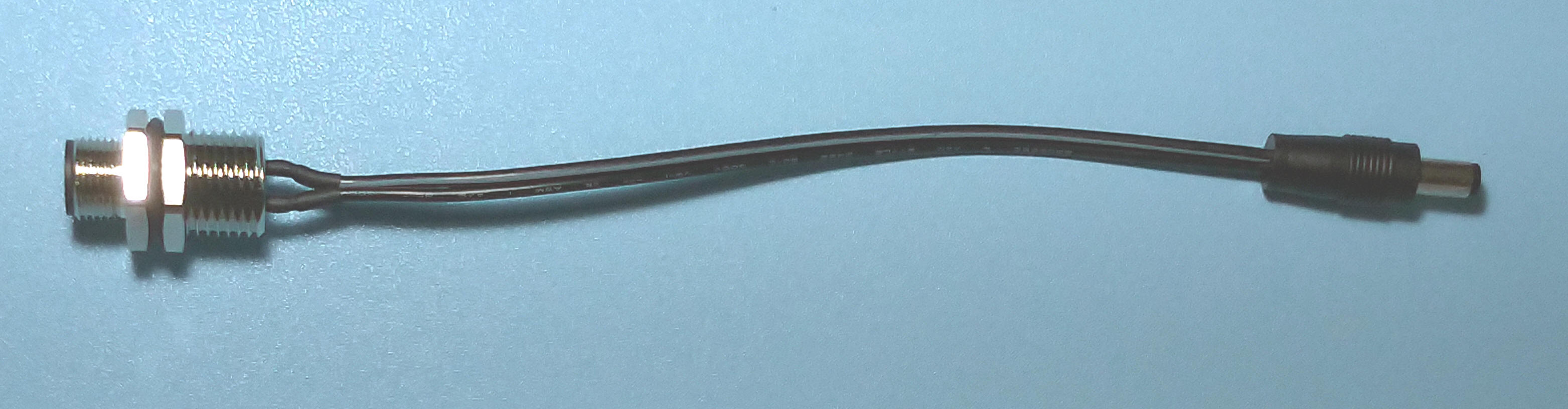

IOP-M12RM02-A-DCP01
_M12(RMP2)-M16-A-DCF2.1
1. M12 RMP2 to M16 to DC
2. 20CM
3. 18AWG
4. 12A
5. IP68
6. -20 ~ +80℃
7. 300V
13 Outside M12 to DC

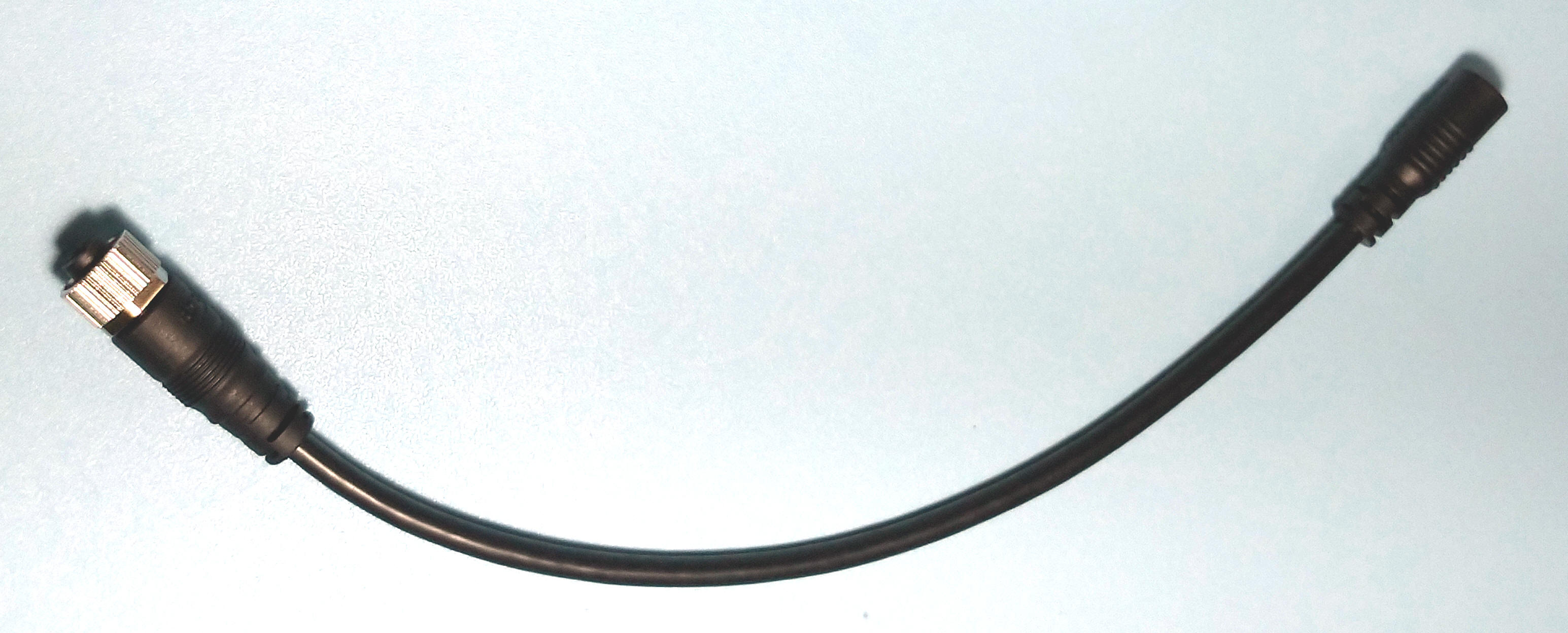

IOP-M12CF02-DCJ01
_M12(CFP2)-30CM-DCJ01
1. Outside M12 CFP2 to DC
2. 30CM
3. 18AWG
4. 12A
5. IP67
6. -20 ~ +80℃
7. 300V

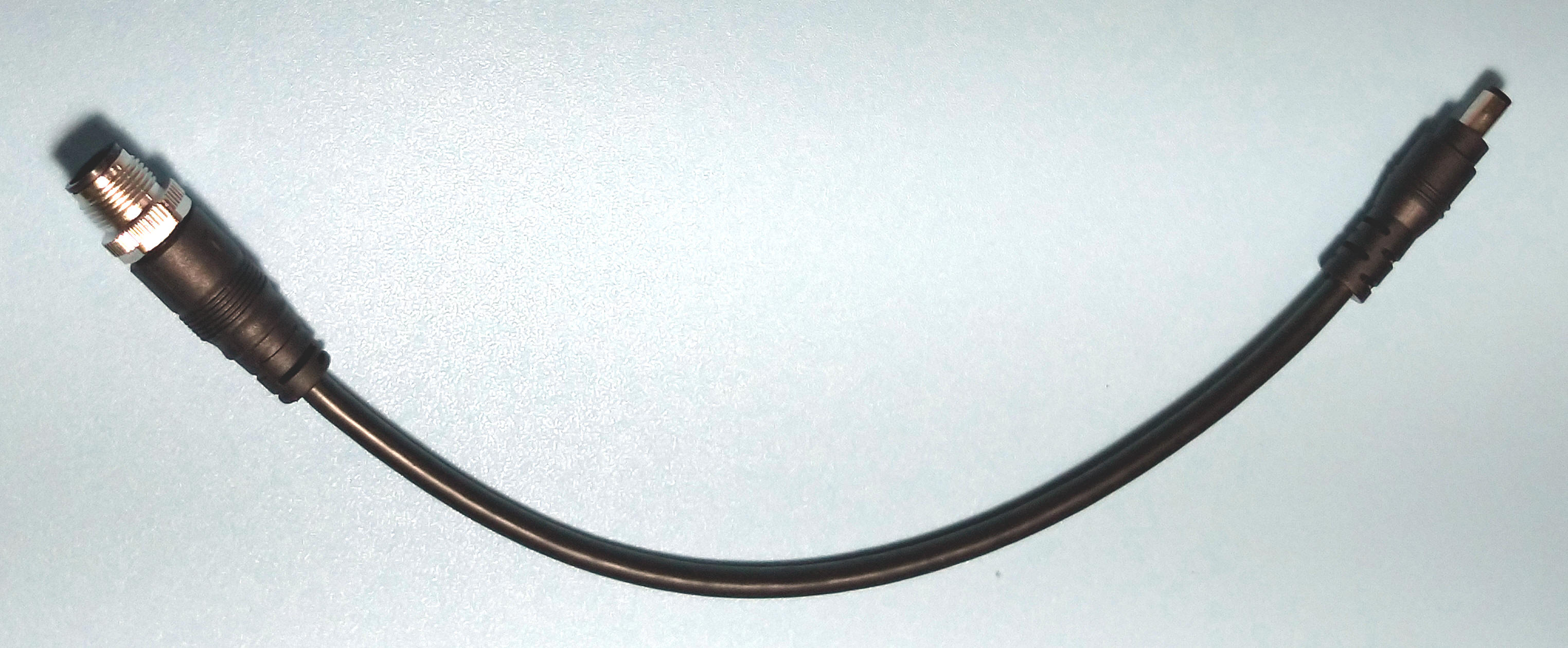

14 Outside M12 to DC

IOP-M12CM02-DCP02
_M12(CMP2)-30CM-DCP02
1. Outside M12 CMP2 to DC
2. 30CM
3. 18AWG
4. 12A
5. IP67
6. -20 ~ +80℃
7. 300V
15 Outside M12 to DC

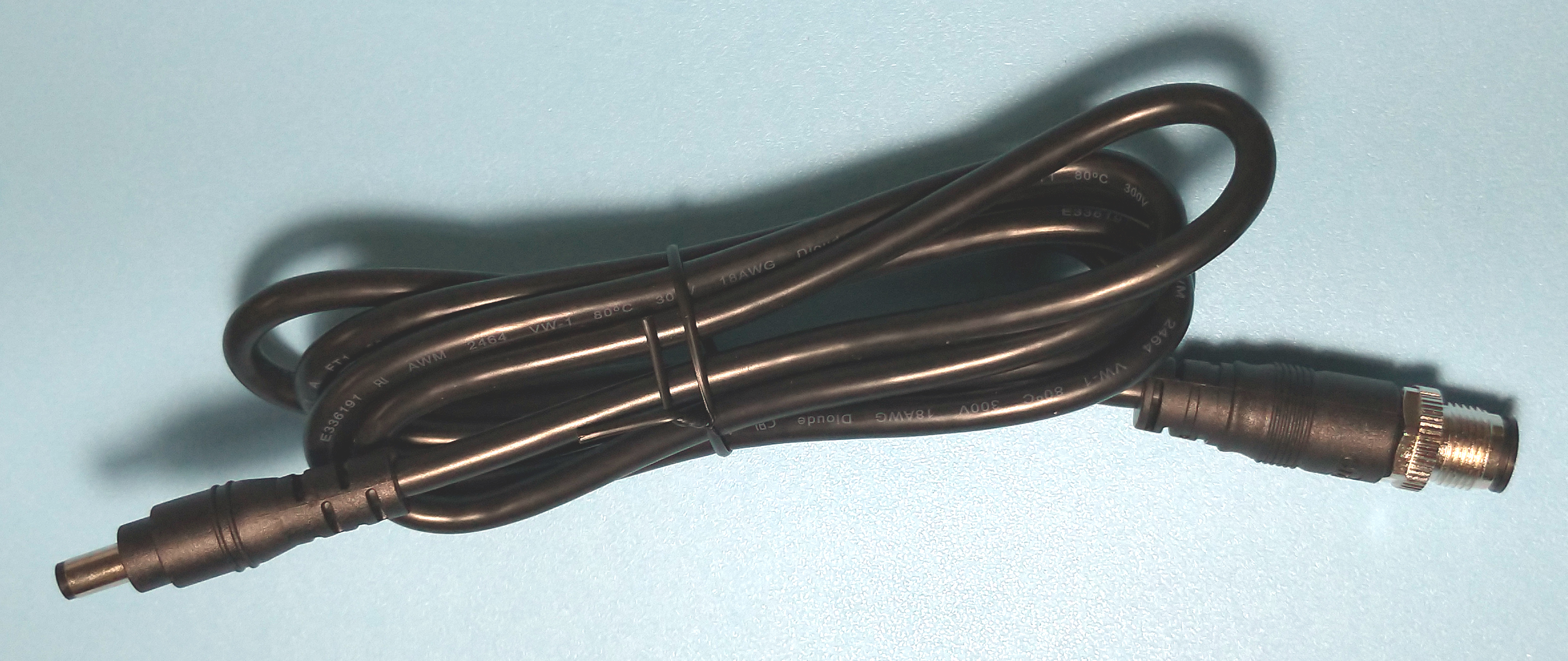

IOP-M12CM02-200CM-DCP01
_M12(CMP2)-200CM-DCP01
1. Outside M12 CMP2 to DC
2. 200CM
3. 18AWG
4. 12A
5. IP67
6. -20 ~ +80℃
7. 300V

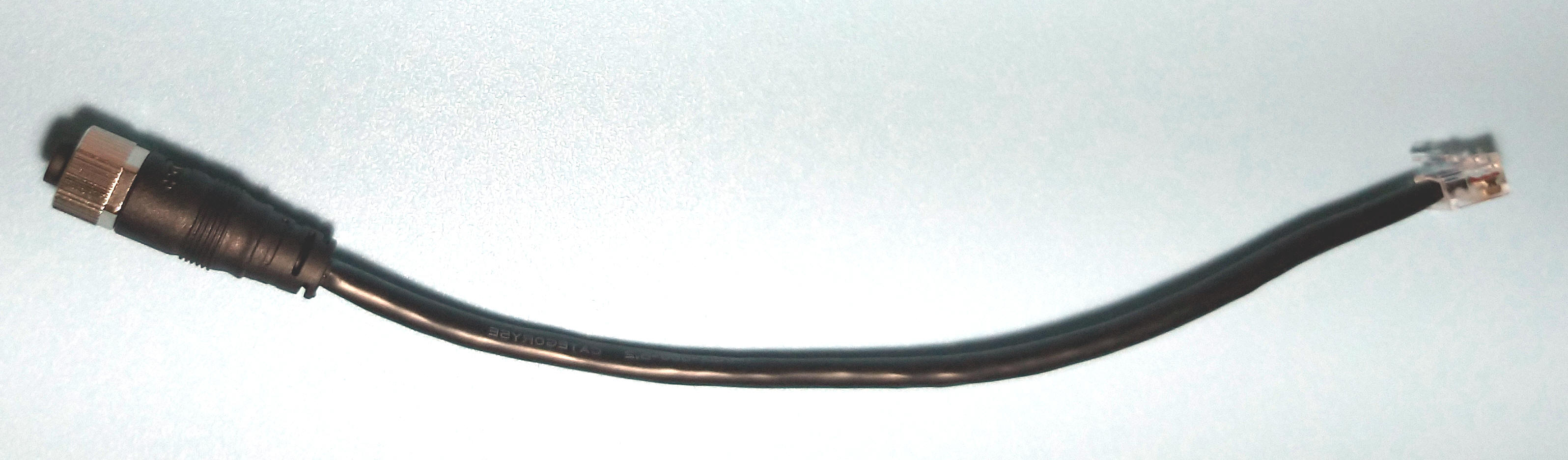

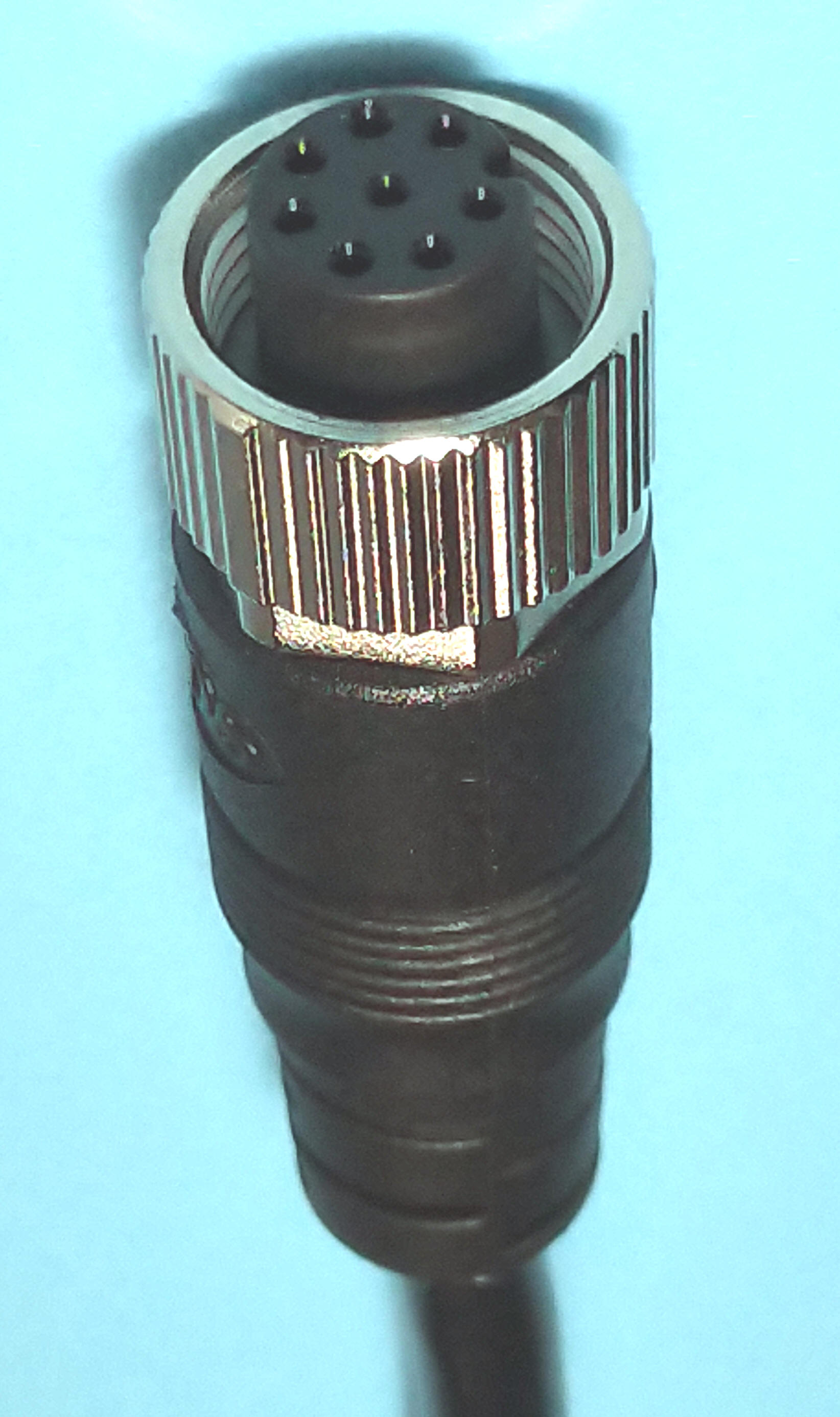

16 Outside M12 to RJ-45

IOP-M12CF08-RJP01
_M12(CFP8)-27CM-RJP01
1. Outside M12 CFP8 to RJ45
2. 27CM
3. 18AWG
4. 12A
5. IP67
6. -20 ~ +80℃
7. 300V

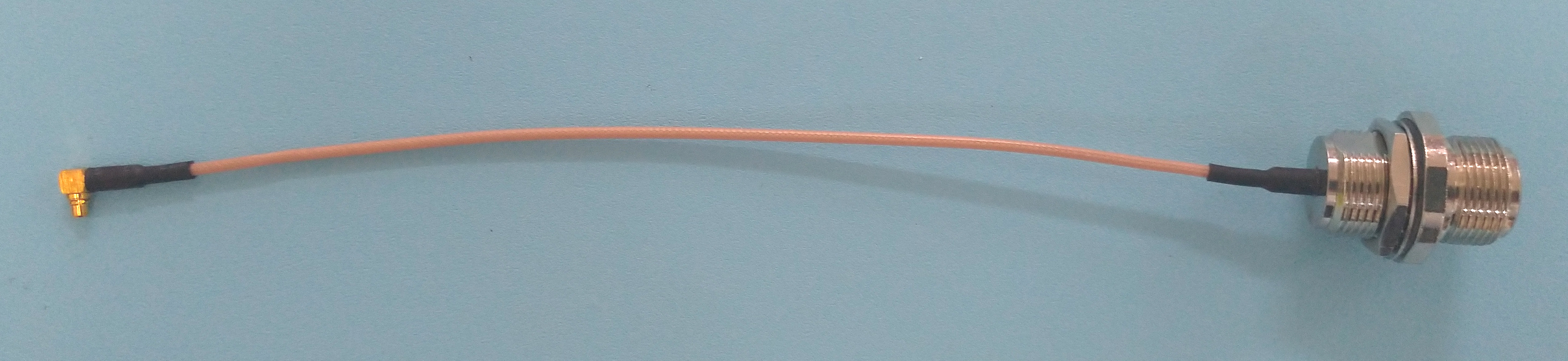

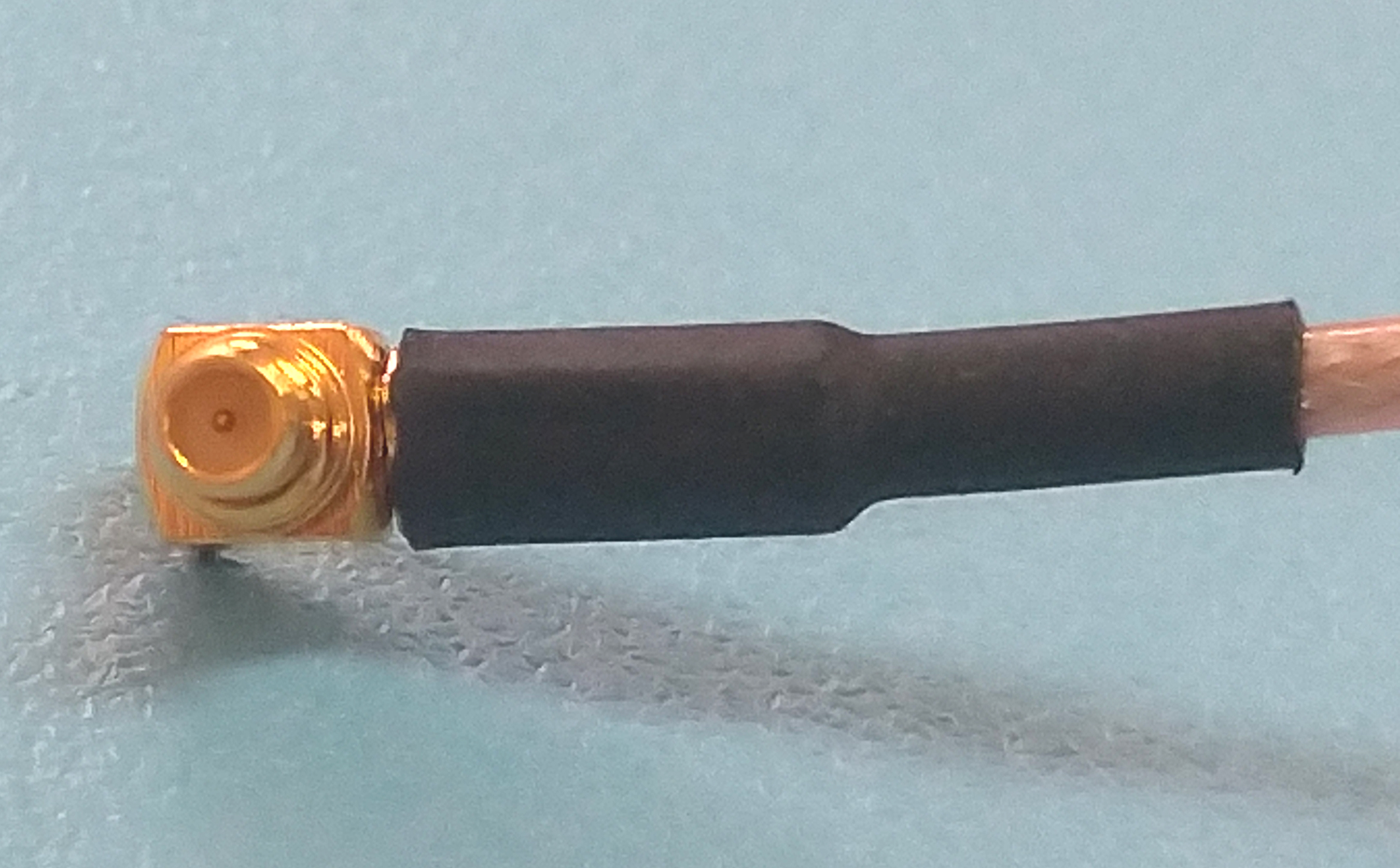

17 N-type to M16

to MMCX

IOP-NFMMC180-A-RG178_NTFD(180)-MMC-A-RG178 1. N-type Jack to M16 to MMCX
2.18CM
3. RG178
4. -30dB
5. IP68
6. -20 ~ +80℃
7. 16W

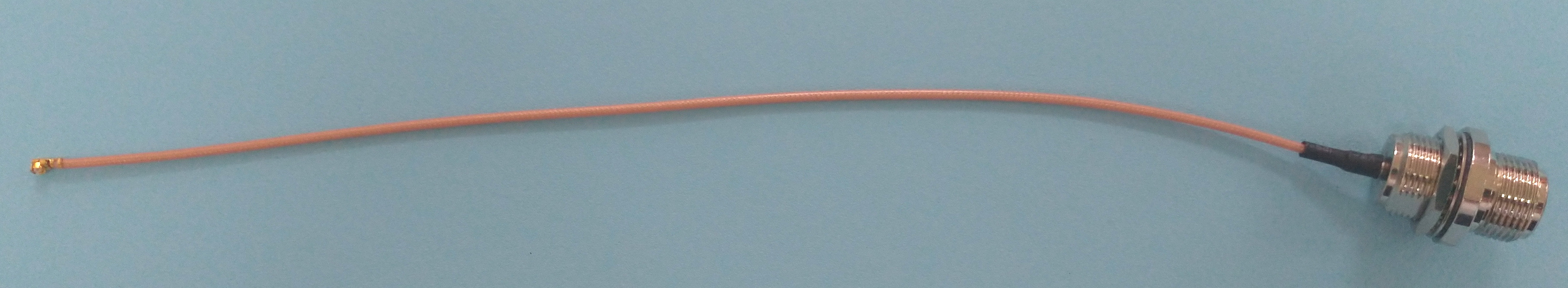

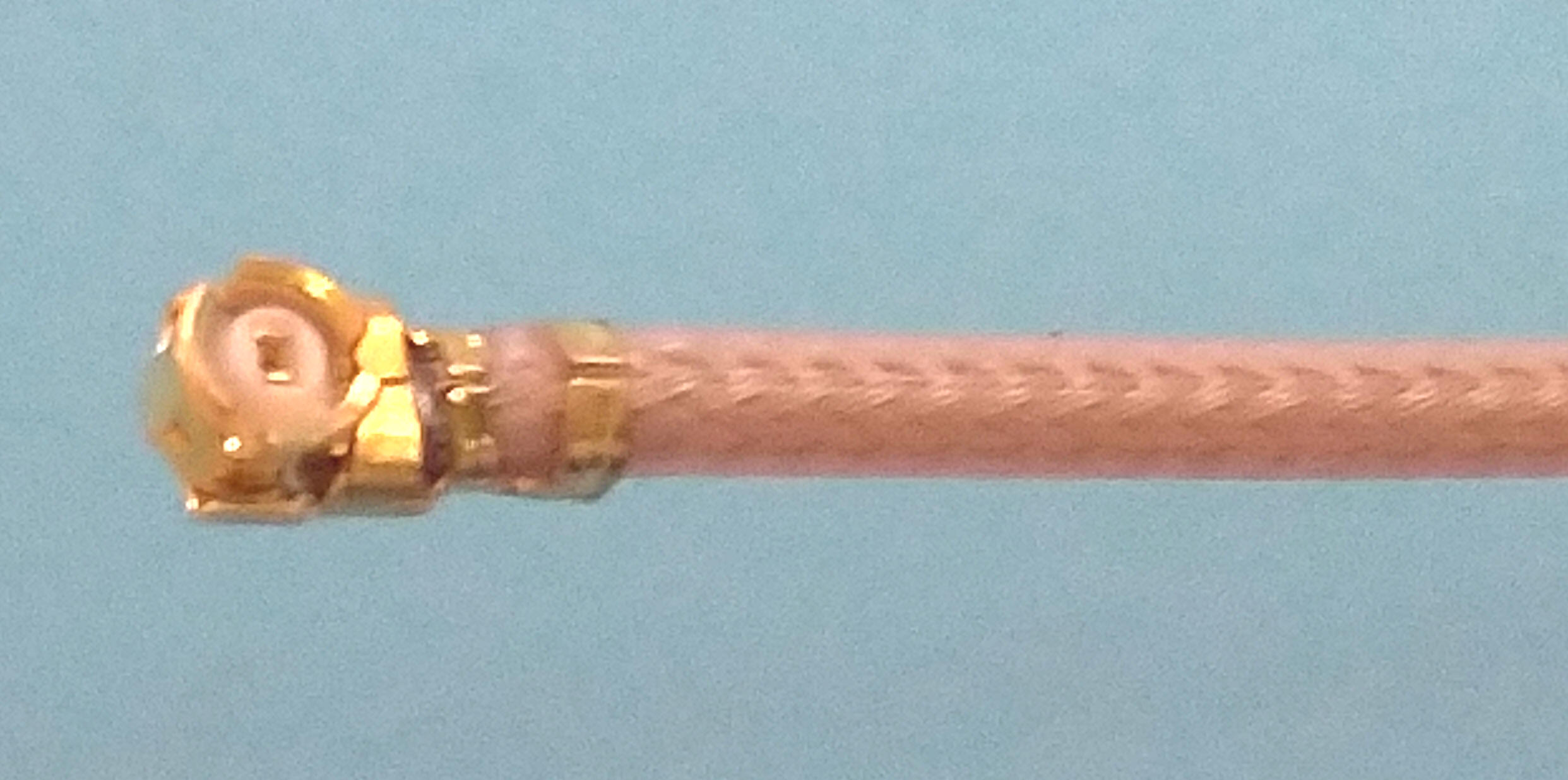

18 N-type to M16

to IPEX

IOP-NFIPE250-B-RG178_NTFD(250)-IPE-B-RG178 1. N-type Jack to M16 to IPEX
2.25CM
3. RG178
4. -30dB
5. IP68
6. -20 ~ +80℃
7. 16W

Welcome to consult OEM / ODM custom business cooperation!!





2019Q1 New Product (Pre-Data Sheet)

802.11a/g/agn/ac multiple relay hop platform hi-mobile backup functions

Outdoor WiFi MIMO Wireless Base Station

Model

Wireless module interface specification

Model RF quantity

IOP-MBAP-SAC1

802.11a/n/ac 5GHz single band 2x2 MIMO high power output 27dBm (500mW)

1

IOP-MBAP-SAC2

802.11a/n/ac 5GHz single band 2x2 MIMO high power output 27dBm (500mW)

2

IOP-MBAP-DAC1

802.11a/g/n/ac 2.4GHz & 5GHz Dual Band 2x2 MIMO output power 21dBm (125mW)

1

IOP-MBAP-DAC2

802.11a/g/n/ac 2.4GHz & 5GHz Dual Band 2x2 MIMO output power 21dBm (125mW)

2





802.11a/g/agn/ac multiple relay hop platform hi-mobile backup functions

Outdoor WiFi MIMO Wireless Base Station

Data Sheet Download

Taoyuan Agricultural Expo 2018wireless surveillance & video walkie-talkie and power detection control management implementation project

2018/04/03

Download : Wireless surveillance and video walkie-talkie and power detection control management implementation project EV1



Download : Wireless surveillance and video walkie-talkie

and power detection control management implementation project EV1



『Mobile PTP MESH wireless surveillance system』with

『Mobile 3G4G wireless router multi-WAN backup export』application design EV3_Price0



3G4G Mobile Cloud Surveillance System_EV 170220





Download : IO-Power C-LiFePO4 Lithium Batteries Discharge Watts Define

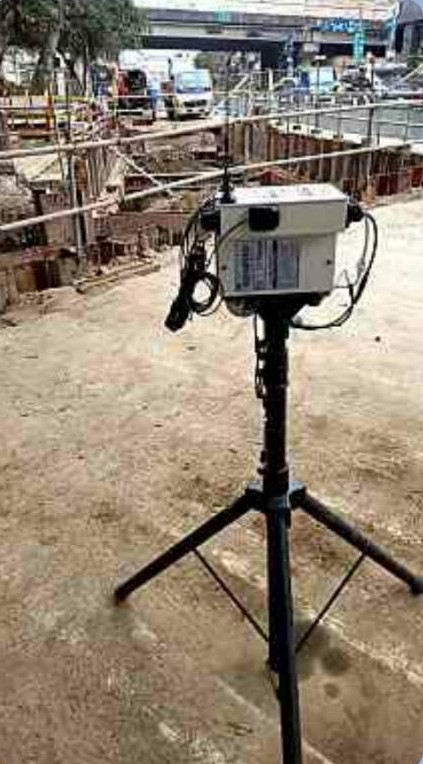

Outdoors 3G/4G wireless cloud surveillance & temporary mobile surveillance system

Real Outdoor Waterproof, Resistant to High Temperature 70 , Life Cycle more than 6 Years and Outdoor DC UPS Support Power Supply over 12Hrs - 130Hrs.

Should for "Fire site emergency ", "Emergency accident temporary ", " Illegal to deliver garbage", " Forest stealing the timber ", "Temporary activities ", "Construction site ", " Marathon road race activity "...and so on, to do mobile video record and cloud real time monitoring.

Integration Special Features:

n Cloud Network IR Camera

- Support 1.3 Mega Pixels network Camera and 20-meter infrared effect at night.

- Design of VPN network, simply enter your account number and password in advance online, without making any setting, you can make a cloud video monitoring and network real time monitor.

- If connected to the Internet network can perform remote control setting on a cloud.

- Site backups can used with NVR video recording, also can be used with NAS backend video management.

n The Cloud of Network Monitoring Platform Run Recording and Playback Features

- Only need connected to the Internet network, cloud platform will automatically perform the cloud video in real time.

- Only need connected to the Internet network, you can watch real-time video recording images from cloud platforms.

- Only need connected to the Internet network, you can remote control and playback video recording images from cloud platforms.

- The cloud record video type can select 7-day or 30-day cycle, covers the video replays and download access to your files.

n  Outdoor 3G/4G Wireless Router

- 3G/4G wireless, mobility and wireless advantage does not subject to space restrictions, particularly suitable for monitoring emergency and temporary needs.

- 3G wireless bandwidth up to 2Mbps, 4G the wireless bandwidth up to 8~18Mbps, can handle single or multiple cameras transmission needs.

- 3G/4G wireless router transfers, only need 3G/4G SIM card is inserted, without making any setting can online transferred right away.

n Outdoor Long-term DC UPS Power Supply System

- Power supply system with IP66 outdoor environment with 70 heat-resistant normal operation of more than 6 years of service life.

- Support for 12 hrs ~ 130 hrs outdoor power supply system (or connect online backup DC UPS to place an unlimited number of days), (based on the 3G/4G wireless video monitoring system in the cloud power calculations)

- Use large power consumption DC UPS type can supports eight cameras working at same time and large current fast-charge available in a short time (2-10 hours) full battery.

n  Magnet Match-Assembly Equipment and Easy Storage Tripod

- Portable mobility combined with the magnet change and free features such as adsorption of metal fixation, suitable for use in an emergency



Outdoor 3G/4G Wireless Cloud Surveillance System Demo

Dome Website: http://service.skywatch24.com/en/login

Account: io-power@io-power.com.tw

Password: 25081985





Indoor / Outdoor Long-term Model

Online Type Stability Voltage Uninterruptible Power System

12VDC Powered Distance Voltage Drop Test Report

No.

Battery Voltage

Test conditions

Distance

Transformers No Power Supply

Transformers Power Supply

Camera No Power Supply

Camera Power Supply

1.5M

47M

1.5+45
+0.5=47

55M

1.5+45
+1.5*5+1=55

63M

1.5+45
+1.5*10+1.5=63

71M

1.5+45
+1.5*15+2=71

Measuring Voltage

13.3V





13.3V

13.3V

13.29V

13.29V

13.28V

DC voltage difference distance less than the AC voltage difference from many (Consistent with the theory of electricity)

Measuring Voltage

13.2V





13.05V

12.44V

12.12V

11.74V

11.46V

Camera Operation











OK

OK

OK

OK

OK

Thread number not included in voltage reduction assessments

Measuring Voltage

13.2V





13.06V

12.5V

12.23V

11.9V

11.52V

Camera Operation











OK

OK

OK

OK

OK

Recommended 1:12VDC power supply within distance to 50M is good.
Recommended 2 distance after over 50M: 12VDC power supply, voltage after voltage drop is less than 12.3V, but because most of the cameras are operating within the range of 9V~16V, therefore can also be functioning properly.

 Download : 12VDC Powered Distance Voltage Drop Test Report file


I I I I I I

IO-Power Technology Co., Ltd. 1F, No.100, Jinzhu Rd., North Dist., Hsinchu City 30055, Taiwan, R.O.C.  Tel:+886 3 5429395 Fax:+886 3 5357297  E-mail:io-power@io-power.com.tw




Web Management Mail to  io-power@io-power.com.tw   Copyright (C) 2009 ~ IO-Power Technology Co., Ltd Last Upgrade:05.14.2020
